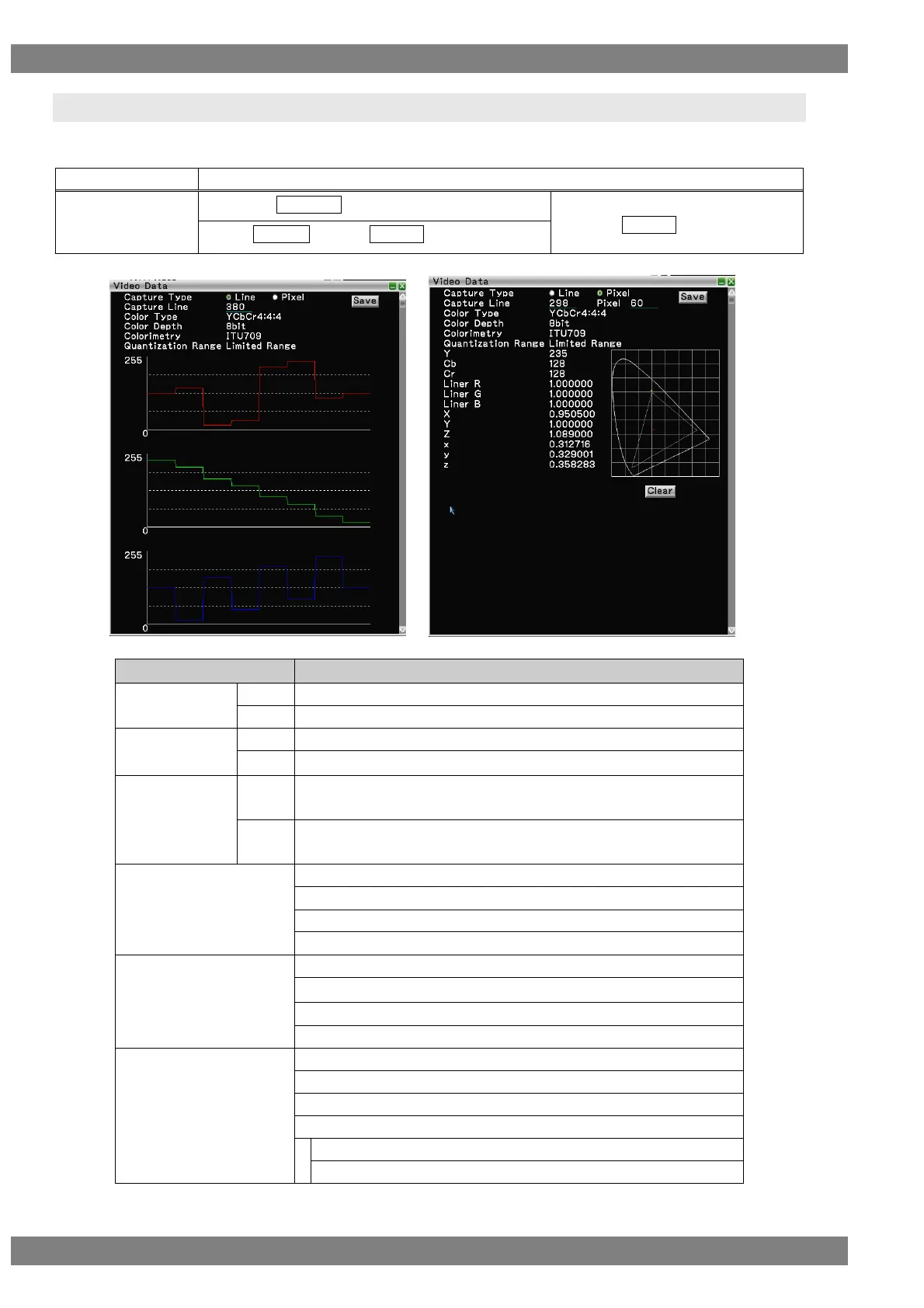

4.4 Video Data
Acquires the video data.
The display method is as follows.
Mouse operation
Right-click → left-click ANALYZE → left-click Video Data → wheel click over screen
Unit operation
Press the ANALYZE key.
→ press L CLICK over Video Data
Press R CLICK → press L CLICK over ANALYZE
Item
Description
Capture Type
Line
Acquires the video data of 1 line.
Pixel
Acquires the video data of 1 pixel.
Capture
Line
XXX
Pixel
XXX
Save
Line
Saves the RBG data and YCbCr data of 1 line set in Capture Line as
text data to the USB flash memory device.
Pixel
Saves the xyz data of 1 pixel set in Capture Pixel as text data to the
USB flash memory device.
Color Type
RGB
YCbCr4:2:2
YCbCr4:4:4
YCbCr4:2:0
Color Depth
8bit
10bit
12bit
16bit
Colorimetry
No Data
SMPTE 170M/ITU601
ITU709
EXT Colorimetry Valid
ｘｖYCC601
xvYCC709
