4.1.6 Vendor Specific InfoFrame
Decodes and displays Vendor Specific InfoFrame of the HDMI input.
With Vendor Specific InfoFrame, information about the 3D format and 4Kx2K is input.
The display method is as follows.
Mouse operation
Right-click → left-click ANALYZE → left-click Vendor Specific InfoFrame
Unit operation
Press the ANALYZE key.
→ press L CLICK over Vendor Specific
InfoFrame
Press R CLICK → press L CLICK over ANALYZE
Also, you can switch between HEX and GUI display by right-clicking over the window and then clicking HEX<-
>GUI.

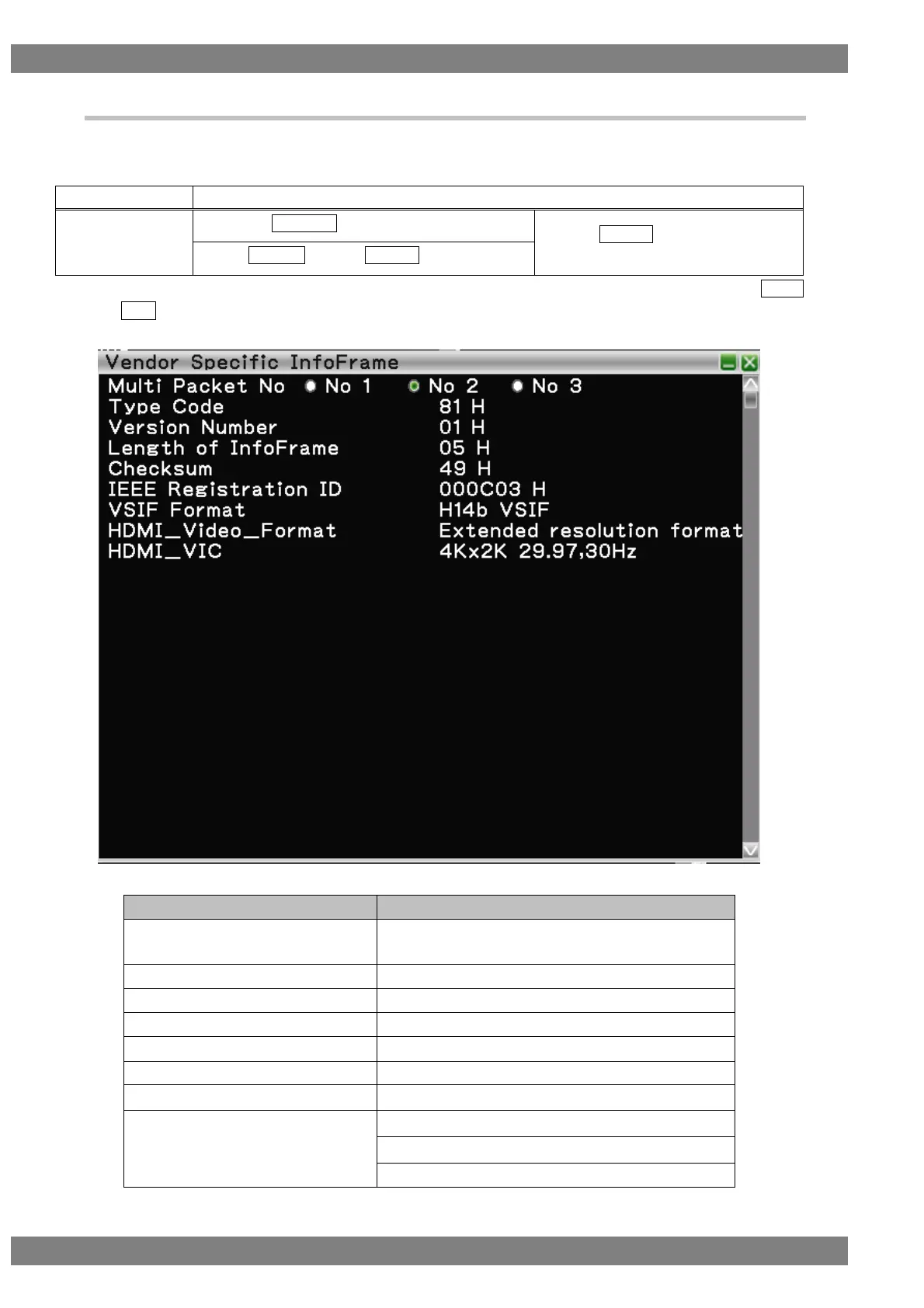

The Vendor Specific InfoFrame display items when GUI display are as follows.
Displayed item
Description
Status Change
Presence or absence of changing after pressing
"Clear"
Multi Packet No
No 1 / No 2 / No 3
Type Code
81 H
Version Number
XX H
Length of InfoFrame
XX H
Checksum
XX H
IEEE Registration ID
XXXXXX H
VSIF Format
H14b VSIF
HF-VSIF
Other
