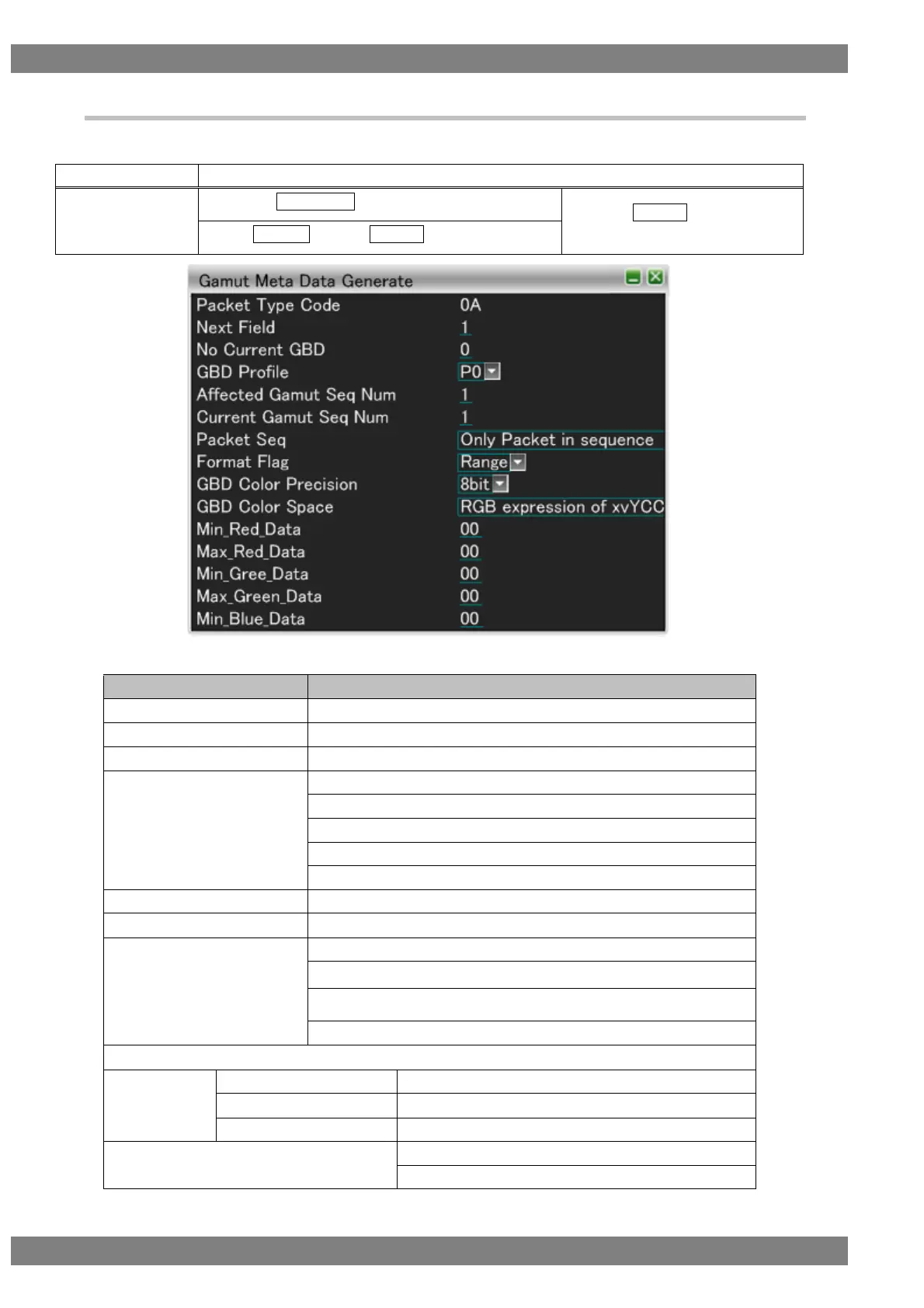

5.2.8 Gamut Meta Data Packet
Sets the Gamut MetaData Packet settings.
The display method is as follows.
Mouse operation
Right-click → left-click GENERATE → left-click Gamut MetaData Packet
Unit operation
Press the GENERATE key.
→ press L CLICK over Gamut
MetaData Packet
Press R CLICK → press L CLICK over GENERATE
Setting Item
Settings
Packet Type Code
0A H
Next Field
XX H
No Current GBD
XX H
GBD Profile
P0
P1
P2
P3
Reserved
Affected Gamut Seq Num
XX H
Current Gamut Seq Num
XX H
Packet Seq
Intermediate packet in sequence
First packet in sequence
Last packet in sequence
Only packet in sequence
GBD profile = P1 and Packet Seq = First packet in sequence
GBD Length H
XX H
GBD Length L
XX H
Checksum
XX H
Format Flag
Vertices/Facets
Range
