4.1.8 Gamut MetaData Packet
Decodes and displays Gamut Metadata Packet of the HDMI input.
For Gamut Metadata Packet, Gamut boundary descriptions (GBD) and other related metadata information are
input.
The display method is as follows.
Mouse operation
Right-click → left-click ANALYZE → left-click Gamut MetaData Packet
Unit operation
Press the ANALYZE key.
→ press L CLICK over Gamut
MetaData Packet
Press R CLICK → press L CLICK over ANALYZE
Also, you can switch between HEX and GUI display by right-clicking over the window and then clicking HEX<-
>GUI.

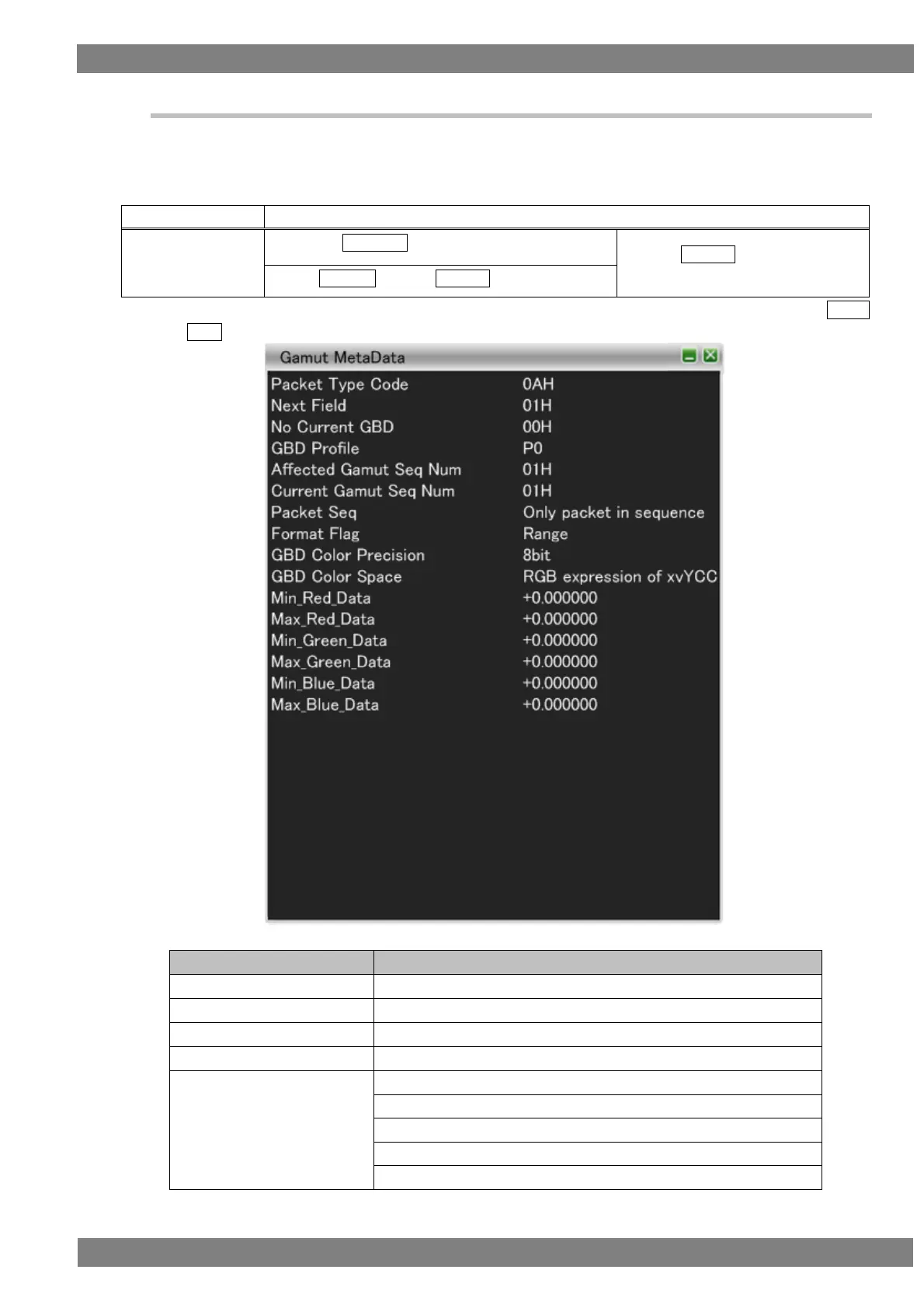

The Gamut Metadata Packet display items when GUI display are as follows.
Displayed item
Description
Status Change
Presence or absence of changing after pressing "Clear"
Packet Type Code
0A H
Next Field
XX H
No Current GBD
XX H
GBD Profile
P0
P1
P2
P3
Reserved
