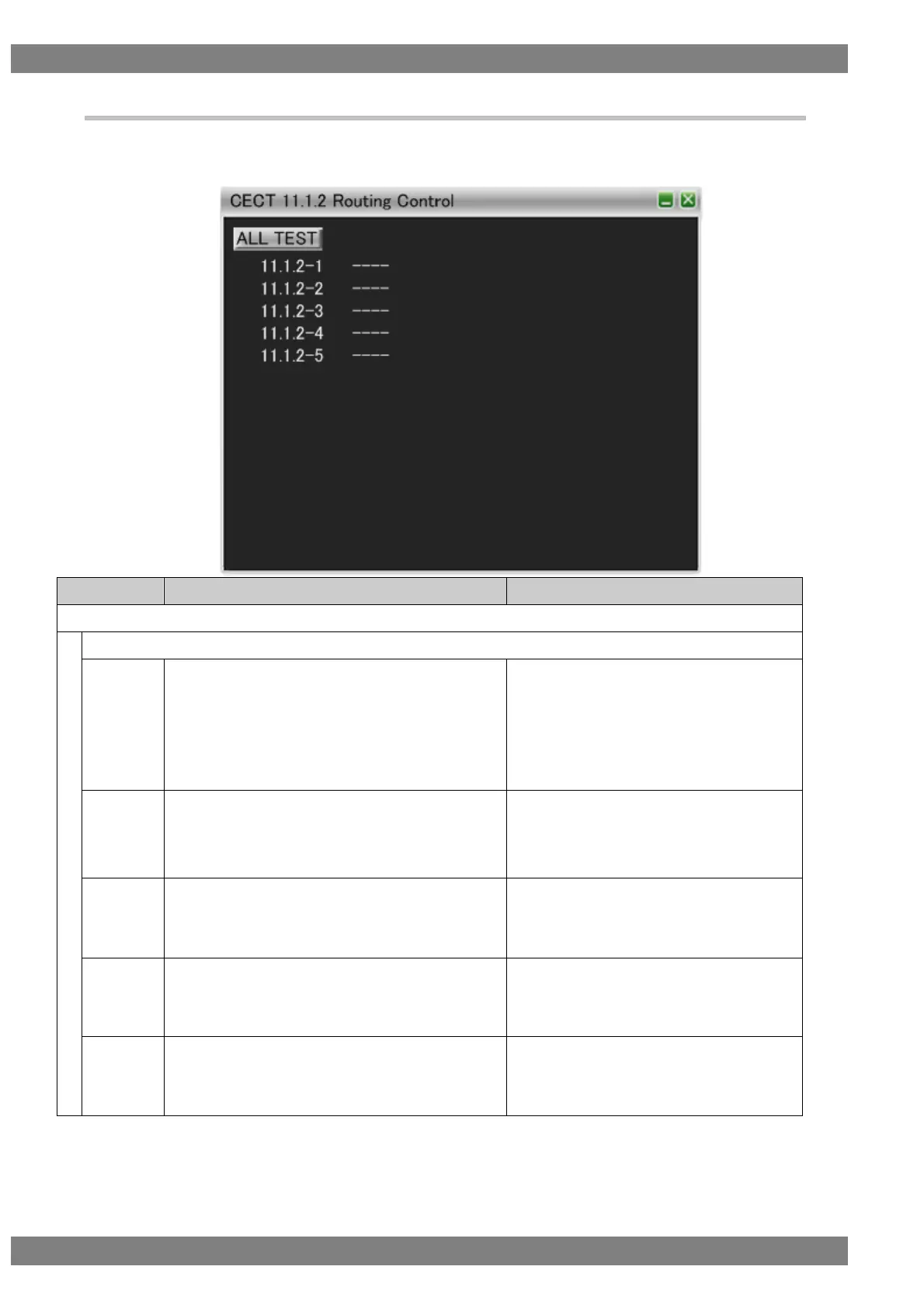

6.3.7 CECT 11.1.2 Routing Control
When “ALL TEST” is selected, the tests for the test IDs are started. When a test ID number is clicked with the
mouse, only the selected test is started. The procedures for the tests performed with the VA-1842 are shown
below.
Item
Test procedure
Pass criteria
Routing Control
Connect the HDMI input of the DUT (TV) to the HDMI output of the VA-1842.
11.1.2-1
Broadcast <Report Physical Address> [1.1.0.0] from
logical address 3.
Broadcast <Report Physical Address> [1.2.0.0] from
logical address 4.
If possible, select one of the devices from the DUT
menu.
DUT sends <Set Stream Path> to the correct
logical address.
11.1.2-2
Check that the DUT is displaying an internal source.
Broadcast <Active Source> indicating that another
device is active.
Broadcast <Request Active Source>.
DUT does not respond to <Request Active
Source>.
11.1.2-3
Check that the DUT is displaying an internal source.
Broadcast <Request Active Source>.
DUT responds to the <Request Active
Source> by broadcasting <Active Source>.
11.1.2-4
Broadcast <Active Source> [1.0.0.0].
Send <Inactive Source> [1.0.0.0] to the DUT.
DUT does not send <Feature Abort>.
11.1.2-5
Check that the DUT is switched to HDMI Input Port
1.
Switch the DUT manually to HDMI Input Port 2.
DUT broadcasts <Routing Change> [1.0.0.0]
[2.0.0.0].
