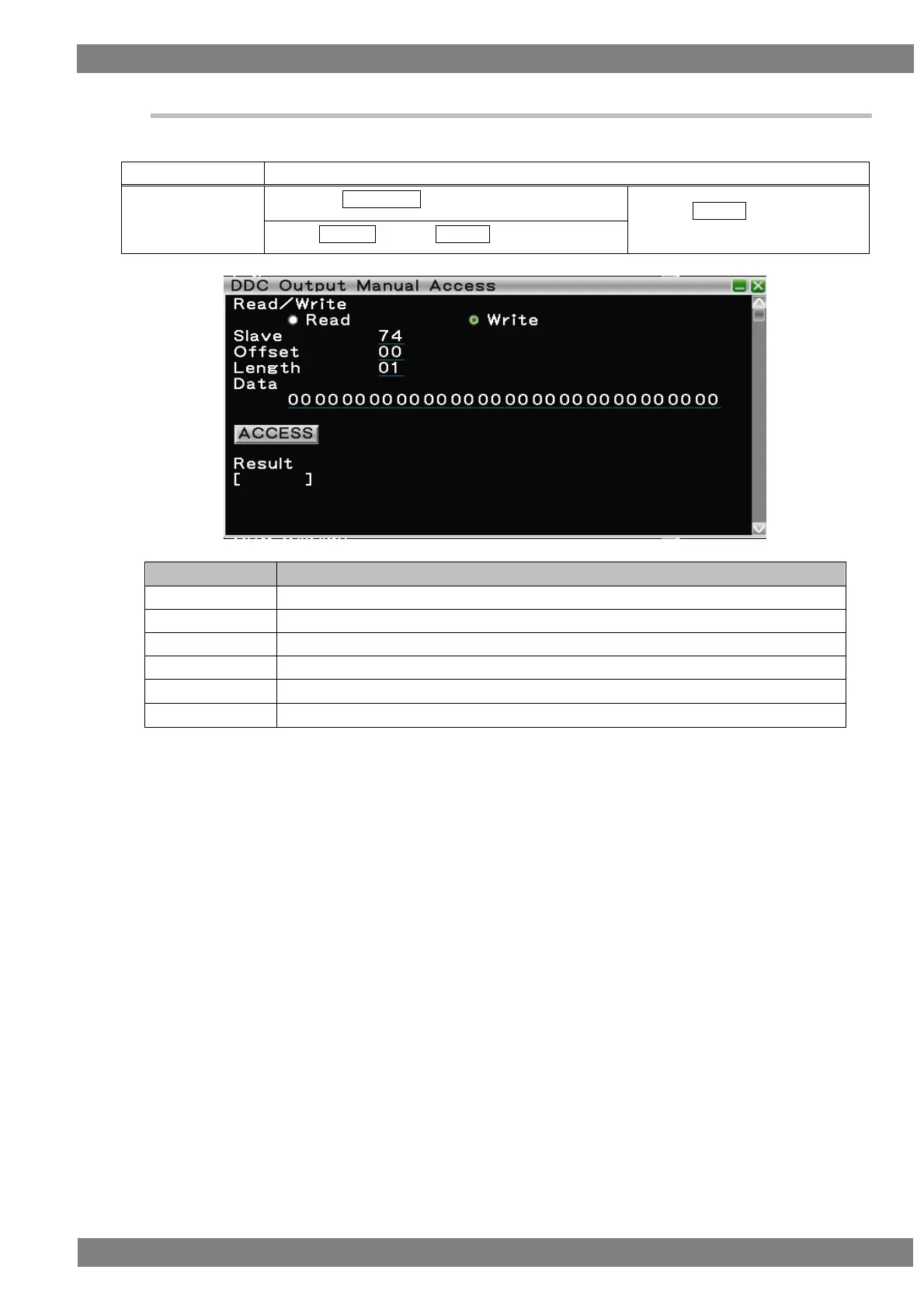

5.2.15 DDC Output
Performs I
2
C access on the HDMI sender side.
The display method is as follows.
Mouse operation
Right-click → left-click GENERATE → left-click DDC Output
Unit operation
Press the GENERATE key.
→ press L CLICK over DDC
Output
Press R CLICK → press L CLICK over GENERATE
Displayed item
Description
Read/Write
Sets read or write of I
2
C.
Slave
Sets the slave address.
Offset
Sets the offset address.
Length
Sets the length.
Data
Sets the data part of the above address.
ACCESS/Result
Clicking ACCESS displays the result of the set address for the Length portion in Result.
