6.4.2 HDCP1.4 CTS 1A

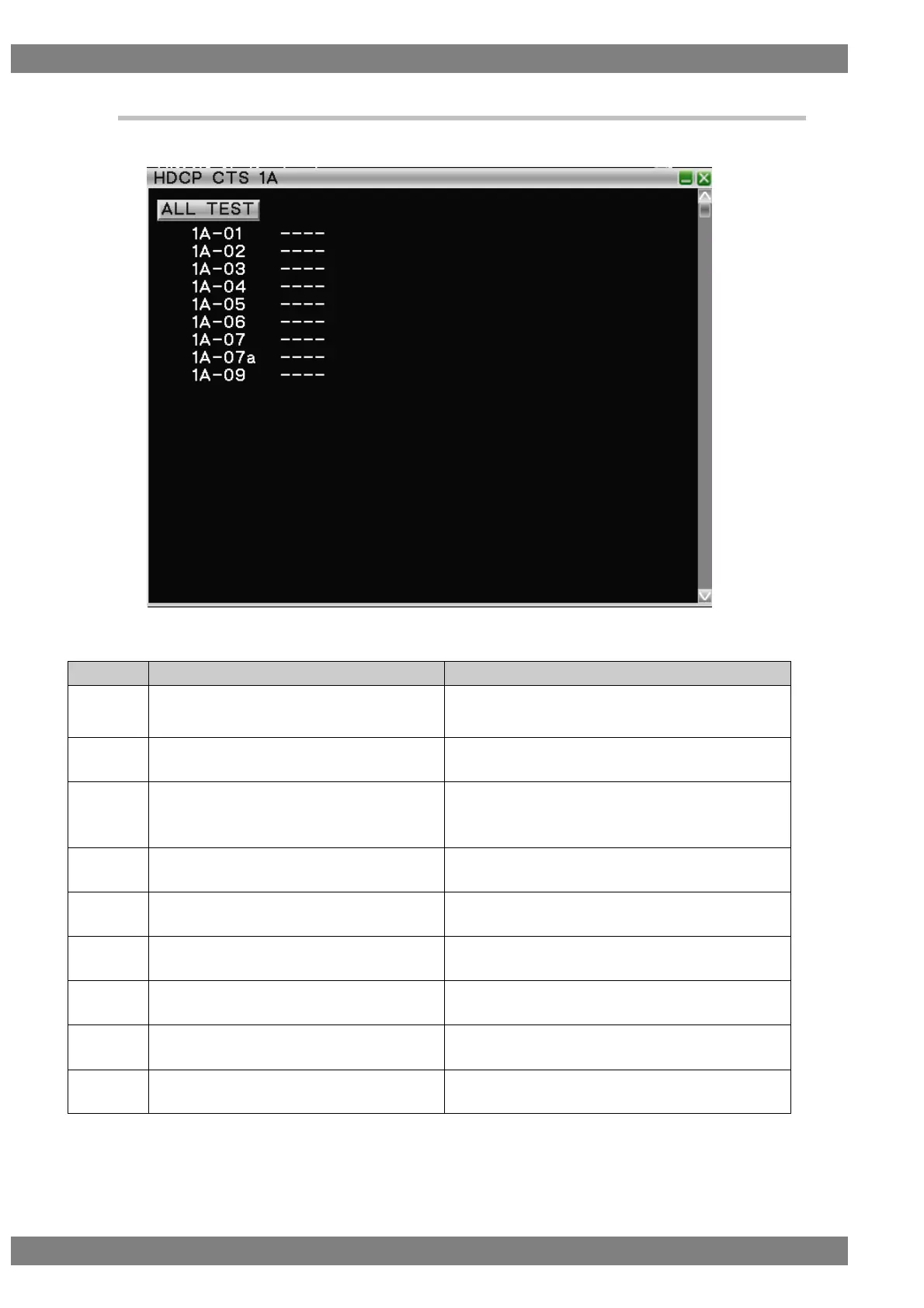

When a test ID number is clicked with the mouse, the selected test is started. While testing is in progress, the
settings required for the tests are set automatically. The following shows the test list.
Test list
TEST ID
Name
Description
1A-01
Regular procedure: With HDMI-capable
Receiver
Performs a check of the HDCP protocol for when a
receiver is connected to the DUT.
1A-02
Regular procedure: HDCP_HPD after writing
Aksv
Performs a check of the HDCP protocol for when
HDCP_HPD occurred after sending Aksv.
1A-03
Regular procedure: HDCP_HPD after starting
third part of authentication
Performs a check of the HDCP protocol for when
HDCP_HPD occurred after starting the third part of
authentication.
1A-04
Irregular procedure: (First part of
authentication) HDCP port access
Performs a check of the HDCP protocol for when
HDCP port access is disabled.
1A-05
Irregular procedure: (First part of
authentication) Verify Bksv
Performs a check of the HDCP protocol for when an
invalid Bksv is returned.
1A-06
Irregular procedure: (First part of
authentication) Verify R0’
Performs a check of the HDCP protocol for when an
invalid R0’ is returned.
1A-07
Irregular procedure: (Third part of
authentication) Verify Ri’
Performs a check of the HDCP protocol for when an
invalid Ri’ is returned.
1A-07a
Irregular procedure: (Third part of
authentication) Verify return of Ri’
Performs a check of the HDCP protocol for when a
read of Ri’ cannot be performed.
1A-09
Regular procedure: With DVI Receiver
Performs a check of the HDCP protocol for when a
DVI device is connected.
