Printer Maintenance
Rev A 187 BBP
®
35/37 User’s Manual

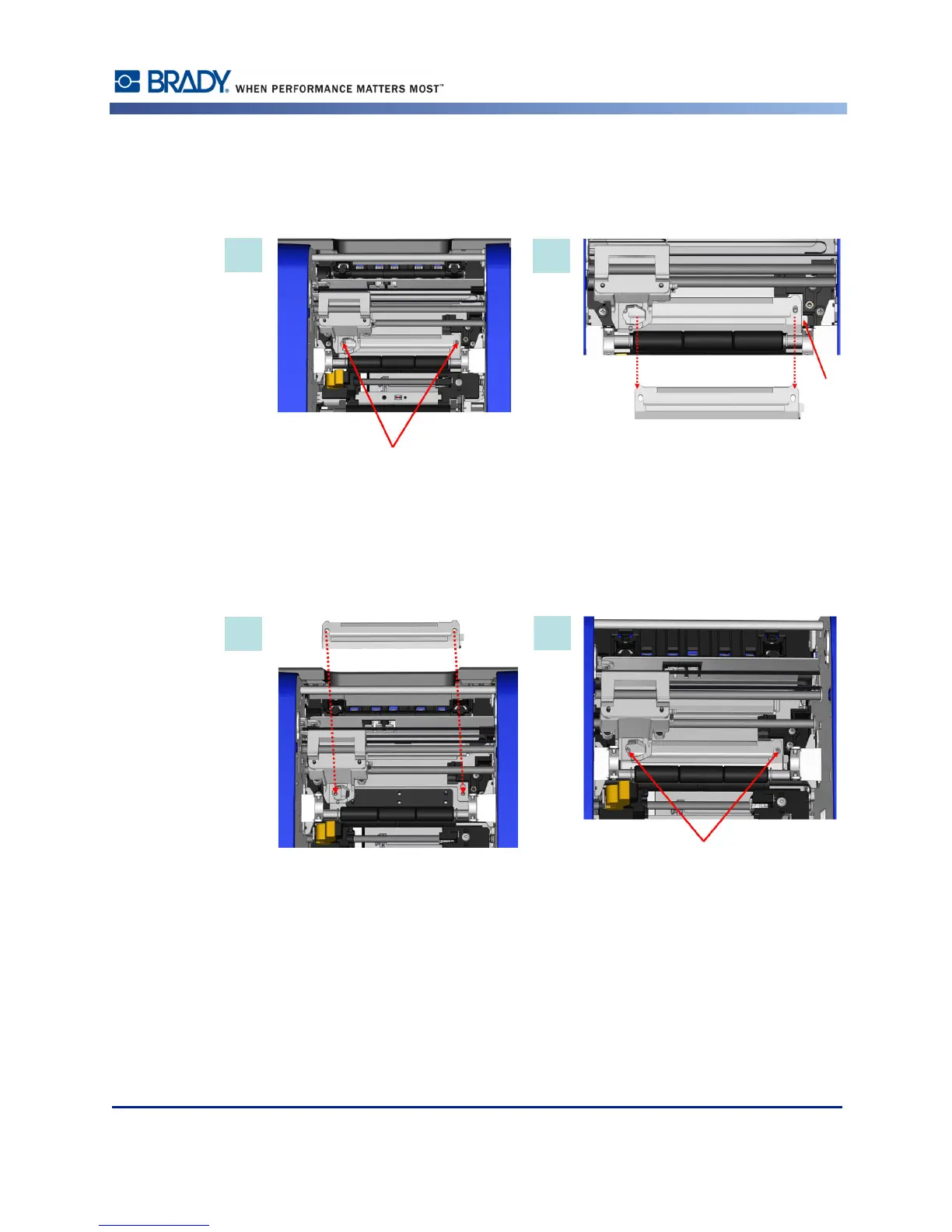

6. Remove the cut pad screws.
7. Gently pull up on the tab to loosen the cut pad, then swing the cut pad out from underneath
the XY cutter carriage to remove it
8. Use a moistened wipe from the cleaning kit to clean the cut pad.
To reinstall the cut pad and upper guide:
9. Tuck the left edge of the cut pad underneath the cutter module carriage, then swing the
right edge back into place, lining up the holes for the screws.
10. Re-insert the two screws into the aligned holes and tighten.
