Brother CS5055PRW User Manual

3 - 57
Main parts
Application of Assembly
Application

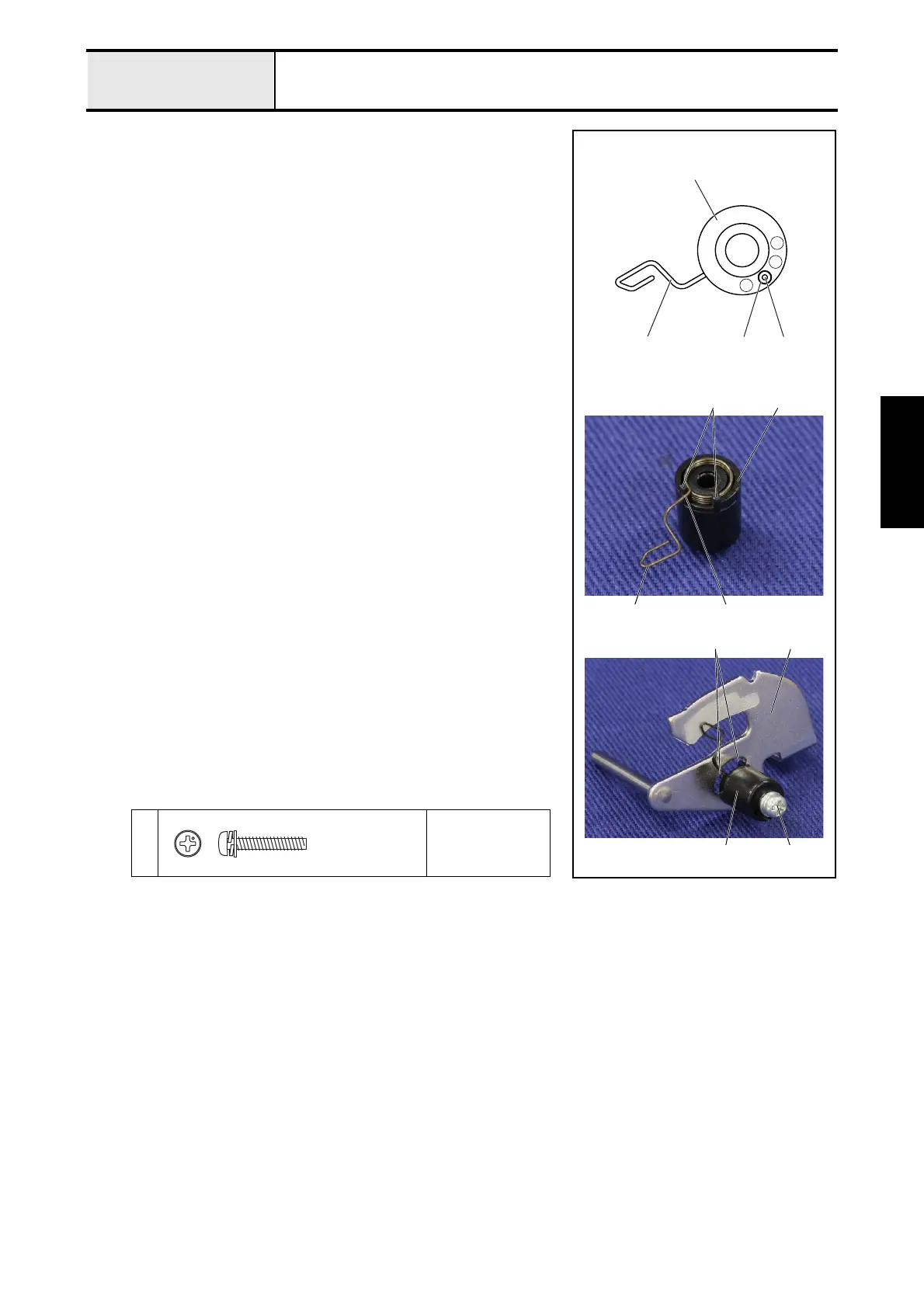

2-13-1Assembly of Thread take-up holder B
1. Set the thread take up spring 1 to the thread catching spring case 2.
*Key point
• Insert the section 3 of the thread take up spring 1 into the
hole 4 of the thread catching spring case 2.
• Check that there is the section 5 of the thread take up spring
1 in between the 2 ribs 6 of the thread catching spring case
2.
2. Set the thread catching spring case 2 to the thread take-up holder B 7
with the screw 1.
*Key point
• Check that align the 2 ribs 6 of the thread catching spring
case 2 with the elongate hole of the thread take-up holder B
7.
1
Torque
0.29 – 0.49 N·m
2
1
43
2
1
6
5
7
1
6
2
Screw, Pan (S/P washer)
M3X18
