Brother CS5055PRW User Manual

3 - 49
Main parts
Application of Assembly
Application

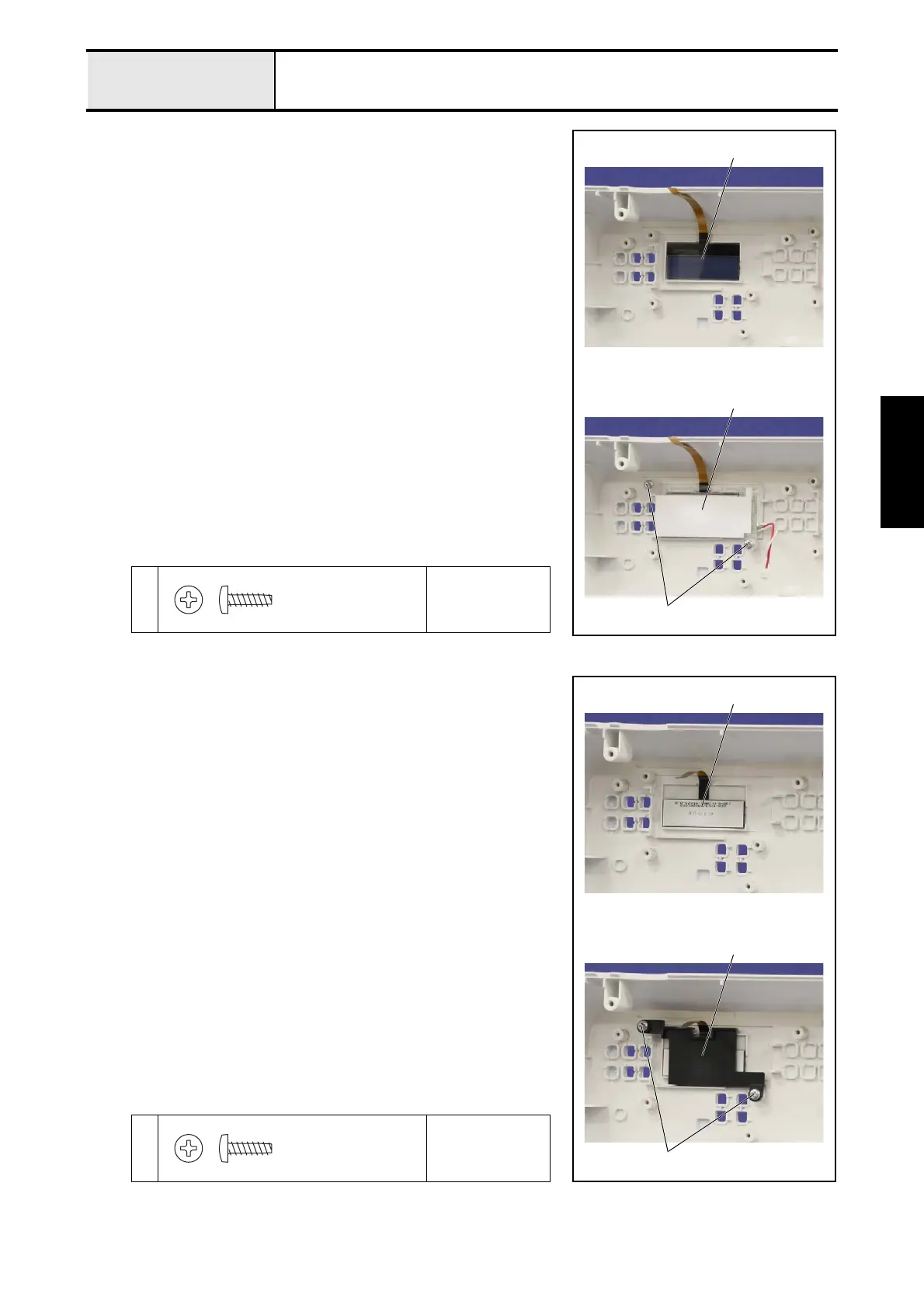

2-6 Attachment of LCD
2-6-A “Square shape model” equipped with LCD backlight
1. Set the LCD 1 to the front cover assy..
2. Set the single light guide assy. 2 to the front cover assy. with the 2 screws
1.
1
Torque
0.39 – 0.78 N·m
1
2
1
Taptite, Bind B
M3X10
2-6-B “Square shape model” not equipped with LCD backlight
1. Set the LCD 1 to the front cover assy..
2. Set the LCD holder 2 to the front cover assy. with the 2 screws 1.
1
Torque
0.39 – 0.78 N·m
1
2
1
Taptite, Bind B
M3X10

Brother CS5055PRW Specifications

General

Stitch Number	50
Needle Threader	Automatic
LCD Screen	Yes
Speed Control	Yes
Free Arm	Yes
Maximum Sewing Speed	850 stitches per minute
Lighting	LED
Buttonhole Styles	5 one-step
Included Accessories	needle set, bobbins, screwdriver, seam ripper, cleaning brush
Presser Feet	7 included
Bobbin Type	Drop-in
