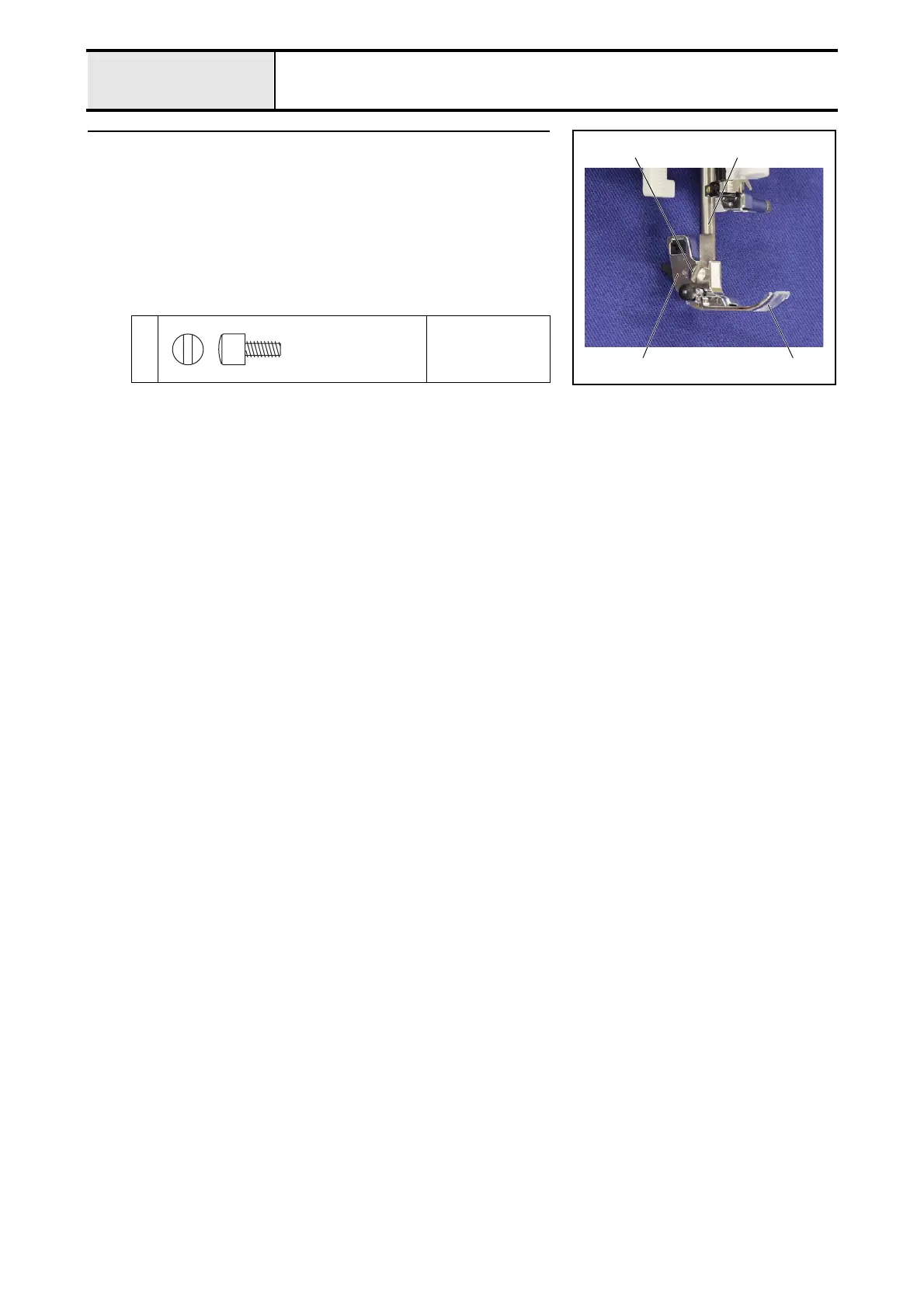

Brother CS5055PRW - Attachment of Presser Feed Holder Assy

3 - 92
Application of Assembly
Needle-presser module
22 Attachment of Presser feed holder assy
1. Set the presser feed holder assy. 1 to the presser bar 2 with the screw 1.
2. Set the Z foot 3 to the presser feed holder assy. 1.
1
Torque
0.78 – 1.18 N·m
2
1
1
3
Screw
3.57
