Brother CS5055PRW - Removal of Rubber; Removal of Z Zigzag Cam; Removal of Z Zigzag Lever Assy

3 - 40
Needle-presser module
Application of Disassembly

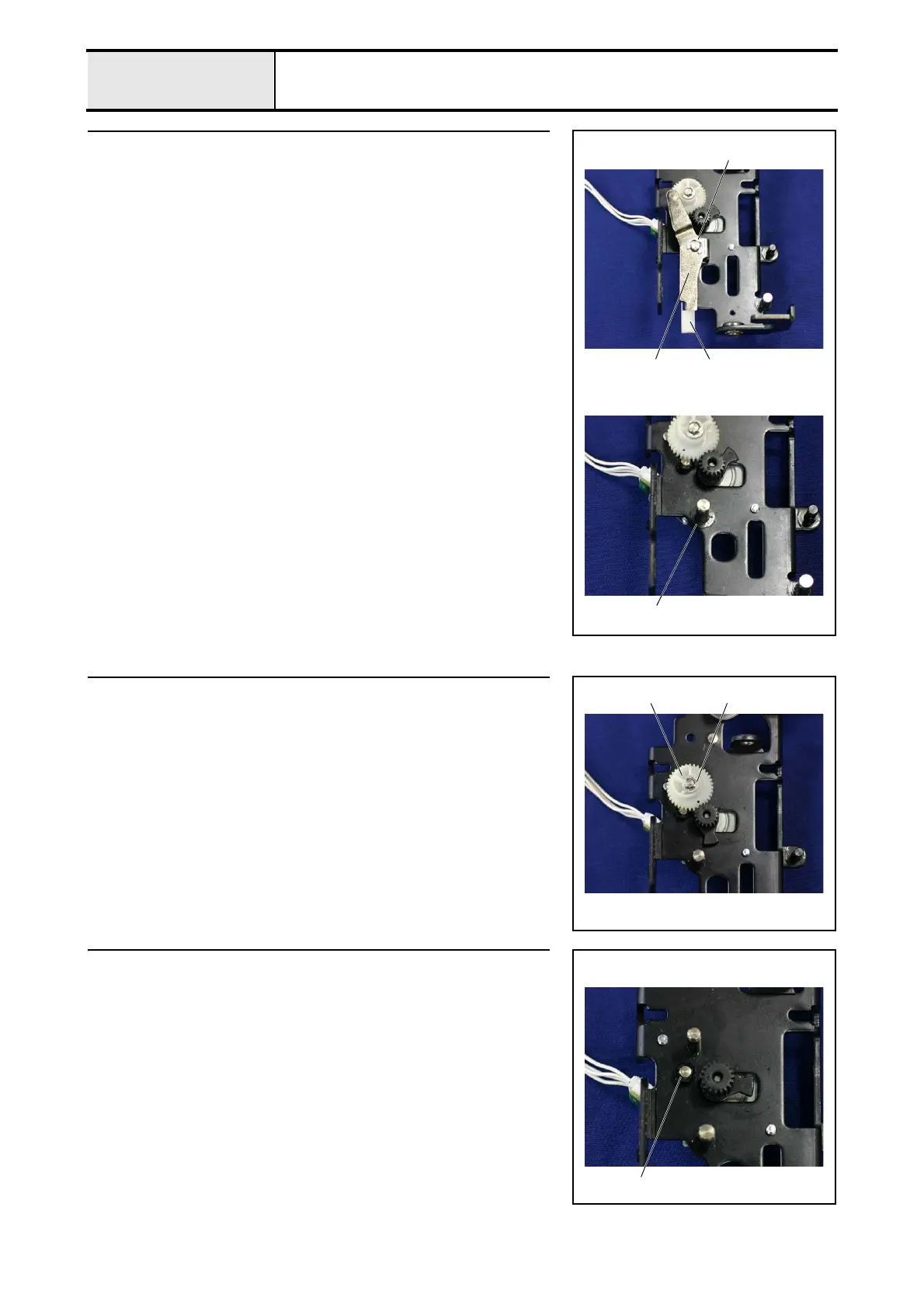

17 Removal of Z zigzag lever assy
1. Remove the Z lever cap 2 from the Z zigzag lever assy. 1.
2. Remove the retaining ring E4, and then remove the Z zigzag lever assy. 1
and the polyester slider 3.
1
Retaining ring E4
2
3
18 Removal of Z zigzag cam
1. Remove the retaining ring E3, and then remove the Z zigzag cam 1.
Retaining ring E3
1
19 Removal of Rubber
1. Remove the rubber 1.
1
