Brother CS5055PRW - Disassembly of Cutter Cover Assy; Removal of Base Plate Rubber (Rear Cover Side); Removal of Cutter Cover Assy; Removal of Thread Guide Plate Assy

3 - 16
Main parts
Application of Disassembly

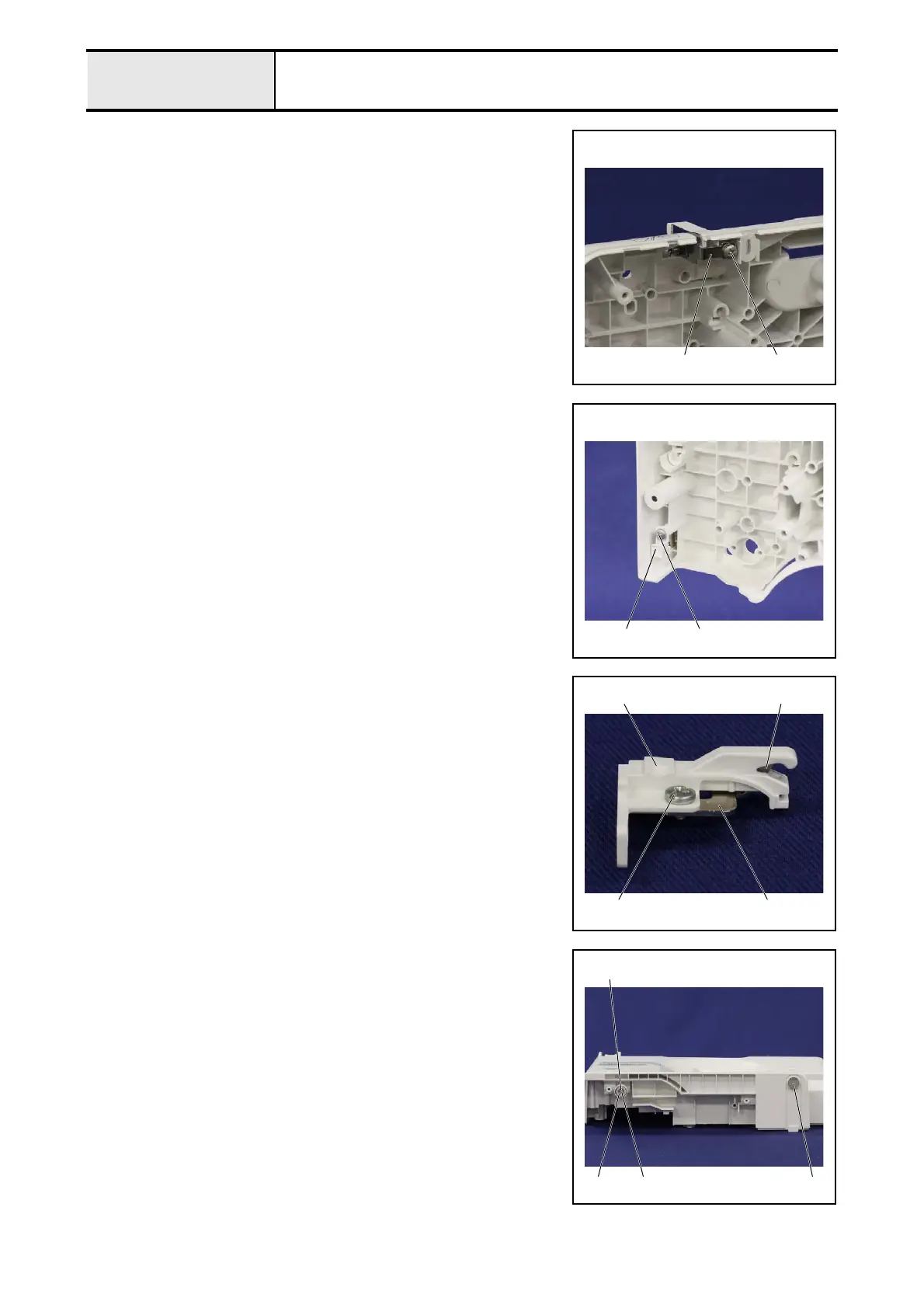

3-6 Removal of Thread guide plate assy
1. Remove the screw 1, and then remove the thread guide plate assy. 1.
111
3-7 Removal of Cutter cover assy
1. Remove the screw 1, and then remove the cutter cover assy. 1.
11
3-7-1 Disassembly of Cutter cover assy
1. Remove the screw 1, and then remove the cutter holder plate 1 from the
cutter cover 2.
2. Remove the NT lower thread cutter 3 from the cutter cover 2.
1
2 3
1
3-8 Removal of Base plate rubber (Rear cover side)
1. Remove the screw 1, and then remove the washer plain M 3.5 1 and the
rubber cushion A 2.
2. Remove the base plate rubber 3.
1
12 3
