3 - 82

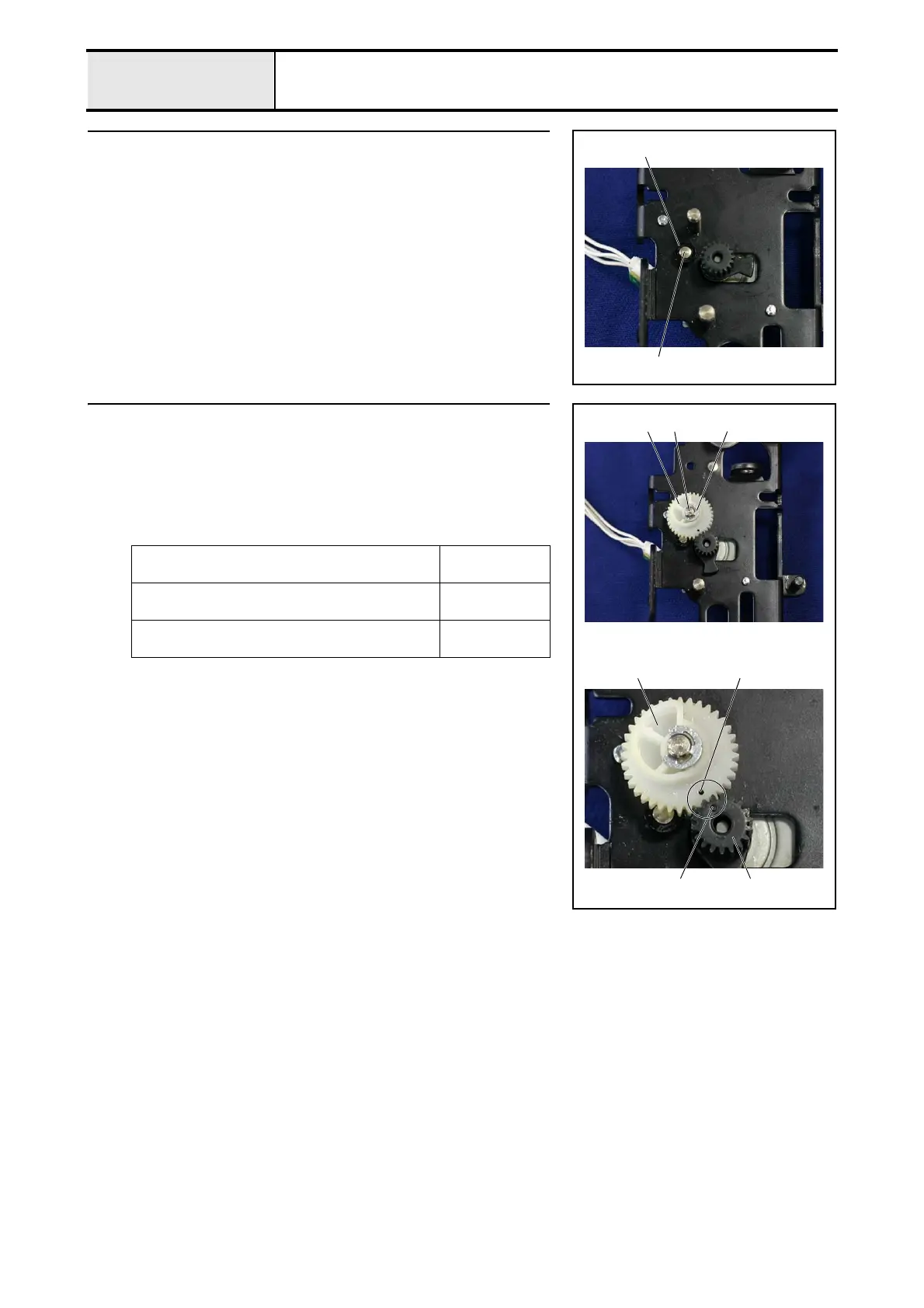

Needle-presser module

Application of Assembly

4 Attachment of Rubber

1. Attach the rubber 1 to the shaft 2 of the base holder assy..

5 Attachment of Z zigzag cam

1. Set the Z zigzag cam 1 to the shaft 2 of the base holder assy..

*Key point

• Check that the match mark 3 on the Z zigzag cam 1 Align

the match mark 5 on the Z pulse motor gear 4.

2. Attach the retaining ring E3 to the shaft 2 of the base holder assy..

Apply EPNOC AP (N) 0 to all of the sliding part of

the Z zigzag cam pin.

Bead

XC8387***

Apply EPNOC AP (N) 0 to all of the Z zigzag cam.

Bead

XC8387***

Apply EPNOC AP (N) 0 to the teeth around the Z

zigzag cam gear.

Bead

XC8387***

Retaining ring E3

1 2
