Feed and rotary module
Application of Disassembly

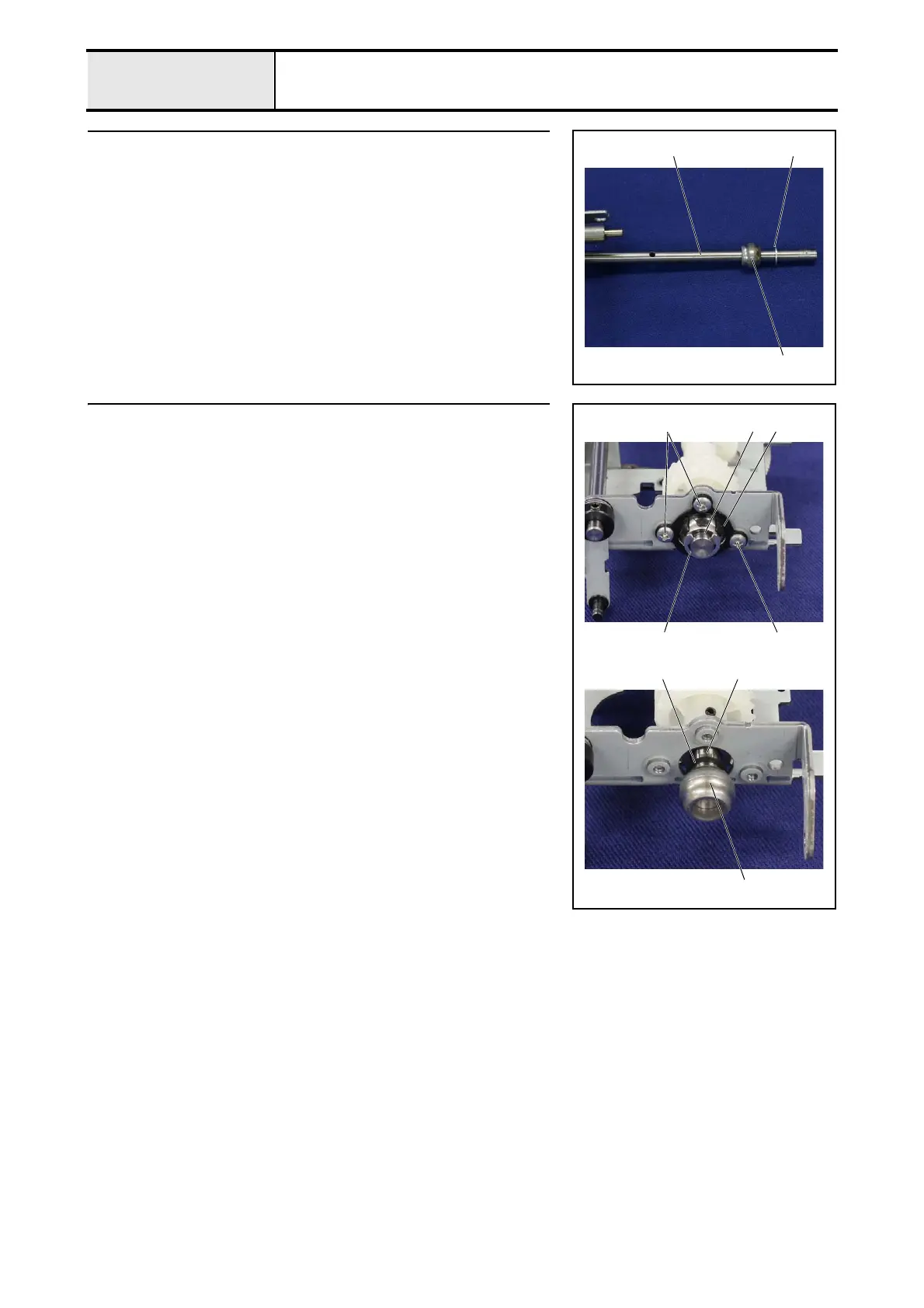

16 Removal of Upper shaft bushing
1. Remove the retaining ring E6, and then remove the upper shaft bushing 1
from the lower shaft assy. 2.
2
Retaining ring E6
1
17 Removal of Bushing presser B
1. Remove the retaining ring E6, and then remove the “washer, thrust 2”
from the lower shaft assy. 1.
2. Remove the 3 screws 1, and then remove the bushing presser B 3 from
the base plate assy..
3. Remove the lower shaft bushing 4 and the “washer, thrust 5” from the
lower shaft assy. 1.
21
1
3
Retaining ring E6
5 1
4
