Brother CS5055PRW User Manual

4 - 4

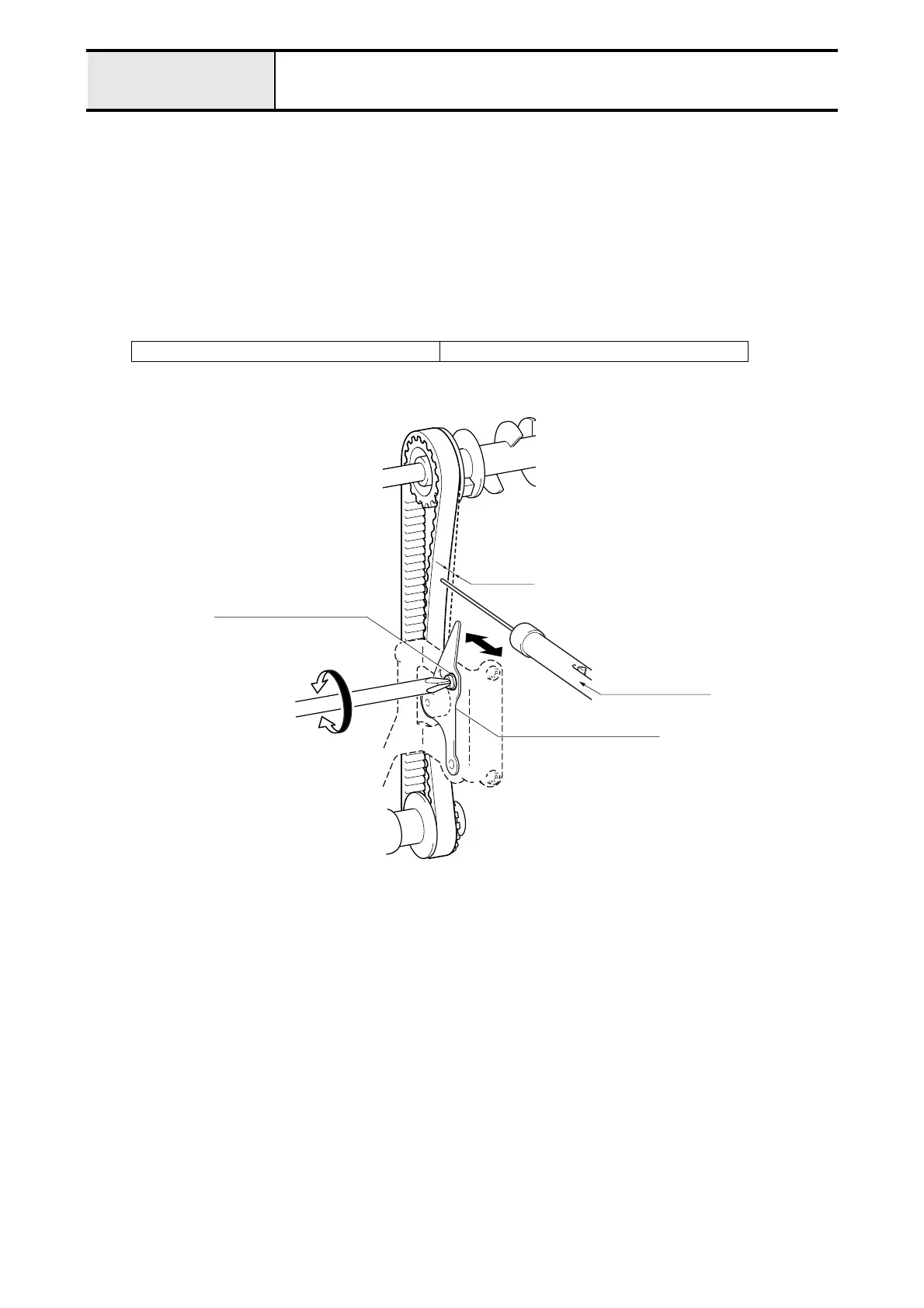

Adjustment Timing belt tension
[Adjustment standard]
The belt deflection must be 4 to 5 mm when pushing the center of the timing belt with a force of 1.96N (200g).
[Adjustment procedure]
1. Remove the front cover.
2. Loosen the screw (screw pan (S/P washer) M4 x 8) of the tension pulley assy..
3. Move tension pulley assy. back and forth, to adjust the belt deflection to 4 to 5 mm when pushing the center of the
timing belt with a force of 1.96N (200g).
4. Tighten the screw (screw pan (S/P washer) M4 x 8) of the tension pulley assy..
XC2277001 Push-pull gauge (5N)
Screw pan
(S/P washer) M4 x 8
Tension pulley assy.
4 - 5mm
1.96N (200g)

Brother CS5055PRW Specifications

General

Stitch Number	50
Needle Threader	Automatic
LCD Screen	Yes
Speed Control	Yes
Free Arm	Yes
Maximum Sewing Speed	850 stitches per minute
Lighting	LED
Buttonhole Styles	5 one-step
Included Accessories	needle set, bobbins, screwdriver, seam ripper, cleaning brush
Presser Feet	7 included
Bobbin Type	Drop-in
