Brother CS5055PRW User Manual

3 - 29
Feed and rotary module
Application of Disassembly
Application

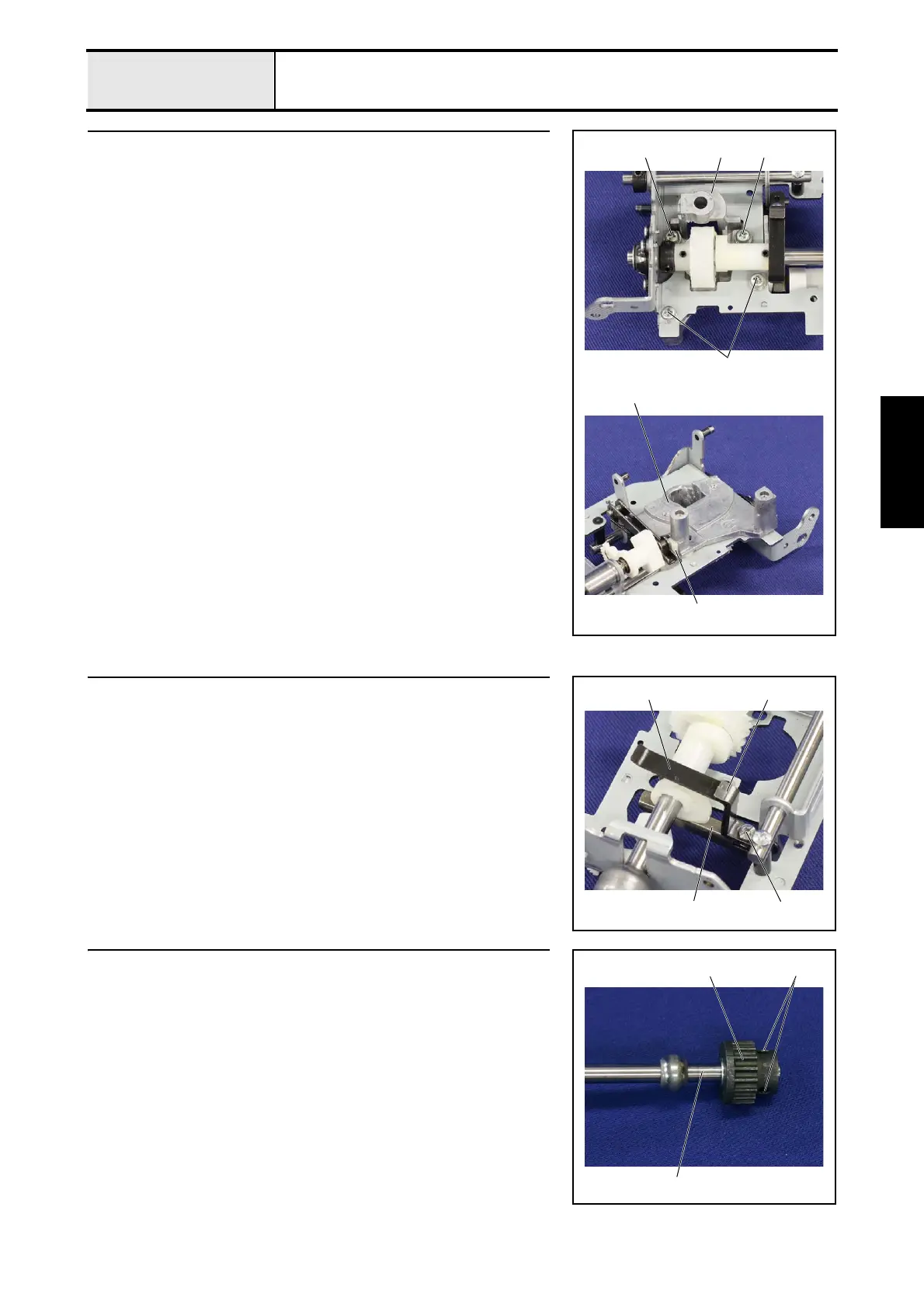

13 Removal of Shaft supporter
1. Remove the 4 screws 1, and then remove the shaft supporter 1 and the
feed arm supporter 2 from the base plate assy..
2
1
1
11 1
14 Removal of Feed supporting plate
1. Remove the screw 1, and then remove the feed supporting plate B 1 and
the feed supporting plate 2 from the feed arm assy. 3.
12
3
1
15 Removal of Timing pulley D
1. Remove the 2 screws 1, and then remove the timing pulley D 1 from the
lower shaft assy. 2.
1
1
2
