Feed and rotary module
Application of Disassembly
Application
18 Removal of Lower shaft assy

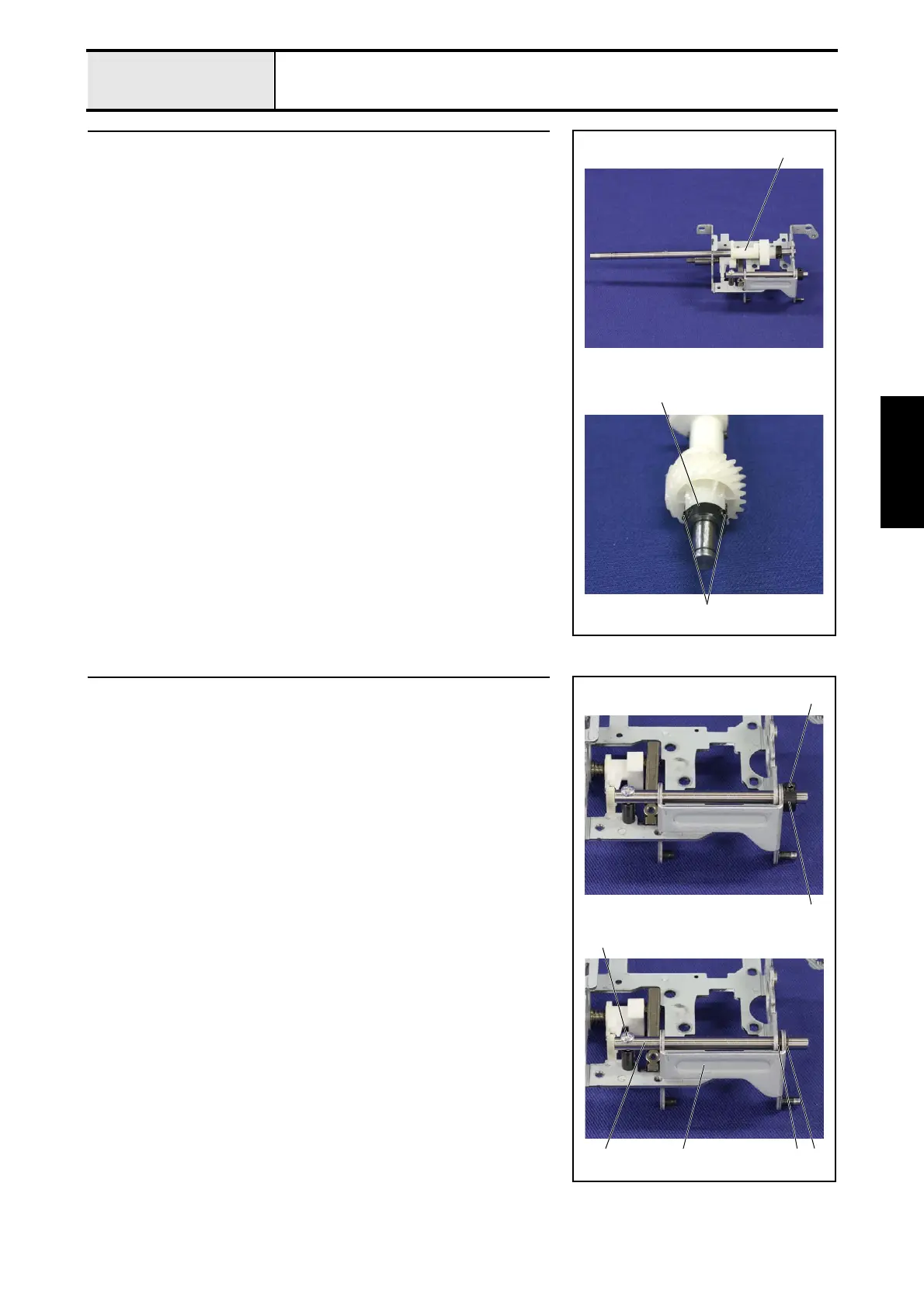

1. Remove the lower shaft assy. 1 from the base plate assy..
2. Remove the 2 screws 1, and then remove the set collar 2.
1
2
1
19 Removal of Feed arm A assy
1. Remove the screw 1, and then remove the set collar 1.
2. Remove the screws 2, and then pull the horizontal feed shaft 2, and then
remove the “washer, thrust 3”, the feed arm A assy. 4 and the “washer,
thrust 5”.
*Key point
• Remove the feed regulator slide shaft of the feed arm B assy.
from the feed adjuster.
1
1
2
2
4
53
