Brother CS5055PRW User Manual

3 - 44

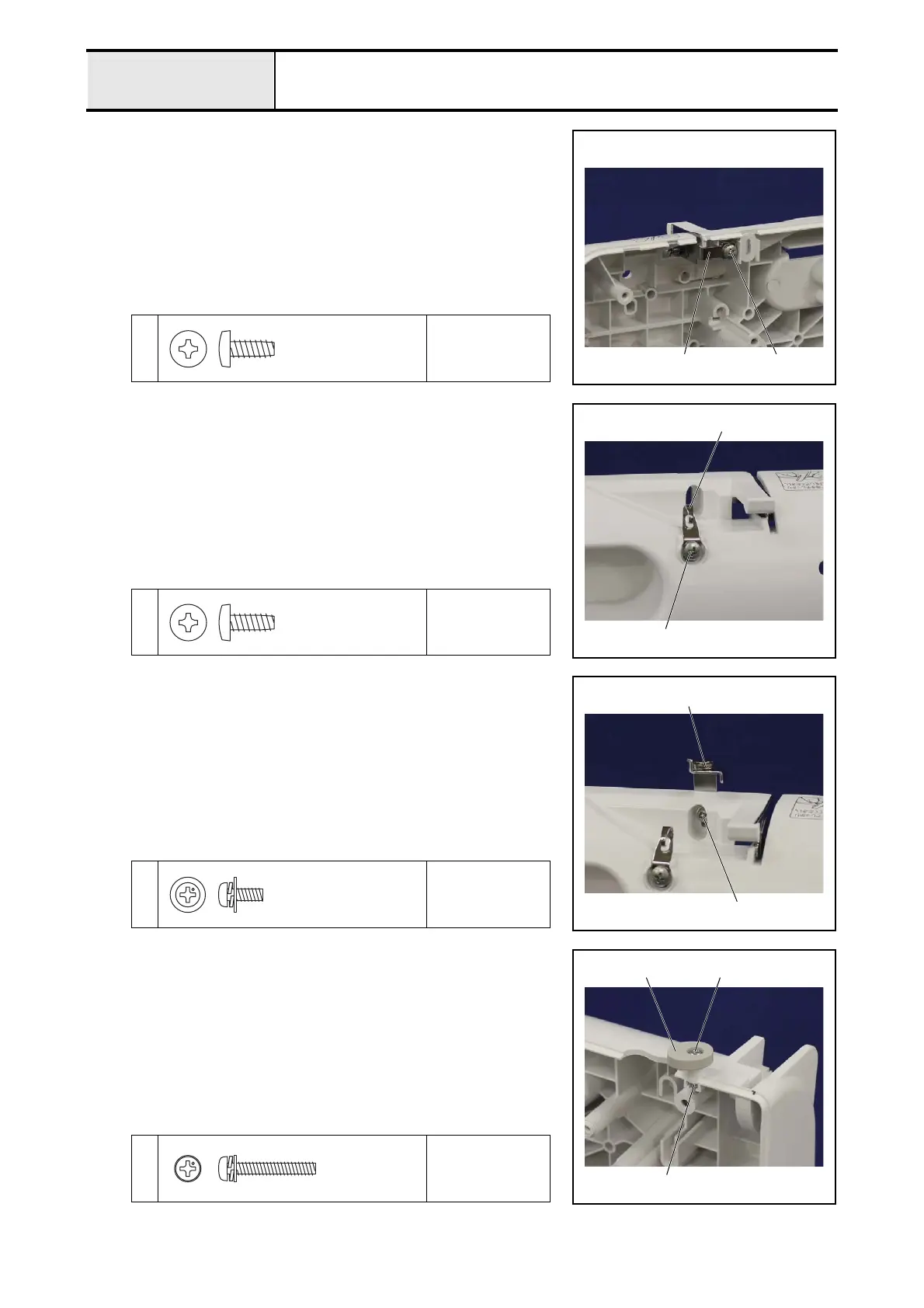

Main parts
Application of Assembly
1-3 Attachment of Thread guide plate assy
1. Set the thread guide plate assy. 1 to the rear cover assy. with the screw 1.
*Key point
• Check that the align the notch part of the thread guide plate
assy. 1 with the rib of the rear cover assy..
1
Torque
0.78 – 1.18 N·m
111
Taptite, Bind B
M4X10
1-4 Attachment of Thread guide supporting plate assy
1. Set the thread guide supporting plate assy. 1 to the rear cover assy. with
the screw 1.
1
Torque
0.78 – 1.18 N·m
1
1
Taptite, Bind B
M4X10
1-5 Attachment of Bobbin winder guide assy
1. Set the bobbin winder guide assy. 1 to the rear cover assy. and then
temporarily tighten the screws 1.
*Key point
• Fully tighten the screw 1 after performing "4-16 Adjustment :
Bobbin winder".
1
Torque
Hand start
1
1
Screw, Pan (S/P washer)
M3X8DB
1-6 Attachment of Bobbin presser
1. Set the Nut 1 M3 1 to the rear cover assy..
2. Set the bobbin presser 2 to the rear cover assy., and then temporarily
tighten the screws 1.
*Key point
• Place the bobbin presser 2 with the smaller end facing the
rear.
• Fully tighten the screw 1 after performing "4-16 Adjustment :
Bobbin winder".
1
Torque
Hand start
1
1
2
Screw, Pan (S/P washer)
M3X20

Brother CS5055PRW Specifications

General

Stitch Number	50
Needle Threader	Automatic
LCD Screen	Yes
Speed Control	Yes
Free Arm	Yes
Maximum Sewing Speed	850 stitches per minute
Lighting	LED
Buttonhole Styles	5 one-step
Included Accessories	needle set, bobbins, screwdriver, seam ripper, cleaning brush
Presser Feet	7 included
Bobbin Type	Drop-in
