Feed mechanism
Basics of Assembly
Basics
1 Attachment of Feed module

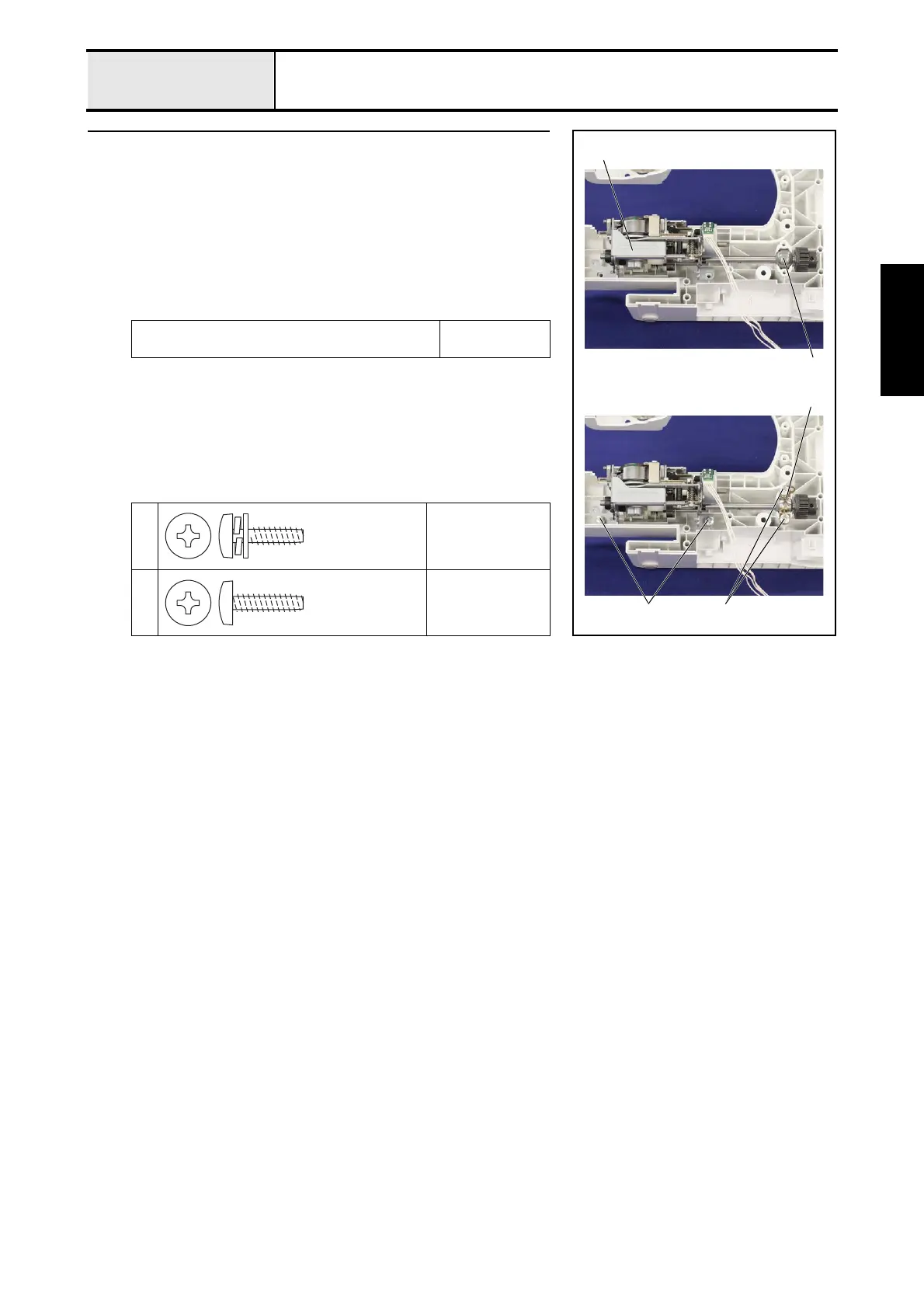

1. Set the feed module 1 and the upper shaft bushing 2 to the positioning
part of the rear cover assy. with the 2 washer EX tooth 5 3 and the 2
screws 1.
2. Set the upper shaft bearing presser 4 to the rear cover assy. with the 2
screws 2.
*Key point
• Attach the upper shaft bearing presser 4 so that the
projecting part is positioned at the upper right.
→ Refer to 3 - 66 "Feed and rotary module".
Apply OILER to the matching section of the lower
shaft and the lower shaft bushing.
1 - 2 drops
XZ0206***
1
Torque
1.18 – 1.57 N·m
2
Torque
1.18 – 1.57 N·m
2
1
2
4
1, 3
Giza Tite
M5X16
Giza Tite
M5X16
