Brother CS5055PRW User Manual

3 - 32
Feed and rotary module

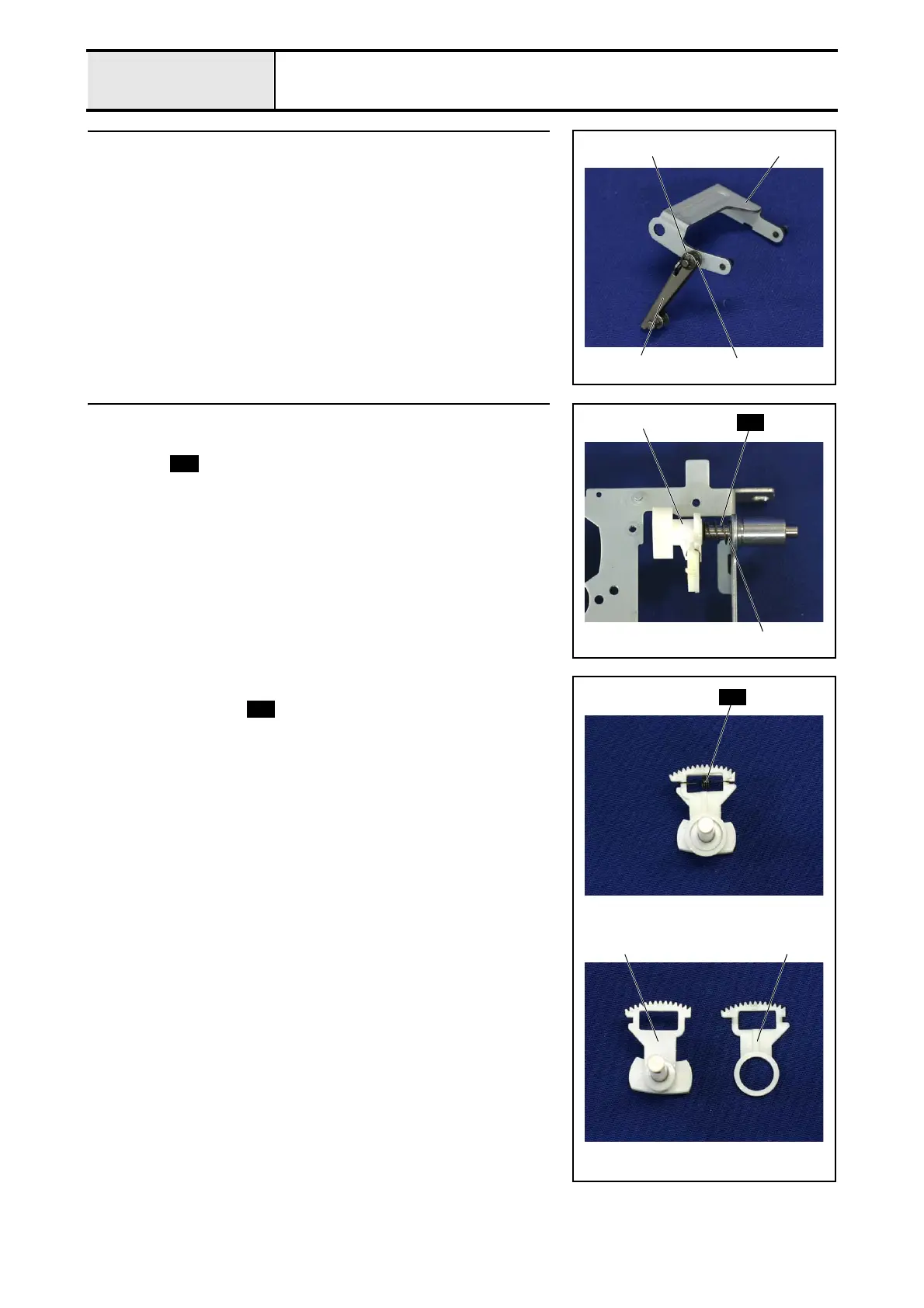

Application of Disassembly
20 Removal of Feed arm B assy
1. Remove the retaining ring CSTW-3.5, and then remove the feed arm B
assy. 1 and the polyester slider 2 from the feed arm A assy. 3.
1
Retaining ring CSTW-3.5
3
2
21 Removal of Feed adjuster assy
1. Pull the feed adjuster 1 from the base plate assy. and then remove the
spring and the polyester slider 2.
1
S03
2
S03
21-1 Disassembly of Feed adjuster assy
1. Remove the spring , and then remove the F gear 2 from the feed
adjuster 1.
1 2
S02
S02
