Brother CS5055PRW - Removal of Inner Rotary Hook Bracket Assy; Removal of Outer Rotary Hook Assy; Removal of Spring; Removal of Z Pulse Motor

3 - 26
Feed and rotary module
Application of Disassembly

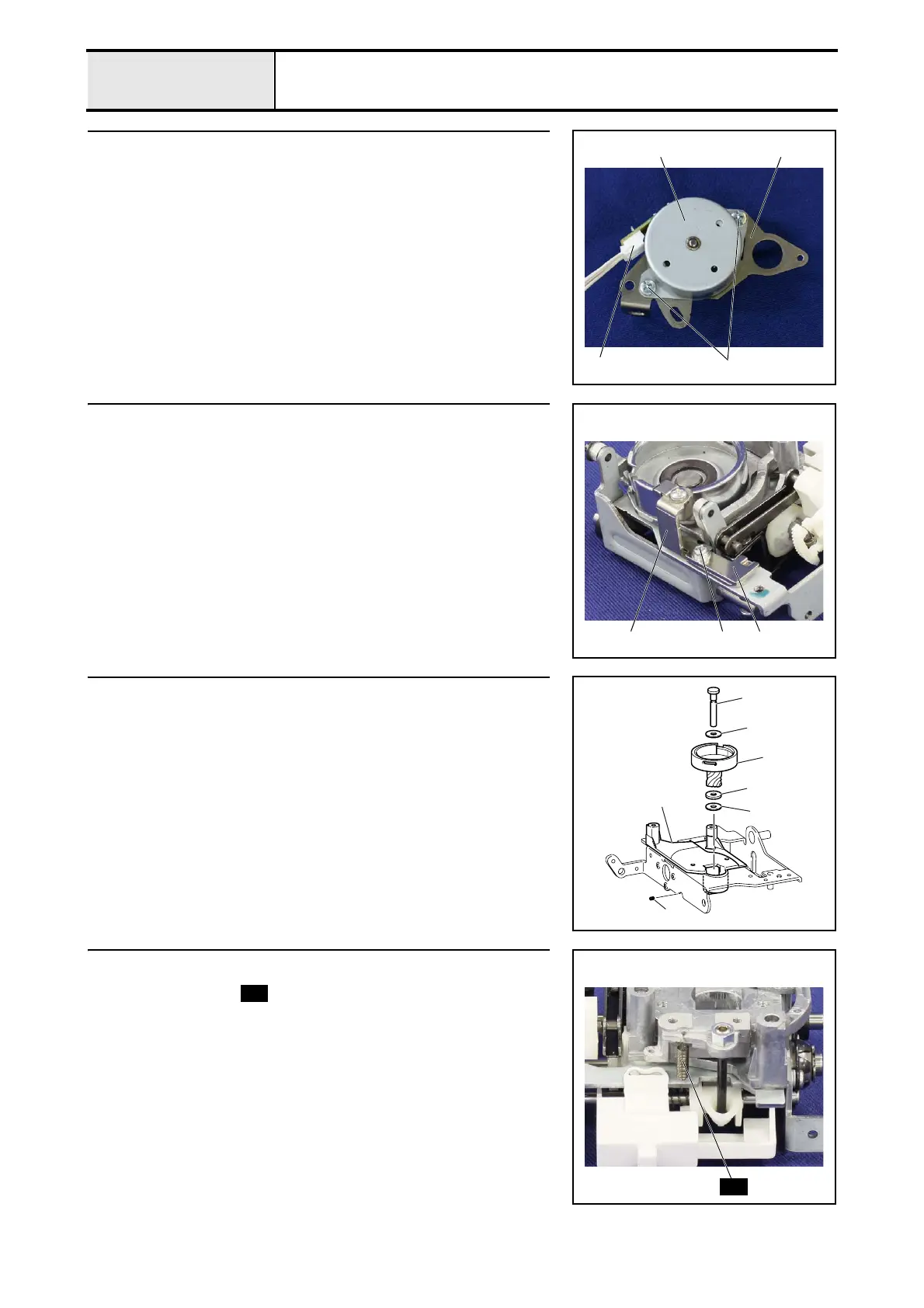

6 Removal of Z pulse motor
1. Remove the 2 screws 1, and then remove the Z pulse motor 1 from the
FPM holder assy. 2.
2. Remove the “lead wire assy, FPM-LE 3” from the Z pulse motor 1.
1
3
2
1
7 Removal of Inner rotary hook bracket assy
1. Remove the screw 1, and then remove the IRH bracket support plate 1
and the inner rotary hook bracket assy. 2 from the base plate assy..
12 1
8 Removal of Outer rotary hook assy
1. Remove the screw 1, and then pull the outer rotary hook shaft 1, and
remove the spacer 2, outer rotary hook assy. 3, washer 6 4 and spacer
5 from the shaft supporter 6.
1
1
2
3
4
5
6
9 Removal of Spring
1. Remove the spring .
S05
S05
