3 - 77

Feed and rotary module

Application of Assembly

Application

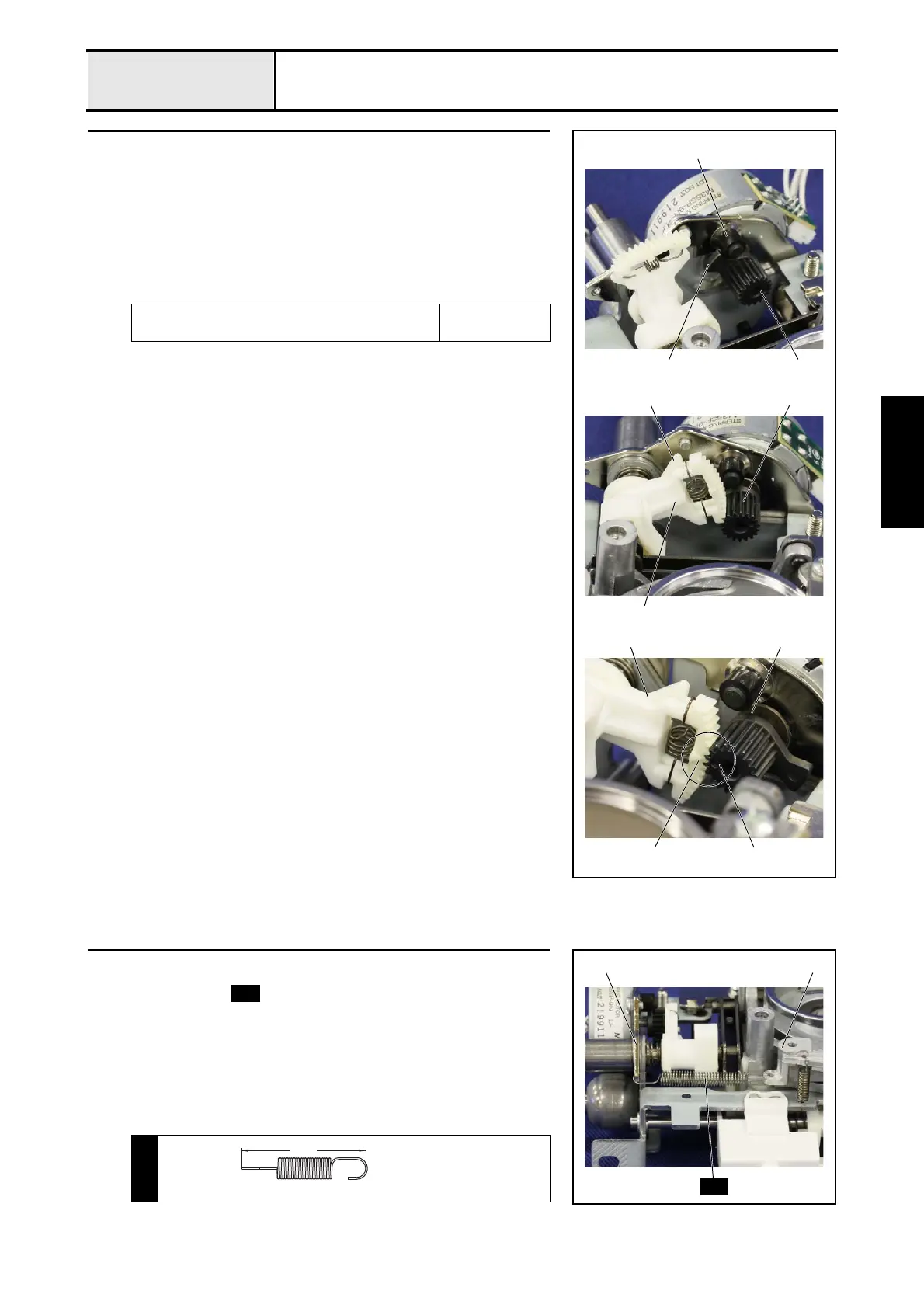

18 Alignment of F gear teeth

1. Turn the F pulse motor gear 1 clockwise until the stopper 2 of the F

pulse motor gear 1 on it touches the rubber 3.

2. Align the teeth of the feed adjusting assy. 4 with the teeth of the F gear

5, and then mesh it and the F pulse motor gear 1.

*Key point

• Check that the match mark 6 of the F gear 5 and the match

mark 7 of the F pulse motor gear 1 are together.

Apply EPNOC AP (N) 0 to the all of the teeth on

the feed adjusting assy. F gear.

Bead

XC8387***

19 Attachment of Spring

1. Attach the spring to the FPM holder assy. 1 and the feed bar 2.

S07

1 2

S07

SPRING

XE1478***

A decided hook form is same

28.0
