Main parts
Application of Disassembly

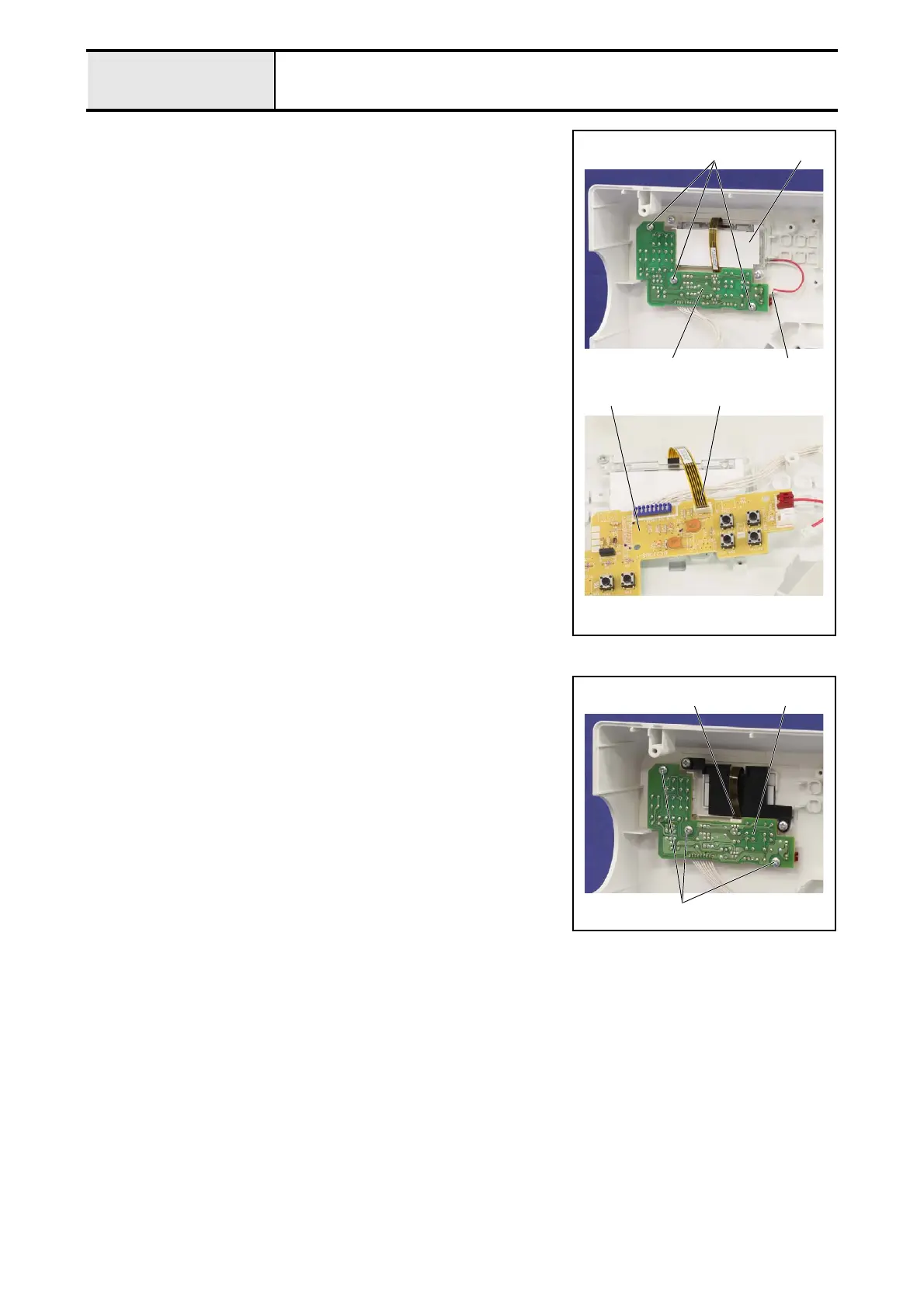

2-7 Removal of Operation PCB assy
2-7-A “Square shape model” equipped with LCD backlight
1. Disconnect the connector 1 of the single light guide assy. 2 from the
operation PCB assy. 3.
2. Remove the 3 screws 1, and then remove the operation PCB assy. 3.
3. Disconnect the flat cable 4 of the LCD from the operation PCB assy. 3.
1
13
43
2
2-7-B “Square shape model” not equipped with LCD backlight
1. Disconnect the flat cable 1 of the LCD from the operation PCB assy. 2.
2. Remove the 3 screws 1, and then remove the operation PCB assy. 2.
1
1
2
