Brother CS5055PRW User Manual

3 - 73
Feed and rotary module
Application of Assembly
Application

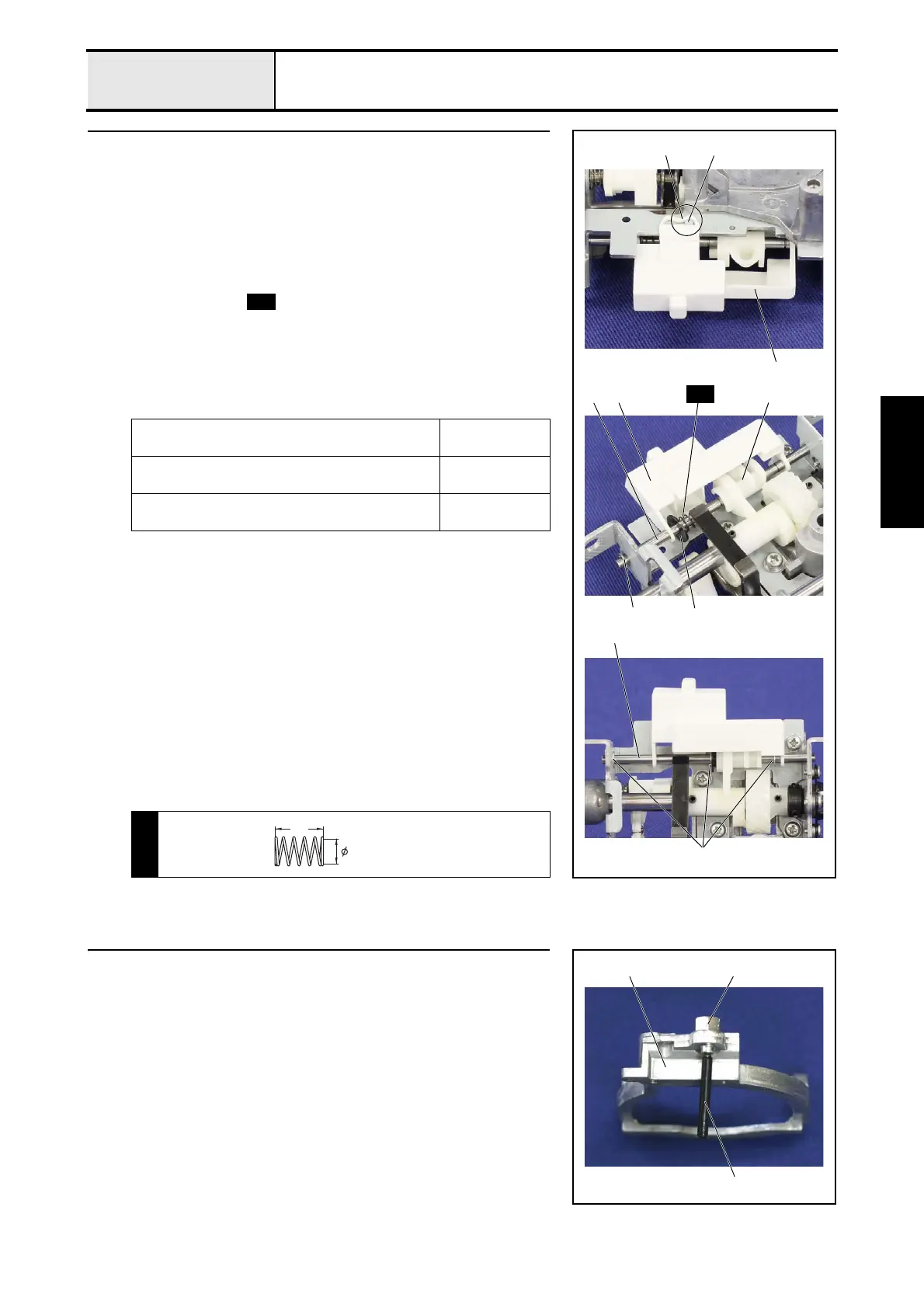

10 Attachment of Drop knob
1. Set the drop knob 1 to the base plate assy.
*Key point
• Attach it while lifting the section 3 of the drop knob 1 to get
over the boss part 2 of the base plate assy.
2. Attach the retaining ring E3 to the vertical feed shaft 4.
3. Set the base plate assy. as shown in the right figure, and then insert the
vertical feed shaft 4 into the base plate assy., the drop knob 1, the washer
plain 5, the spring , the vertical lever 6, the drop knob 1 and the
base plate from the left side.
*Key point
• Insert it until the retaining ring hit the base plate assy.
4. Attach the 3 retaining rings E3 to the grooves (3 locations) of the vertical
feed shaft 4.
Apply EPNOC AP (N) 0 to the sliding parts of the
drop knob and the base plate assy.
Bead
XC8387***
Lubricate the vertical feed shaft with the OILER.
1-2 drops
XZ0206***
Apply EPNOC AP (N) 0 to the vertical feed cam
surface A.
Small amount
XC8387***
S04
Retaining ring E3
4
4
1
23
S04
5
1 6
Retaining ring E3
S04
11
5.7
SPRING
XC2550***
11 Attachment of Vertical adjuster screw assy
1. Attach the M5 nut 2 to the vertical adjuster screw assy. 1.
2. Attach the vertical adjuster screw assy. 1 to the feed bar 3.
*Key point
• Refer to "4 - 11 Adjustment : Needle bar height".
3 2
1

Brother CS5055PRW Specifications

General

Stitch Number	50
Needle Threader	Automatic
LCD Screen	Yes
Speed Control	Yes
Free Arm	Yes
Maximum Sewing Speed	850 stitches per minute
Lighting	LED
Buttonhole Styles	5 one-step
Included Accessories	needle set, bobbins, screwdriver, seam ripper, cleaning brush
Presser Feet	7 included
Bobbin Type	Drop-in
