Needle-presser module

Application of Assembly

Application

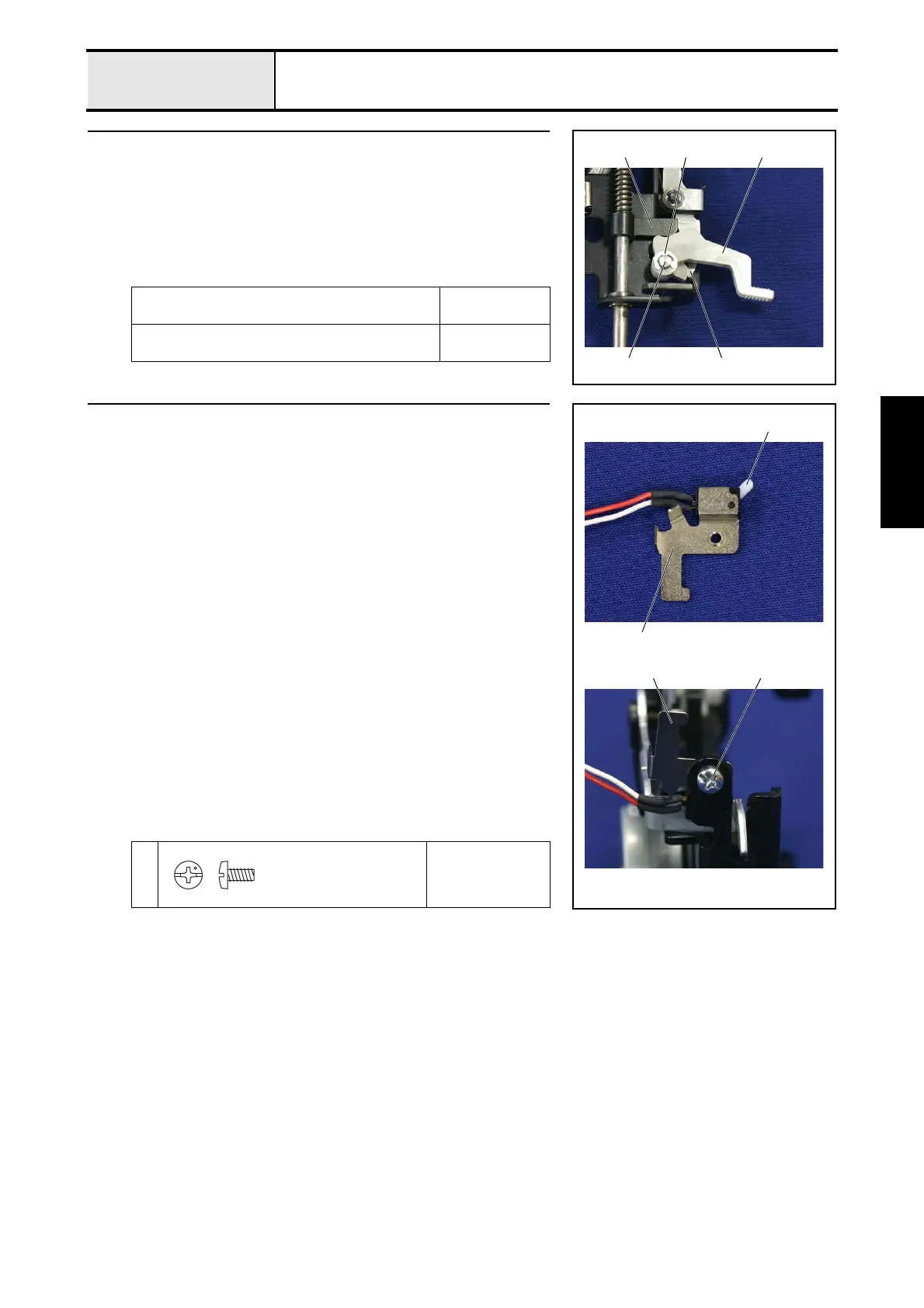

9 Attachment of Presser foot lifter

1. Set the presser foot lifter 1 to the shaft 2 of the base holder assy., and

then attach the retaining ring E4.

*Key point

• Push the presser bar clamp 3 to the upper side, and then

attach it while pushing the bottom side of the thread release

lever 4.

Apply EPNOC AP (N) 0 to the shaft of the base

holder assy.

Small amount

XC8387***

Apply EPNOC AP (N) 0 to the operating surface of

the presser bar lifter presser bar clamp.

Small amount

XC8387***

Retaining ring E4

10 Attachment of PF switch assy

1. Set the PF switch assy. 1 to the presser switch holder 2.

*Key point

• Check that the boss part of the PF switch assy. 1 align the

positioning hole of the presser switch holder 2.

2. Set the presser switch holder 2 to the base holder assy. with the screw 1.

*Key point

• Check that the boss part of the PF switch assy. 1 align the

notch part of the base holder assy.

Torque

0.59 – 0.78 N·m

2 1

Screw, Bind

M3X6
