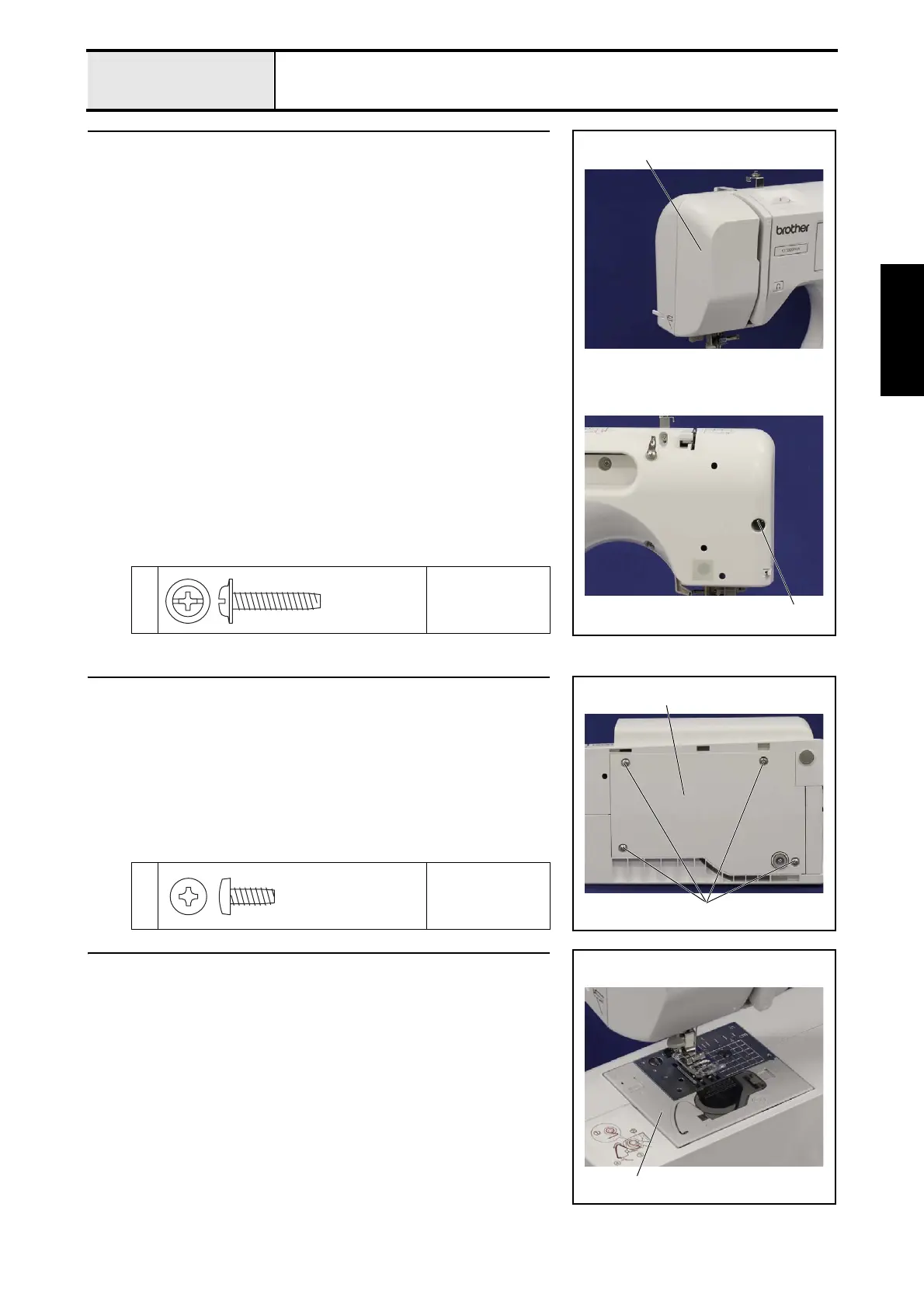

Brother CS5055PRW - Attachment of Base Cover; Attachment of Face Plate; Attachment of Needle Plate B Assy

2 - 31
Main parts
Basics of Assembly
Basics
2 Attachment of Face plate
1. Set the face plate 1 to the rear cover assy. with the screw 1.
1
Torque
0.78 – 1.18 N·m
1
1
Taptite, Cup P
M4X20
3 Attachment of Base cover
1. Set the base cover 1 to the machine with the 4 screws 1.
1
Torque
0.59 – 0.78 N·m
1
1
Taptite, Bind B
M4X10
4 Attachment of Needle plate B assy
1. Attach the needle plate B assy 1 to the machine.
→ Refer to 3 - 59 "Assembly of Needle plate B assy".
1
