Brother CS5055PRW User Manual

3 - 15

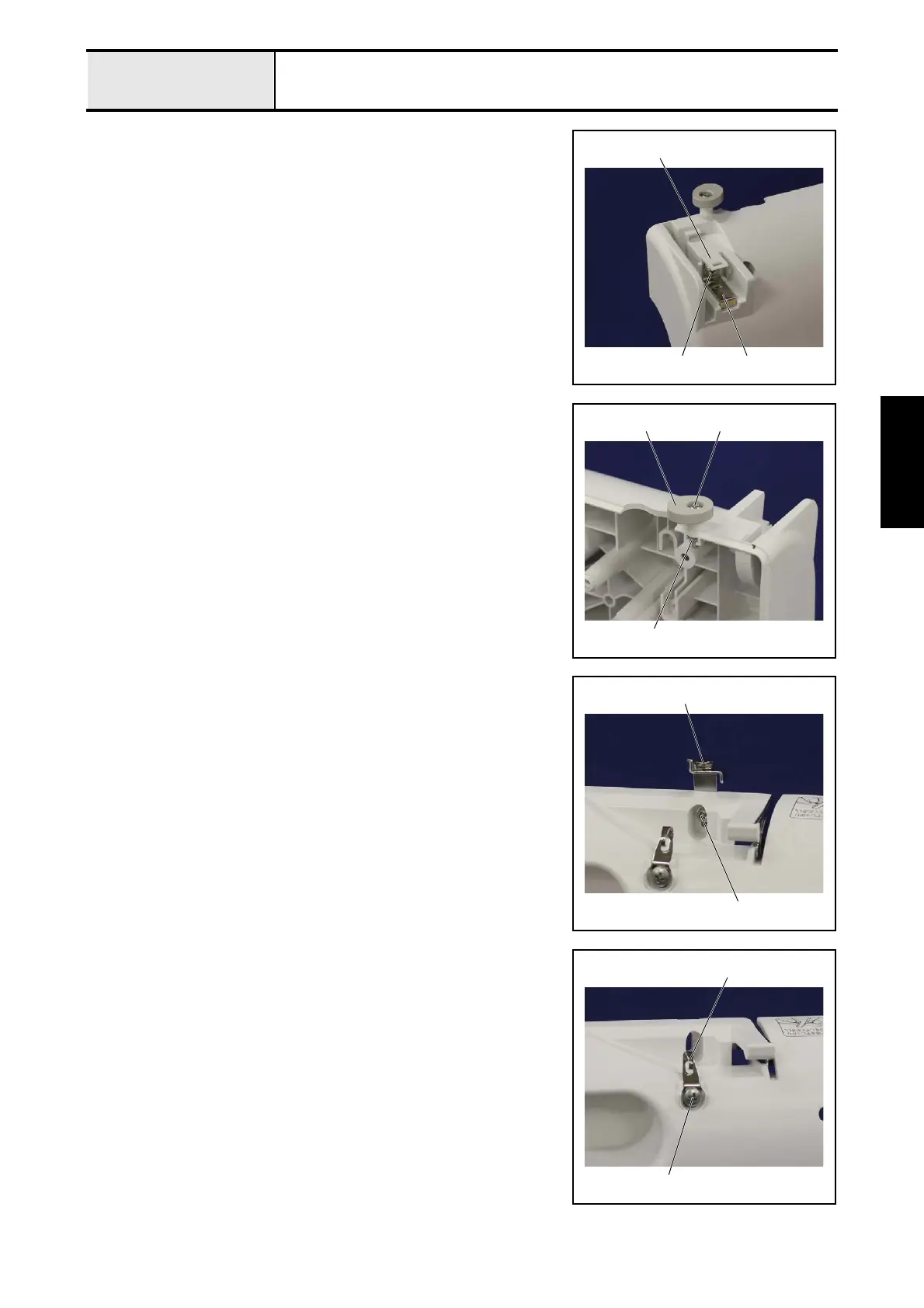

Main parts
Application of Disassembly
Application
3-2 Removal of Spool pin holder
1. Remove the screw 1, and then remove the spool pin stop plate 1 and the
spool holder 2.
2
1 1
3-3 Removal of Bobbin presser
1. Remove the screw 1, and then remove the bobbin presser 1.
2. Remove the Nut 1 M3 2.
11
2
3-4 Removal of Bobbin winder guide assy
1. Remove the screw 1, and then remove the bobbin winder guide assy. 1.
1
1
3-5 Removal of Thread guide supporting plate
1. Remove the screw 1, and then remove the thread guide supporting plate
1.
1
1
