Brother CS5055PRW - Attachment of Feed Dog; Attachment of Needle Plate a Assy; Assembly of Needle Plate a Assy

3 - 78
Feed and rotary module
Application of Assembly

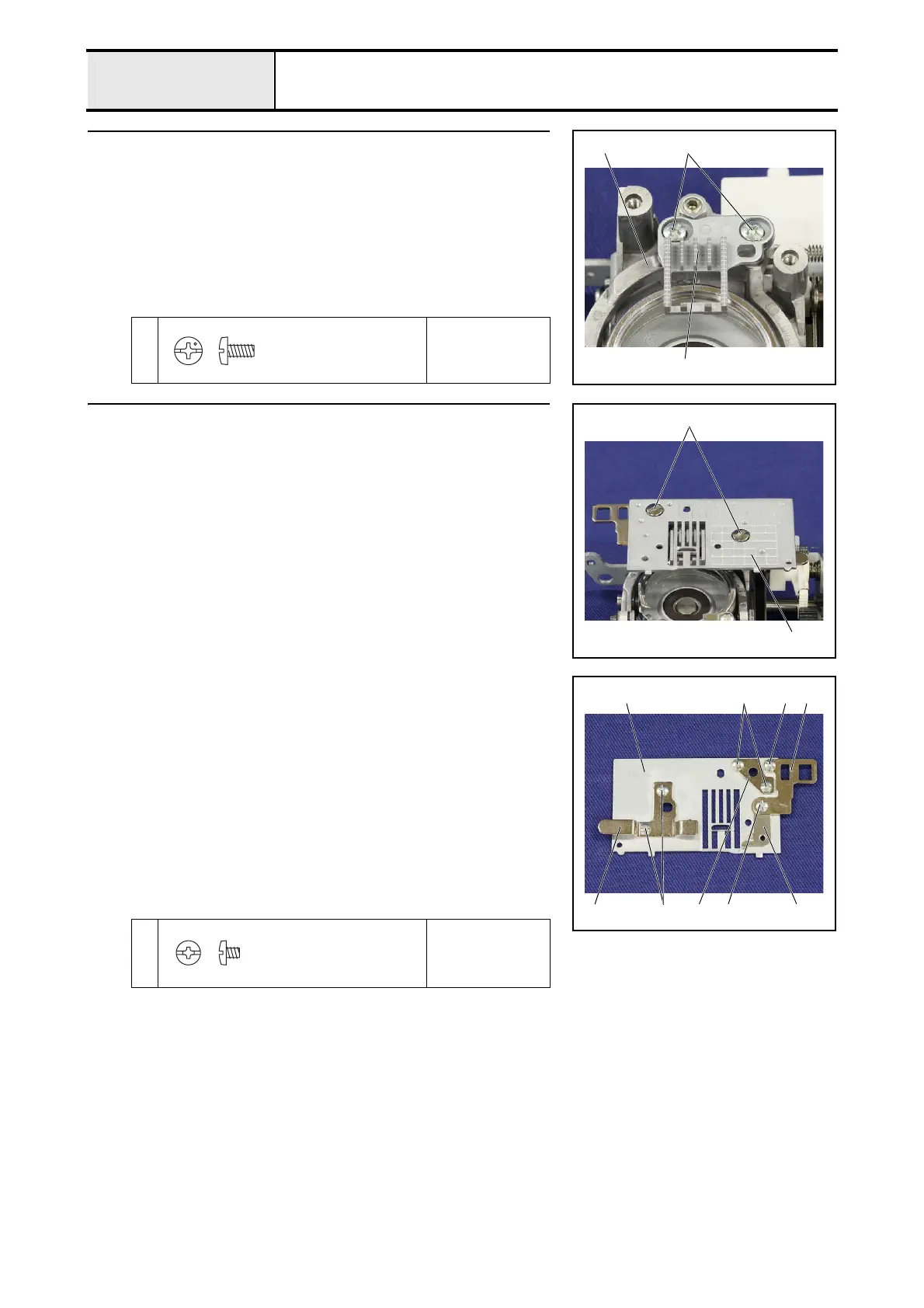

20 Attachment of Feed dog
1. Set the feed dog 1 to the feed bar 2, and then tighten the 2 screws 1
temporarily.
*Key point
• Fully tighten the screw 1 after performing "4 - 19 Adjustment :
Front/back and left/right position of feed dog".
1
Torque
Hand start
1
1
2
Screw, Bind
M3X6
21 Attachment of Needle plate A assy
1. Set the needle plate A assy. 1 to the feed and rotary module with the 2
screw needle plates 2.
2
1
21-1Assembly of Needle plate A assy
1. Set the F gear stopper plate 1 to the needle plate A 2 with the 2 screws 1.
*Key point
• Check that the boss part of the F gear stopper plate 1
engaged with the positioning hole of the needle plate A 2.
2. Set the stopper plate 3 and the needle plate B support plate 4 to the
needle plate A assy. 2 with the 2 screws 2.
*Key point
• Check that the boss of the stopper plate 3 engaged with the
positioning hole of the needle plate A 2.
3. Set the needle plate holder 5 to the needle plate A assy. 2 with the 2
screws 3.
1
2
3
Torque
0.59 – 0.78 N·m
2 3
1
1 3
42
25
Screw, Bind
M2.6X3
