3 - 83
Needle-presser module
Application of Assembly
Application

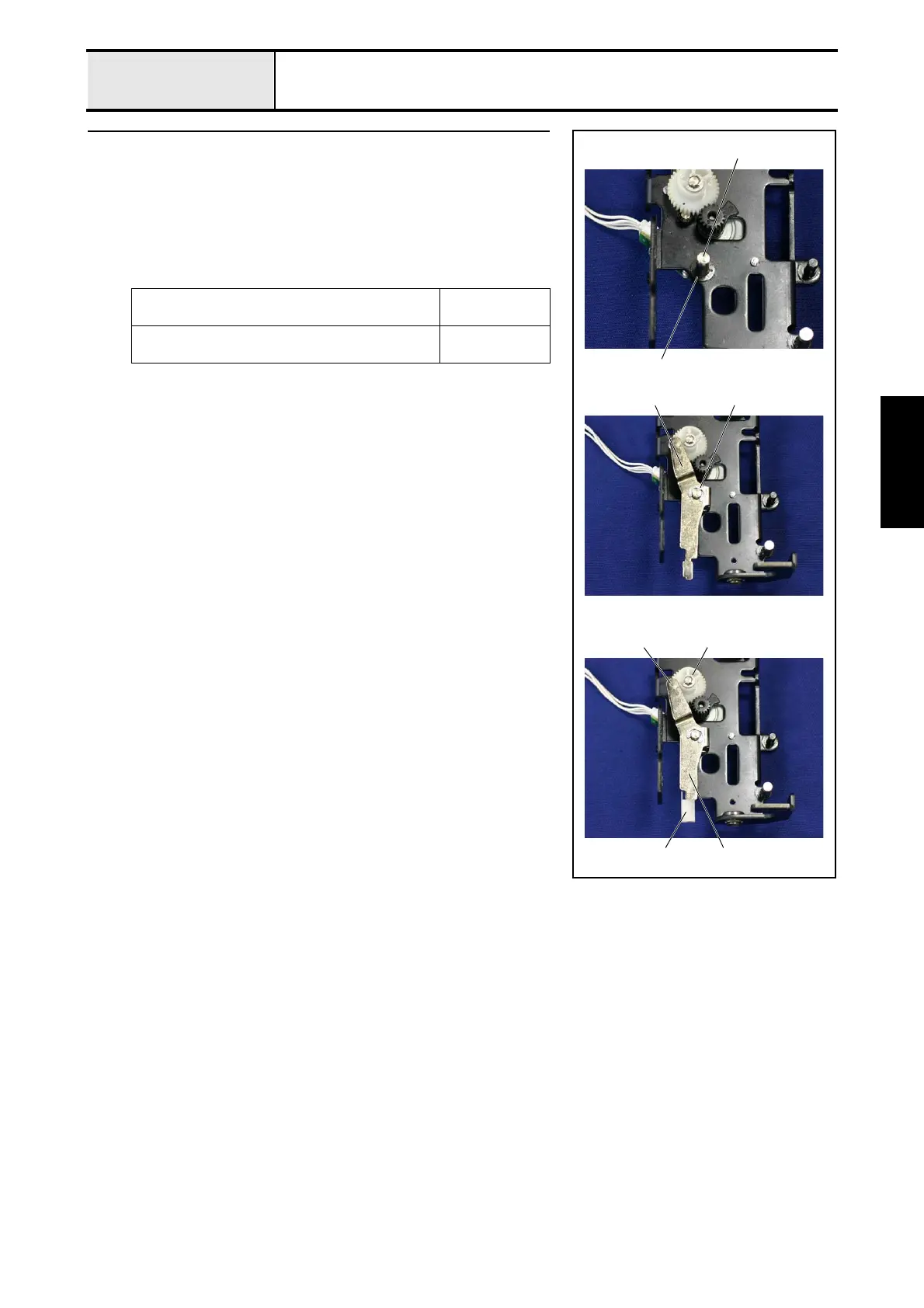

6 Attachment of Z zigzag lever assy
1. Attach the polyester slider 2 and the Z zigzag lever assy. 3 to the shaft 1
of the base holder assy., and then attach the retaining ring E4.
*Key point
• Check that the shaft 4 of the Z zigzag lever assy. 3 is at the
left of the Z zigzag cam 5.
2. Attach the Z lever cap 6 to the Z zigzag lever assy. 3.
Apply EPNOC AP (N) 0 to the shaft of the base
holder assy.
Bead
XC8387***
Apply EPNOC AP (N) 0 to the shaft of the Z
zigzag lever.
Bead
XC8387***
1
2
Retaining ring E4
3
4
6
5
3

Brother CS5055PRW Specifications

General

Stitch Number	50
Needle Threader	Automatic
LCD Screen	Yes
Speed Control	Yes
Free Arm	Yes
Maximum Sewing Speed	850 stitches per minute
Lighting	LED
Buttonhole Styles	5 one-step
Included Accessories	needle set, bobbins, screwdriver, seam ripper, cleaning brush
Presser Feet	7 included
Bobbin Type	Drop-in
