Brother CS5055PRW User Manual

3 - 9
Main parts
Application of Disassembly
Application

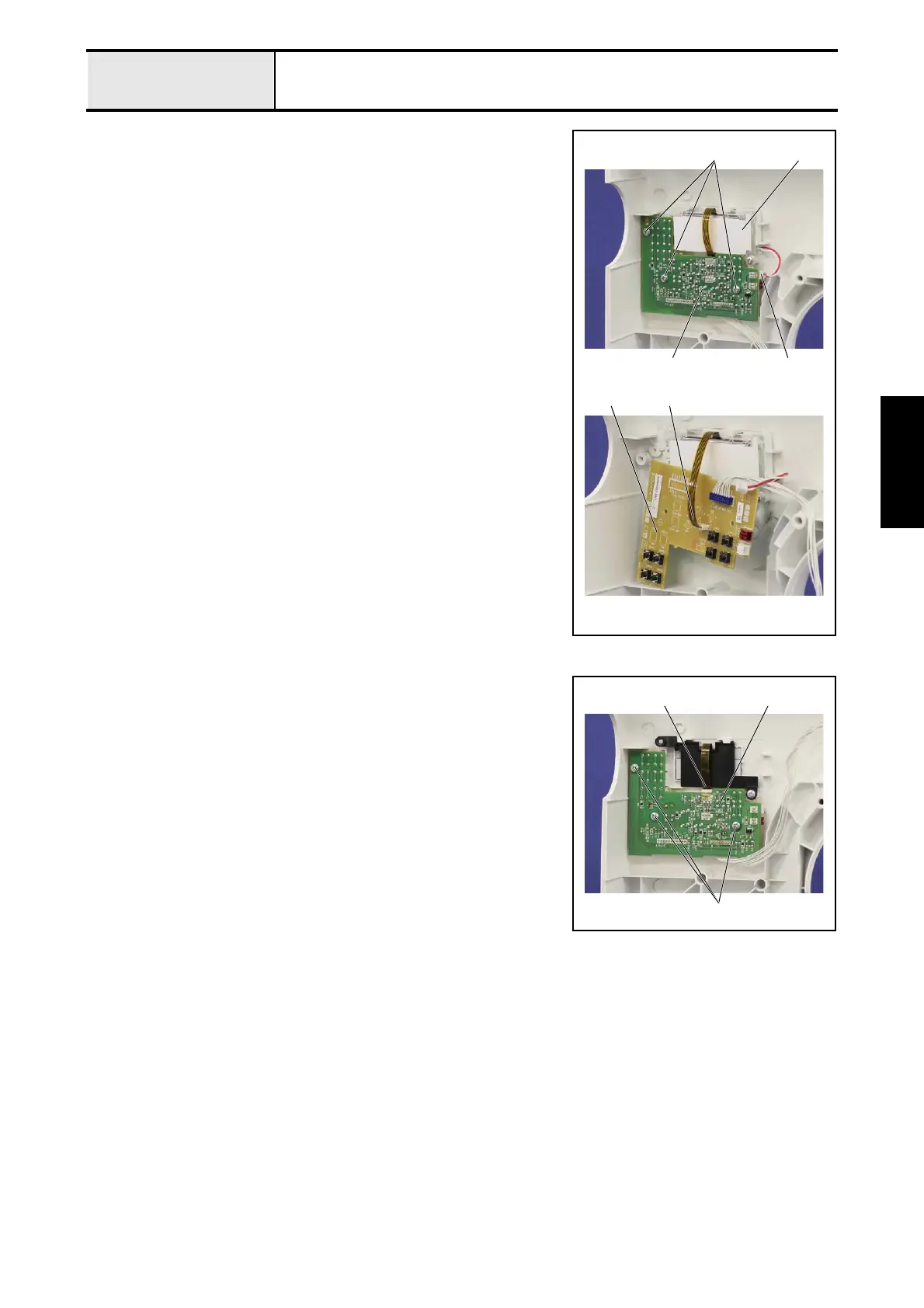

2-7-C “Curvy shape model” equipped with LCD backlight
1. Disconnect the connector 1 of the single light guide assy. 2 from the
operation PCB assy. 3.
2. Remove the 3 screws 1, and then remove the operation PCB assy. 3.
3. Disconnect the flat cable 4 of the LCD from the operation PCB assy. 3.
1
13
43
2
2-7-D “Curvy shape model” not equipped with LCD backlight
1. Disconnect the flat cable 1 of the LCD from the operation PCB assy. 2.
2. Remove the 3 screws 1, and then remove the operation PCB assy. 2.
1
1
2
