Application of Assembly

Feed and rotary module

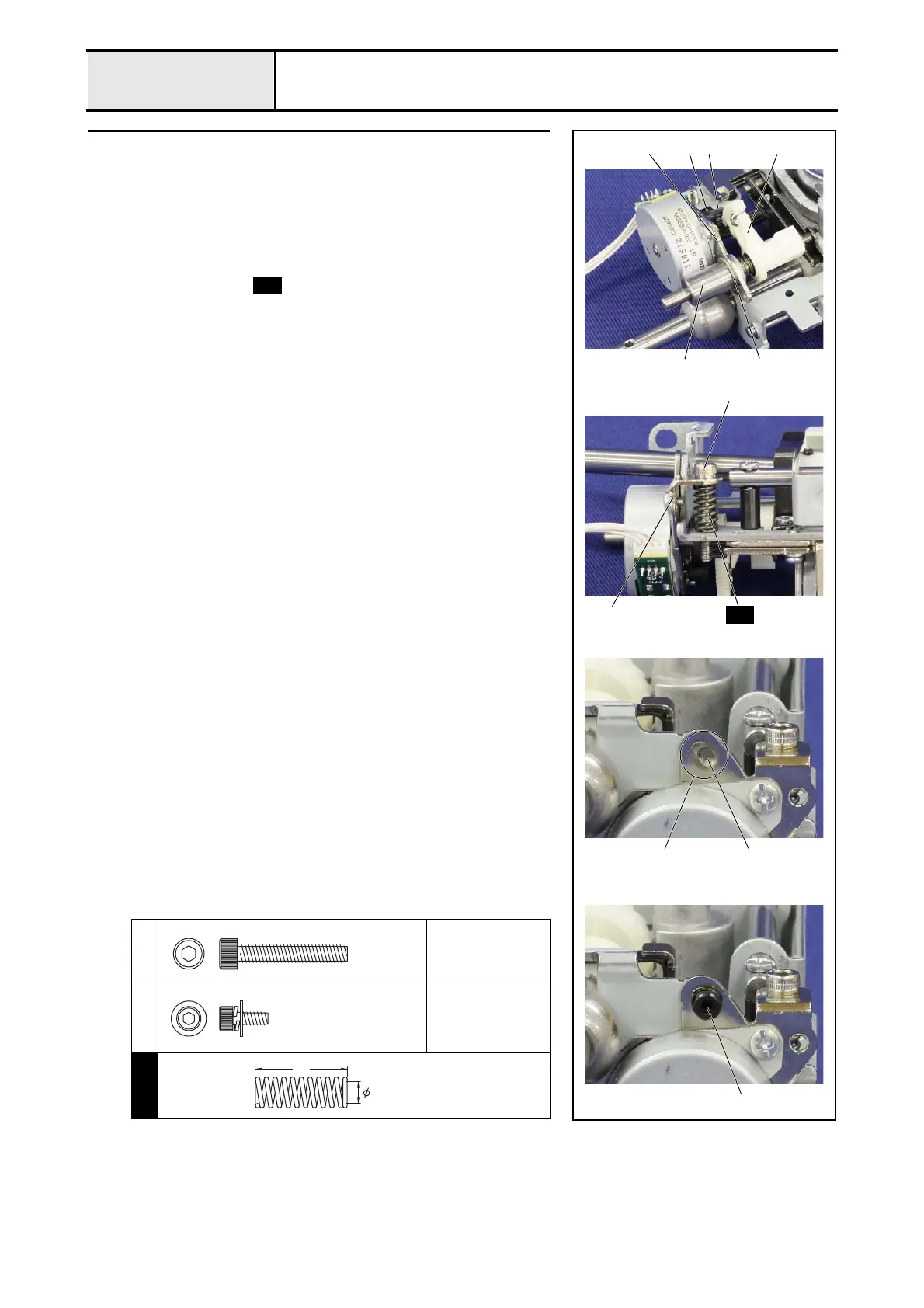

17 Attachment of FPM holder sub assy

1. Attach the rubber 2 from the FPM holder sub assy. 1.

2. Set the FPM holder sub assy. 1 to the shaft 3 of the base plate assy., and

then attach the retaining ring 10.

*Key point

• Check that the feed adjusting 4 is the upper side of the FPM

gear 5.

3. Sandwich the spring between the FPM holder sub assy. 1 and the

base plate assy., and then tighten the screw 1.

*Key point

• Tighten the screw 1 until the screw hole 6 in the base plate

assy. comes approximately to the center of the positioning

hole 7 in the FPM holder sub assy. 1.

4. Tighten the screw 2 temporarily.

*Key point

• Fully tighten the screw 2 after performing "4 - 15 Adjustment :

Feed forward/backward".

Torque

Hand start

S06

Retaining ring 10

7 6

S06

Bolt, Socket

M4X25

Screw

3X8

SPRING

XC2537***
