3 - 70

Feed and rotary module

Application of Assembly

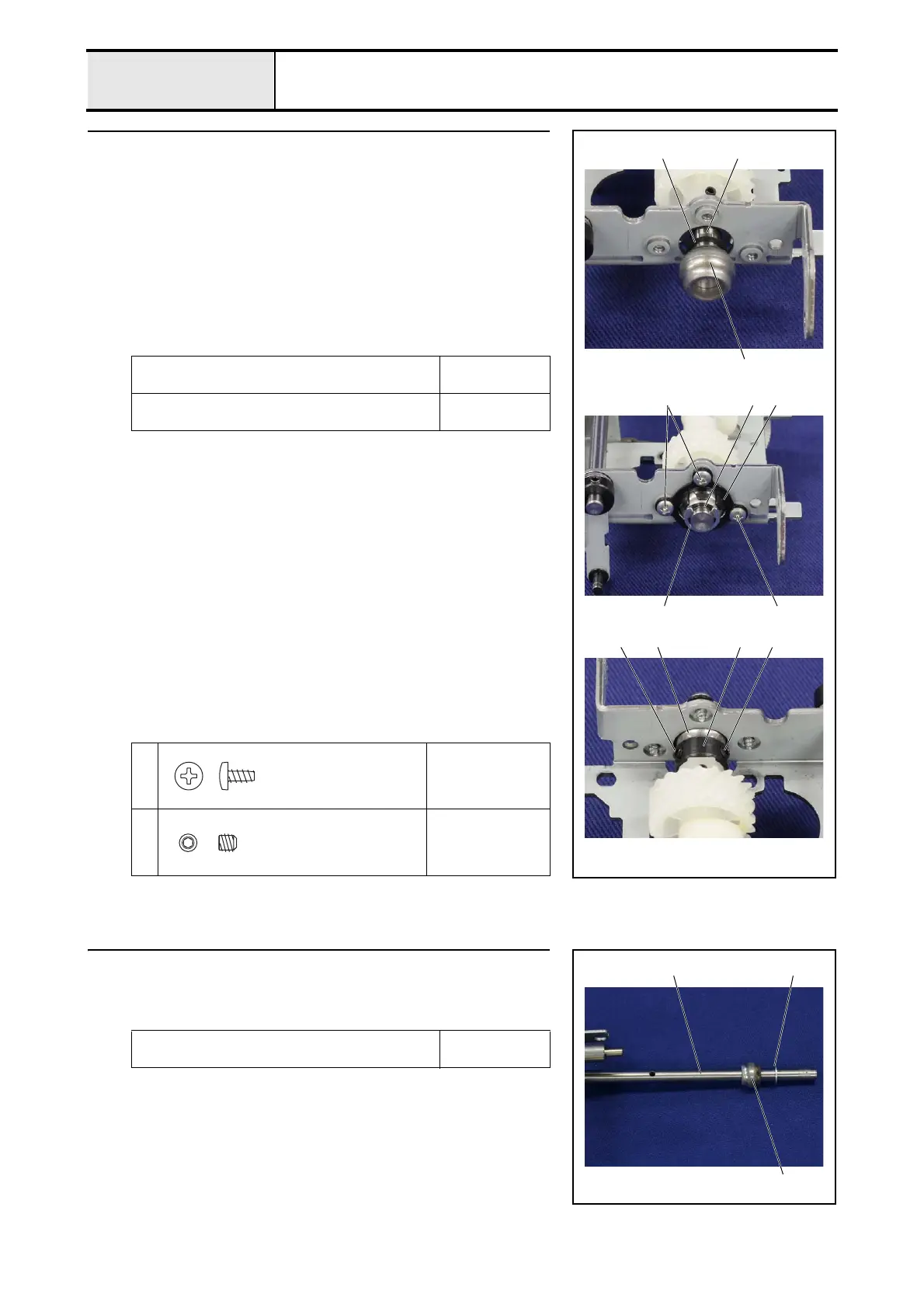

5 Attachment of Bushing presser B

1. Insert the “washer, thrust 2” and the lower shaft bushing 3 into the lower

shaft assy. 1.

2. Set the bushing presser B 4 to the base plate assy. with the 3 screws 1.

3. Insert the “washer, thrust 5” into the lower shaft assy. 1, and then attach

the retaining ring E6.

4. Sandwich the lower shaft bushing 3 with the retaining ring E6 and the set

collar 6 and then tighten the 2 screws 2.

*Key point

• Check that the lower shaft assy. 1 is not a wobble, and it

moves smoothly.

Lubricate the lower shaft bushing round surface

with FBK OIL RO 100.

1-2 drops

XC8388***

Apply MOLYKOTE EM30L to all of the teeth

around the lower shaft gear.

Small amount

XC8385***

Torque

0.39 – 0.78 N·m

Torque

0.78 – 1.18 N·m

2 1

Retaining ring E6

3 62 2

Taptite, Bind B

M3X6

Set Screw, Socket (CP)

M4X4

6 Attachment of Upper shaft bushing

1. Insert the upper shaft bushing 2 into the lower shaft assy. 1, and then

attach the retaining ring E6.

Lubricate the upper shaft bushing with the OILER.

1-2 drops

XZ0206***

Retaining ring E6
