Brother CS5055PRW - Attachment of Selecting;Manual Buttons

3 - 51
Main parts
Application of Assembly
Application
2-7 Attachment of Selecting/Manual buttons

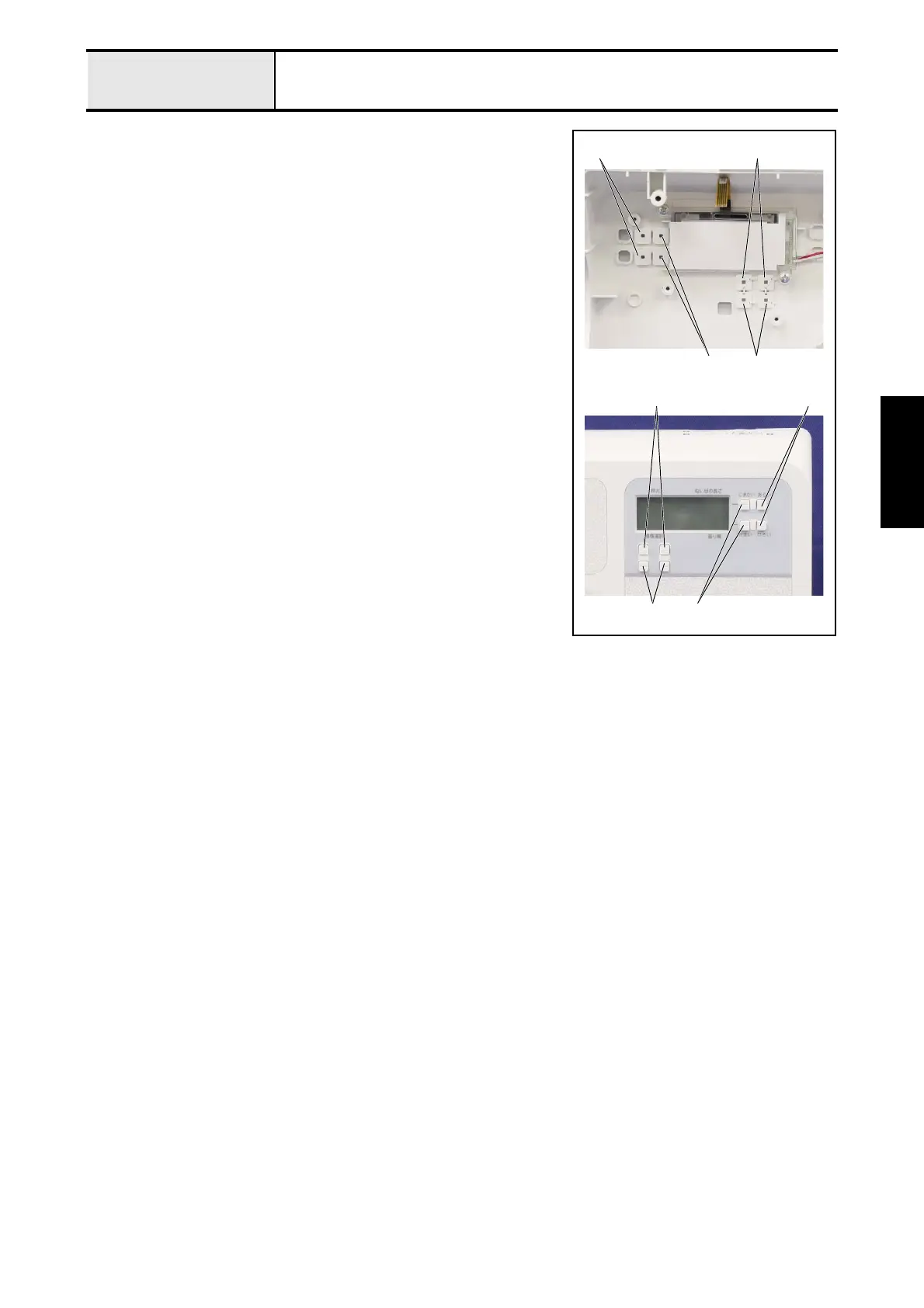

1. Set the 2 selecting button A 1, the 2 selecting button B 2, the 2 manual
button A 3 and the 2 manual button B 4 to the front cover assy..
*Note
• As for the LCD backlight PCB assy., it is not mounted by the
model.
4
3 2
1
1
2 3
4
