Brother CS5055PRW - Curvy Shape Model Equipped with LCD Backlight; Curvy Shape Model Not Equipped with LCD Backlight

3 - 50
Main parts
Application of Assembly

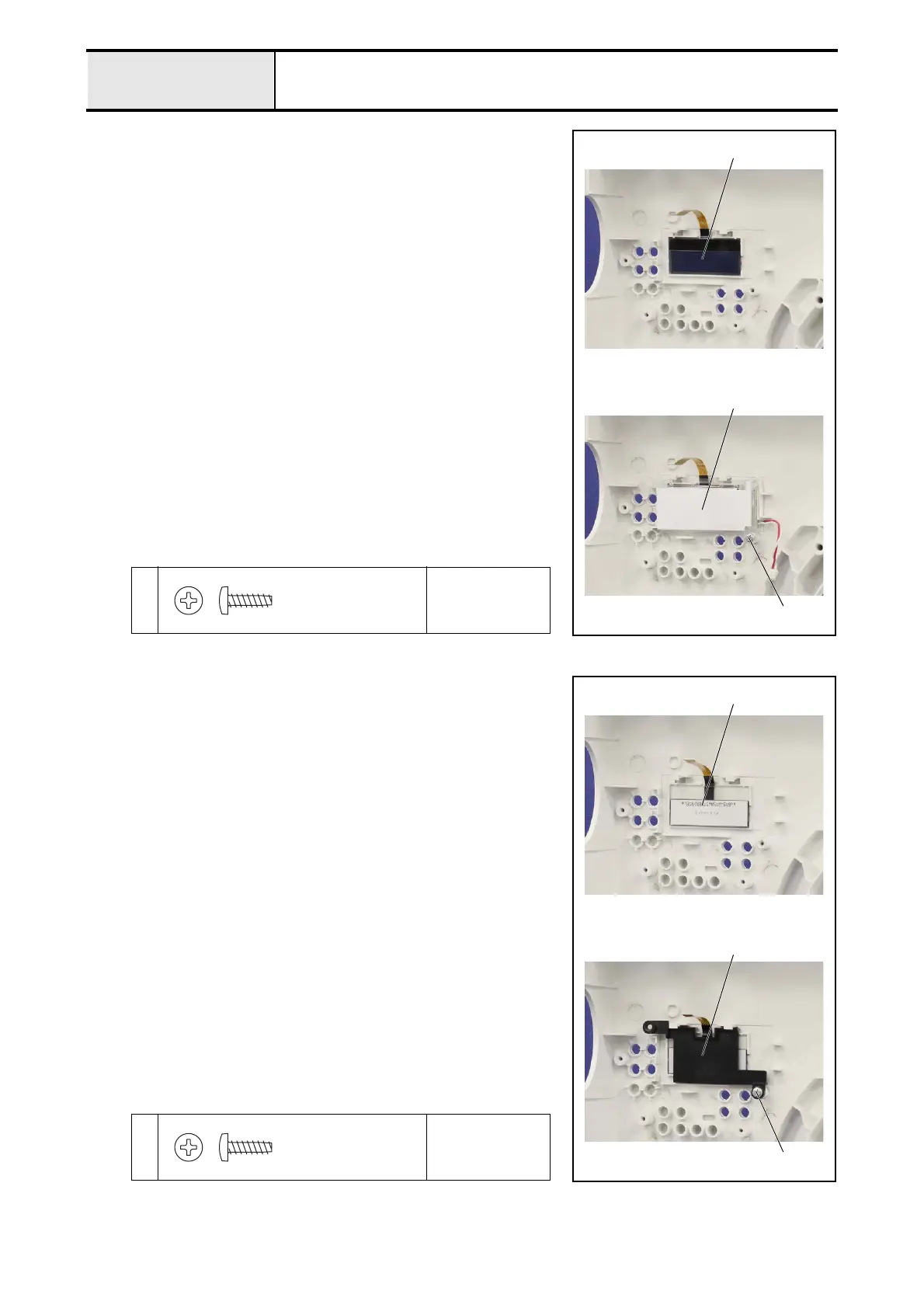

2-6-C “Curvy shape model” equipped with LCD backlight
1. Set the LCD 1 to the front cover assy..
2. Set the single light guide assy. 2 to the front cover assy. with the screw
1.
1
Torque
0.39 – 0.78 N·m
1
2
1
Taptite, Bind B
M3X10
2-6-D “Curvy shape model” not equipped with LCD backlight
1. Set the LCD 1 to the front cover assy..
2. Set the LCD holder 2 to the front cover assy. with the screw 1.
1
Torque
0.39 – 0.78 N·m
1
2
1
Taptite, Bind B
M3X10
