3 - 84

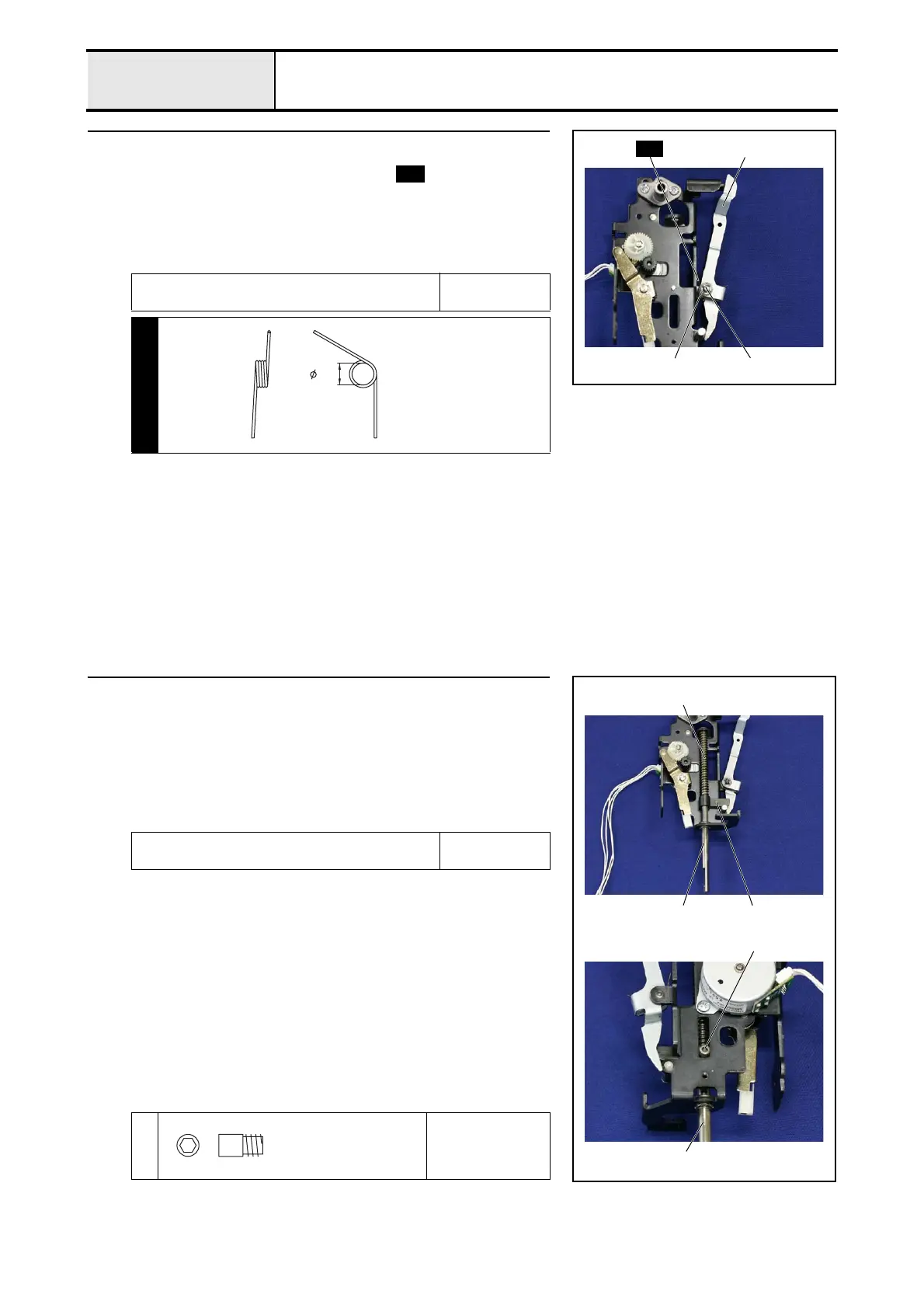

Needle-presser module

Application of Assembly

7 Attachment of Thread release lever

1. Set the thread release lever 2 and the spring to the shaft 1 of the

base holder assy., and then attach the retaining ring CS4.

*Key point

• Check that the hook of the spring is the upper side, when set it

as shown in the right figure.

Apply EPNOC AP (N) 0 to the shaft of the base

holder assy.

Small amount

XC8387***

S08

Retaining ring CS4

S08

SPRING

XC4904***

5.0

8 Attachment of Presser bar

1. Insert the base holder assy., the presser bar clamp 2, the spring 3, and the

base holder assy. from the bottom of the presser bar 1, and then tighten

the screw 1 temporarily.

*Key point

• Fully tighten the screw 1 after performing "4-14 Adjustment :

Presser bar height and parallelism".

Apply FBK OIL RO 100 to the tip of the presser

bar.

Apply liberally

XC8388***

Torque

Hand start

Screw stud
