6 - 3
Special Instructions of Wiring
Special Instructi
ons
of Wiring

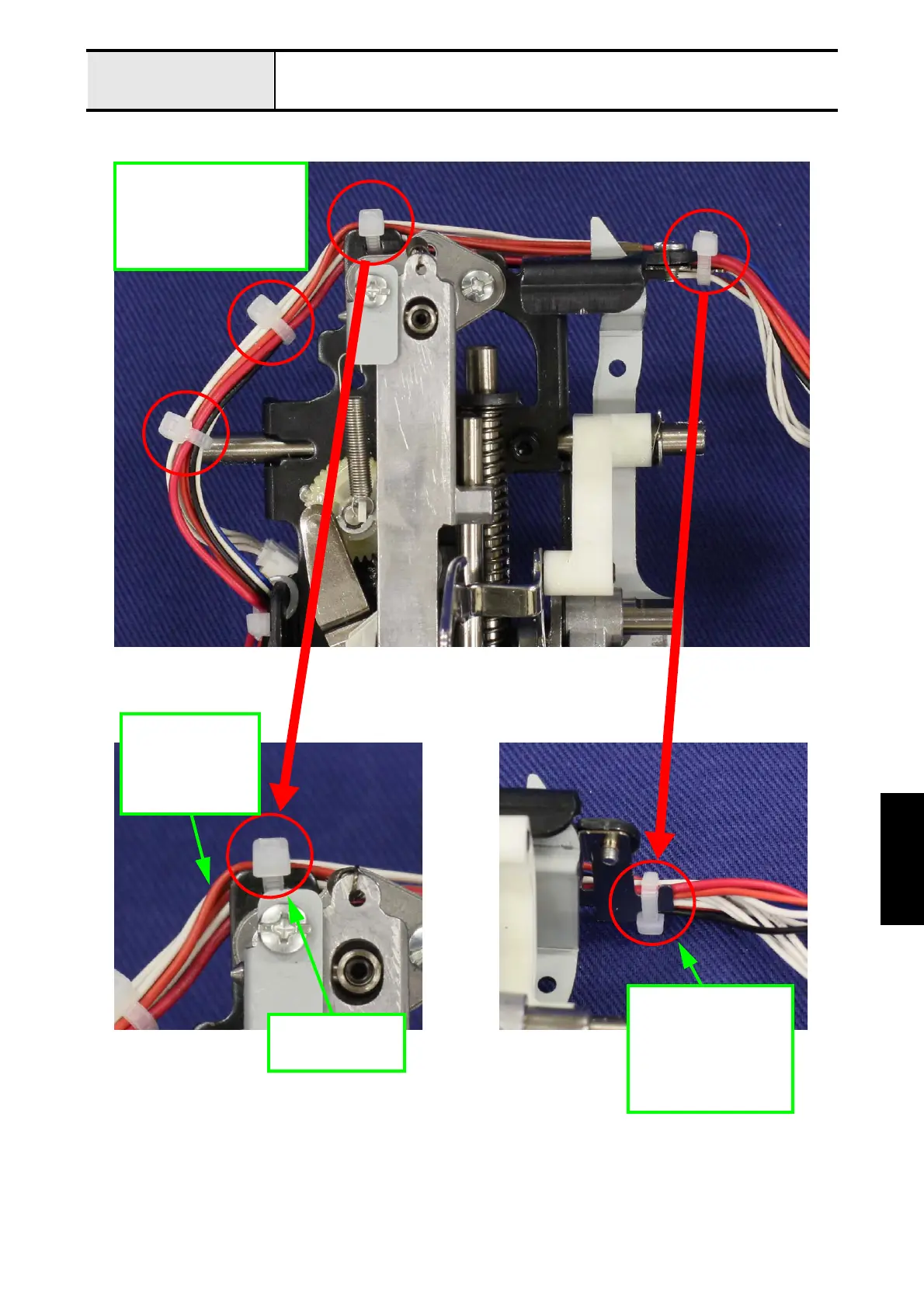

Needle bar / Presser module wiring
2.
Wiring on upper side of needle bar / presser module
Pass a band through
the hole of base holder
and secure the lead
wires with the band.
All lead wires
should pass
back side of the
module.
Secure the lead
wires to depressed
portion of presser
switch holder with
the band.
Cut end should
face front.
