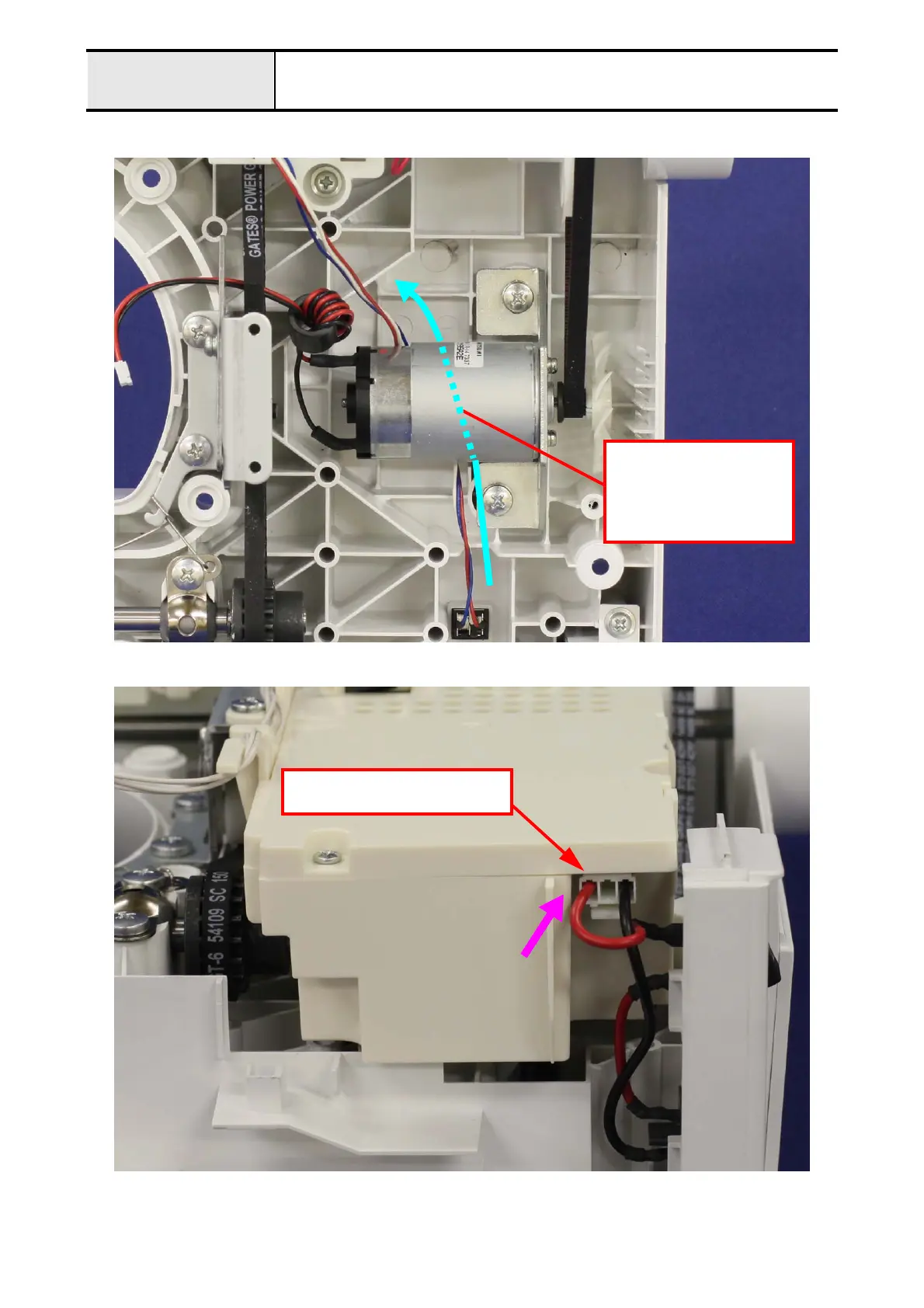

Special Instructions of Wiring Power supply unit wiring
1. Wiring of foot controller jack assy.
2. Wiring on lower side of power supply unit
Pass the lead wires of
foot controller jack
assy. between the
main motor and cover.
Surely insert the connector.
