2 - 8
Electrical parts and motors
Basics of Disassembly

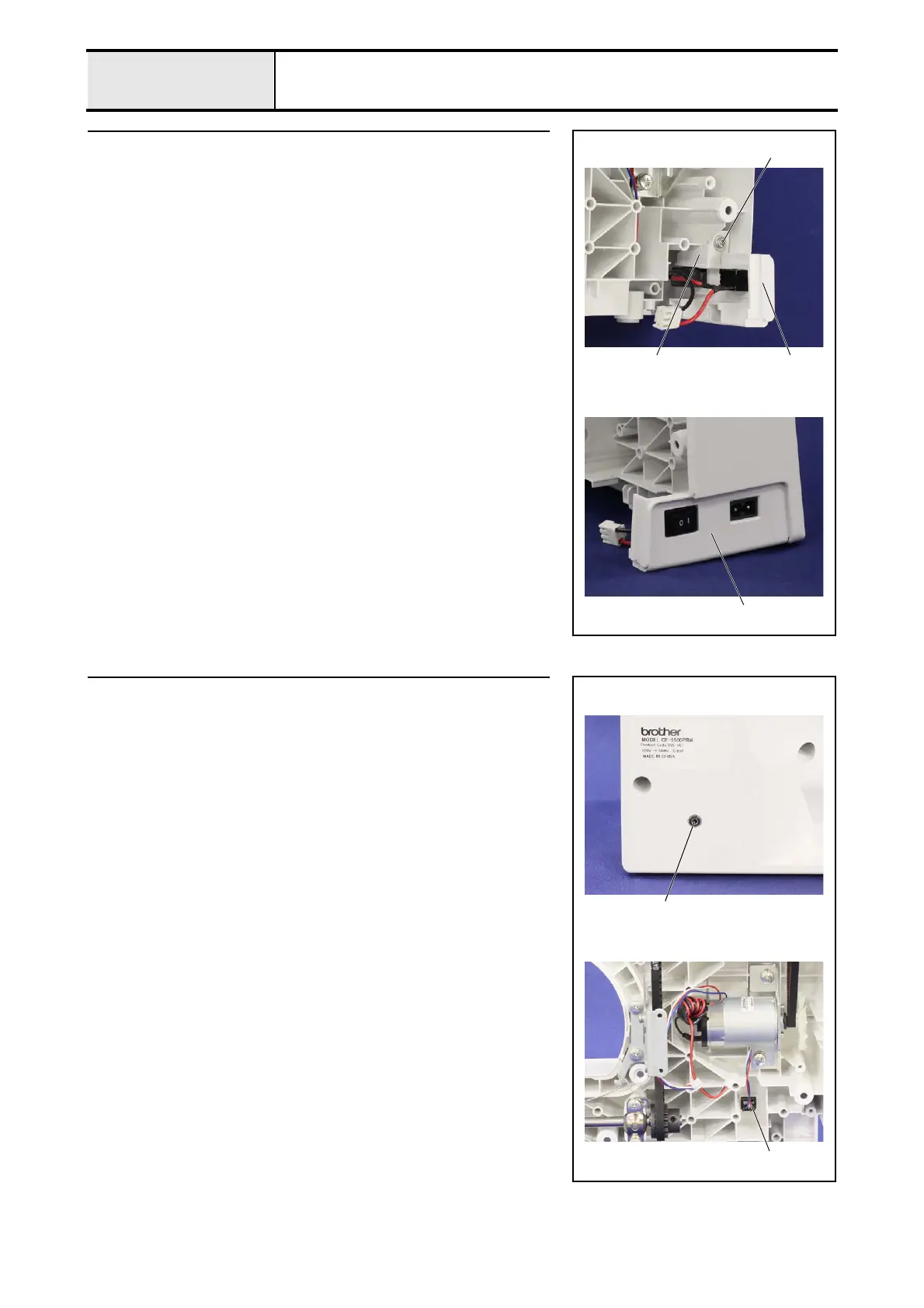

4 Removal of Inlet assy
1. Remove the screw 1, and then remove the inlet presser 1 and the inlet
assy. 2.
2
1
1
2
5 Removal of Foot controller jack assy
1. Remove the nut F 1, and then remove the foot controller jack assy. 2.
2
1
