2 - 13
Feed mechanism
Basics of Disassembly
Basics

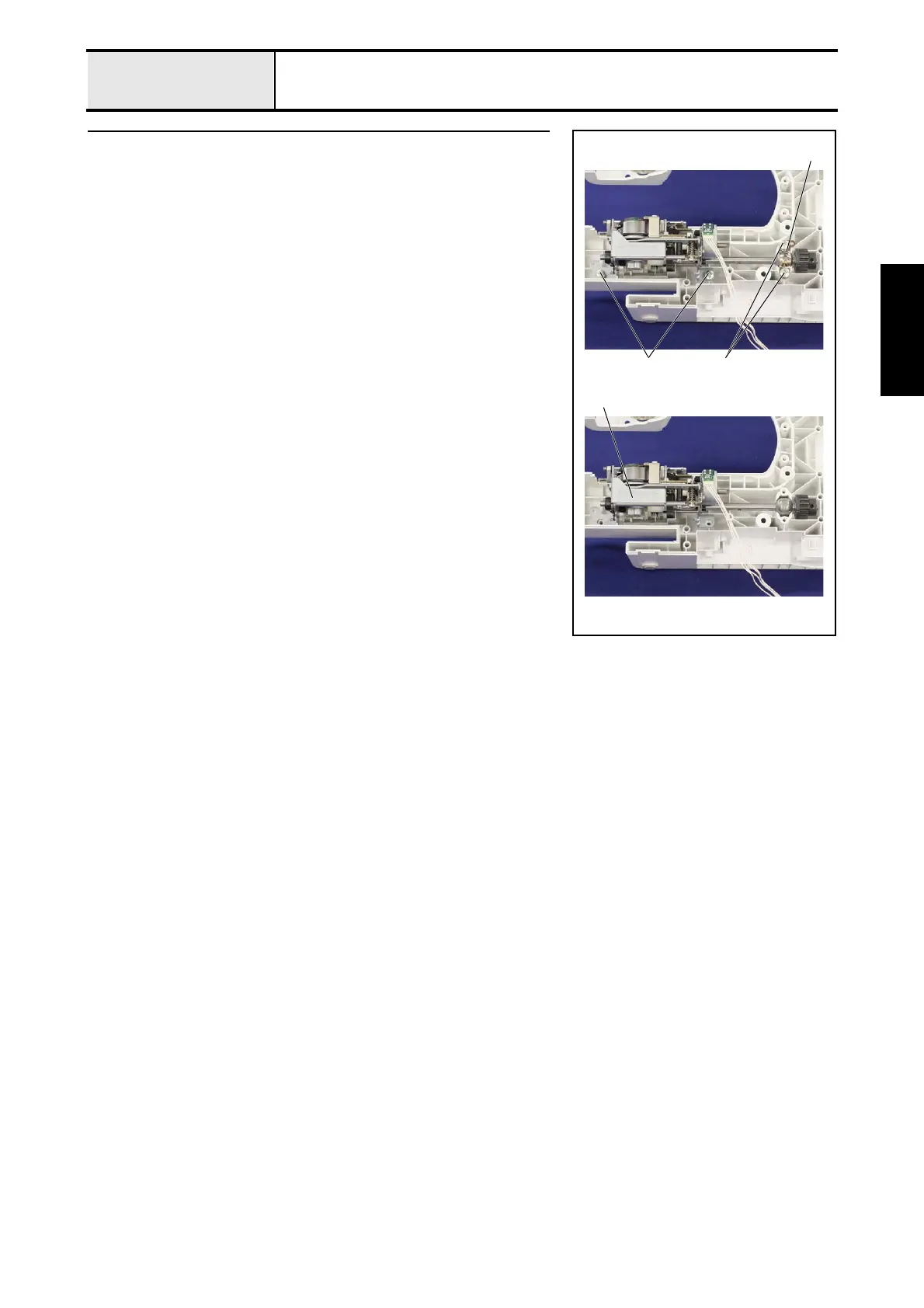

1 Removal of Feed module
1. Remove the 2 screws 1, and then remove the upper shaft bearing presser
1.
2. Remove the 2 screws 2, and then remove the 2 washer EX tooth 5 2 and
the feed module 3.
→ Refer to 3 - 23 "Feed and rotary module".
3
1
1
2, 2
