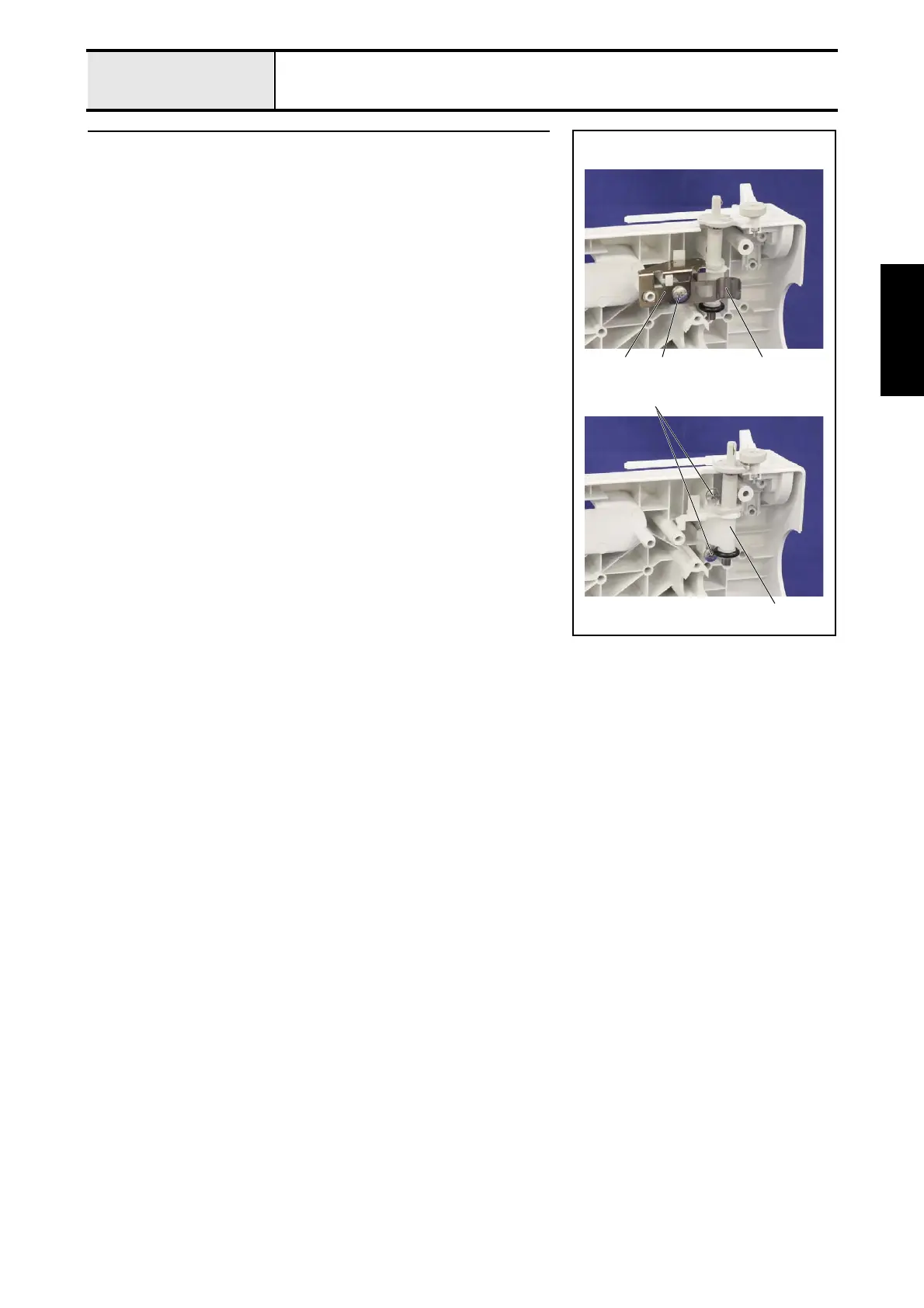

Bobbin winder mechanism
Basics of Disassembly
Basics
1
Removal of Bobbin winder assy
1.
Remove the screw
1
, and
then remove the bobbin winder shaft stopper
1
and the bobbin winder shaft spring
2
.
2.
Remove the 2 screws
2
, and then remove the bobbin winder assy.
3
.
→
Refer to 3 - 21 "Bobbin winder mechanism".
2
3
1
1
2
29
31
