Brother DCP 8085DN

4-7
Confidential

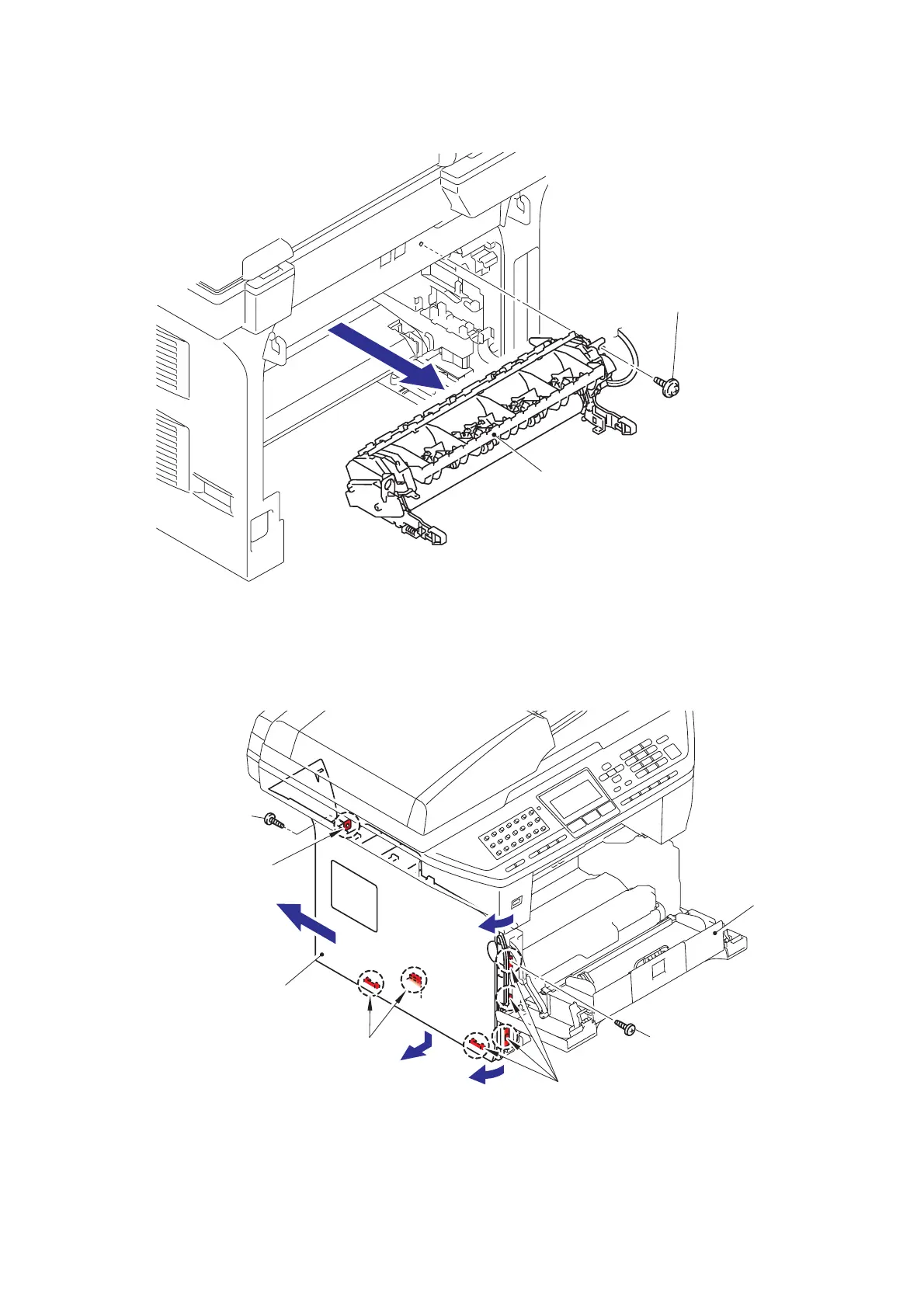

(12) Remove the pan B M4x20 Taptite screw to remove the Fuser unit.
Fig. 4-8
(13) Open the Front cover, remove the two bind B M4x12 Taptite screws, and then remove
the Side cover L by releasing the Hooks in the order of 13a to 13d.
Fig. 4-9
Taptite pan B M4x20
Fuser unit
Taptite bind B M4x12
Taptite bind B M4x12
Front cover
Hooks
Hooks
Hook
Side cover L
13a
13b
13d
13c
