Brother DCP 8085DN

4-8
Confidential

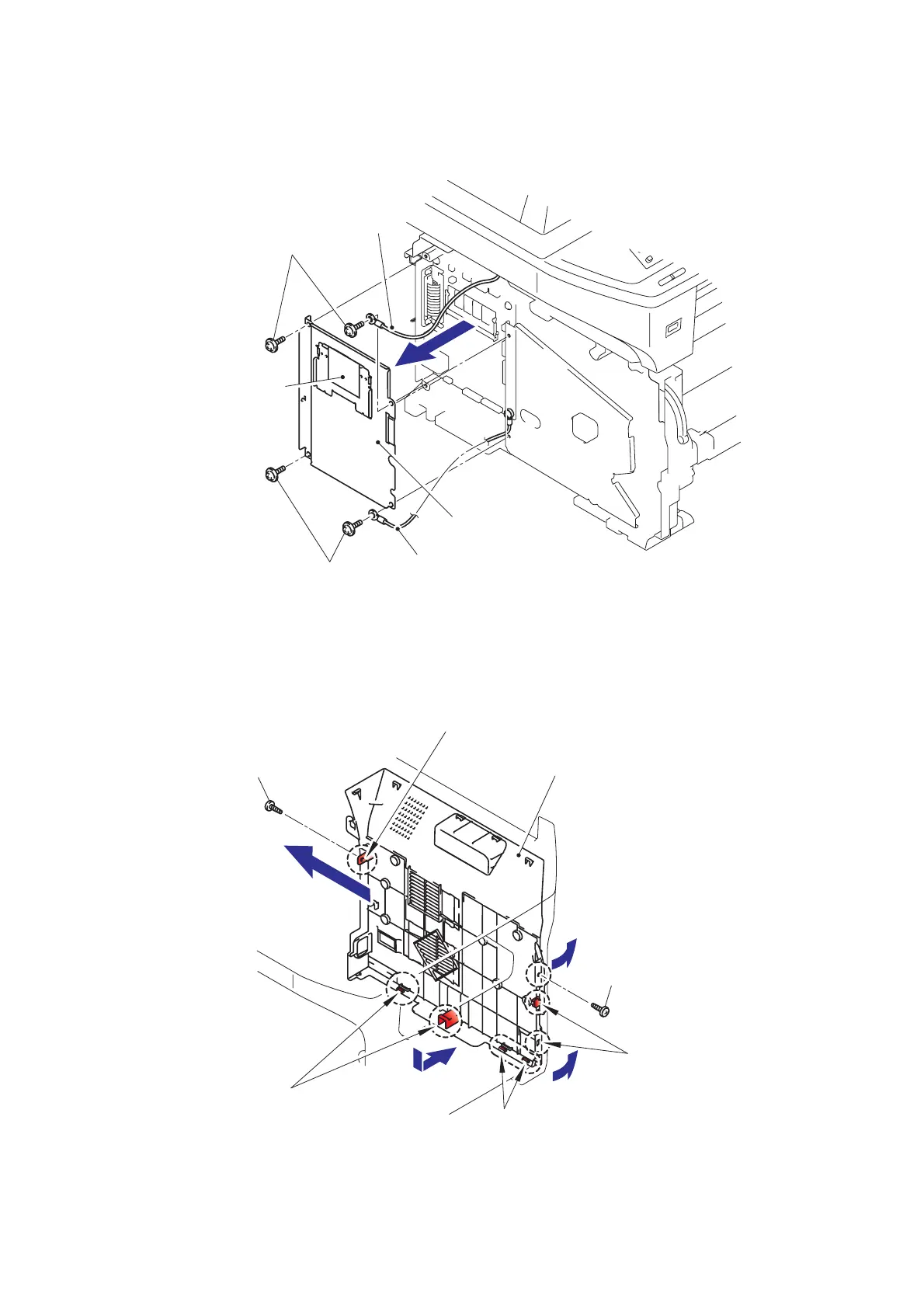

(14) Remove the four cup S M3x6 SR Taptite screws to remove the Shield cover ASSY and
the two FG harnesses.
Fig. 4-10
(15) Remove the two bind B M4x12 Taptite screws, and then remove the Side cover R by
following the direction from 15a to 15d.
Fig. 4-11
Taptite cup S M3x6 SR
Taptite cup S M3x6 SR
FG harness
FG harness
Seal
Shield cover ASSY
Taptite bind B M4x12
Hook
Hooks
Hooks
Side cover R
Hook
Taptite bind B M4x12
15d
15c
15b
15a
