Brother DCP 8085DN

4-9
Confidential
(16) Remove the cup S M3x6 Taptite screw, remove the ADF FG harness and FB FG
harness.
(17) Disconnect the Connector from the Driver PCB.
(18) Disconnect the two Connectors from the Main PCB.

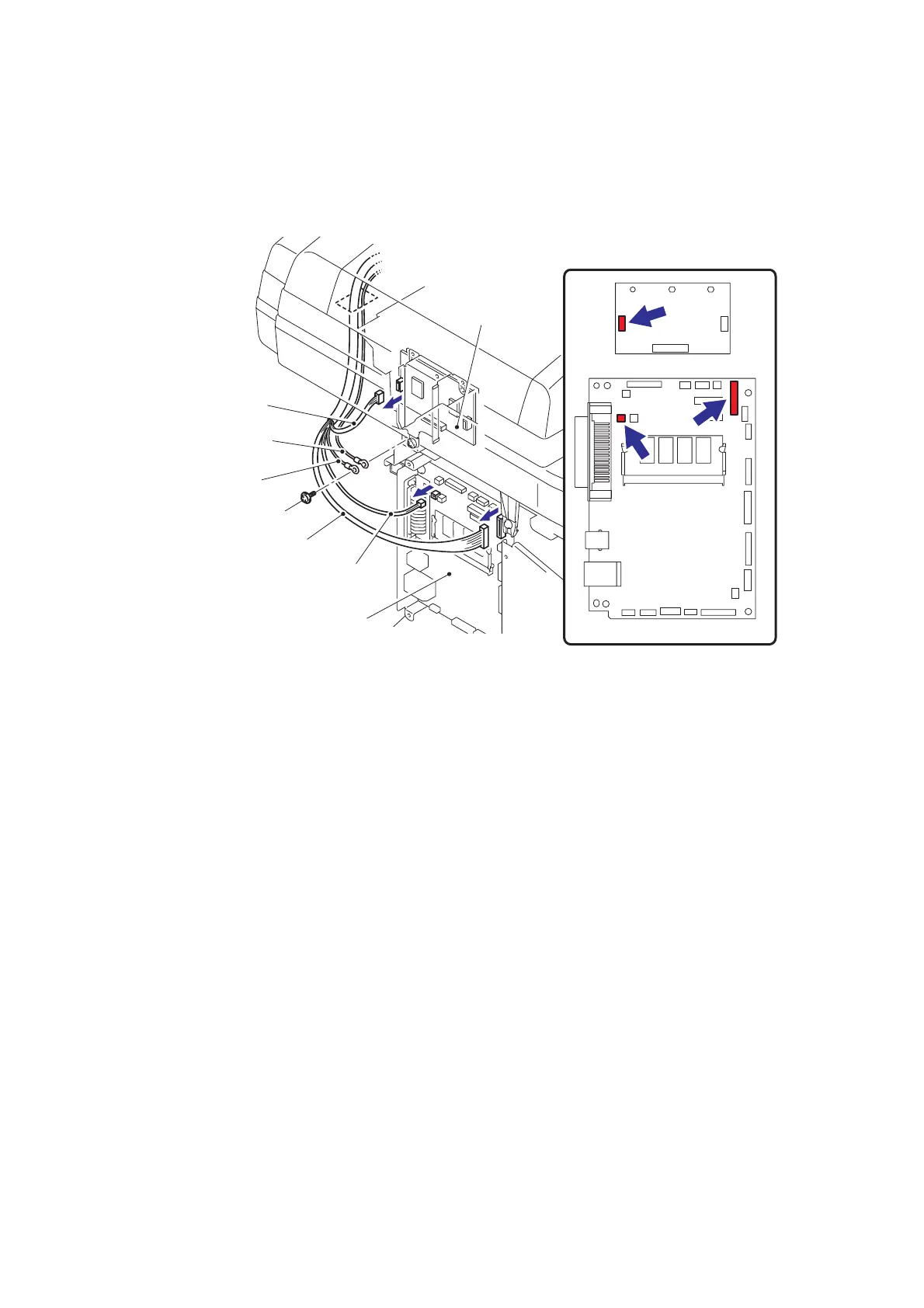

Fig. 4-12
Driver PCB
Main PCB
Main PCB
<Left side>
Connector
(ADF motor harness)
Connectors
(ADF relay harness)
Connector (FB cover sensor)
FB FG harness
Taptite cup S M3x6
ADF FG harness
