Brother DCP 8085DN

4-10
Confidential

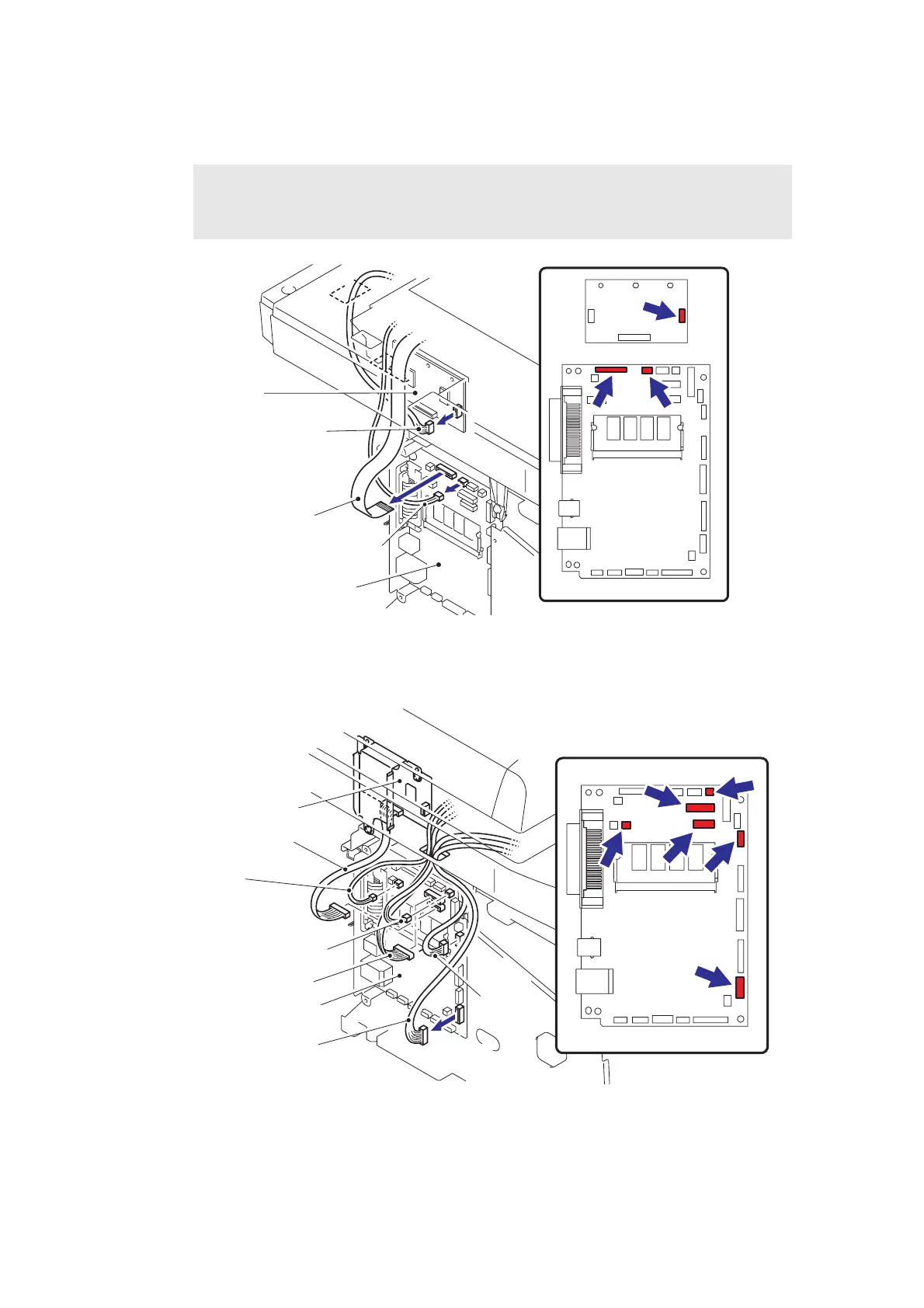

(19) Disconnect the connector of the Scanner motor harness from the Driver PCB.
(20) Disconnect the connectors of the Photo interrupter and FFC cable from the Main PCB.
Fig. 4-13
(21) Disconnect the six connectors of the each harness from the Main PCB.
Fig. 4-14
Note :
• After disconnecting flat cable(s), check that each cable is not damaged at its end or
short-circuited.
Driver PCB
Driver PCB
Scanner motor harness
FFC cable
Photo interrupter
Main PCB
Main PCB
Driver PCB
Battery harness
Speaker harness
NCU harness
USB HOST
harness ASSY
Driver harness
Panel PCB harness
Main PCB
Main PCB
