Brother DCP 8085DN

4-11
Confidential

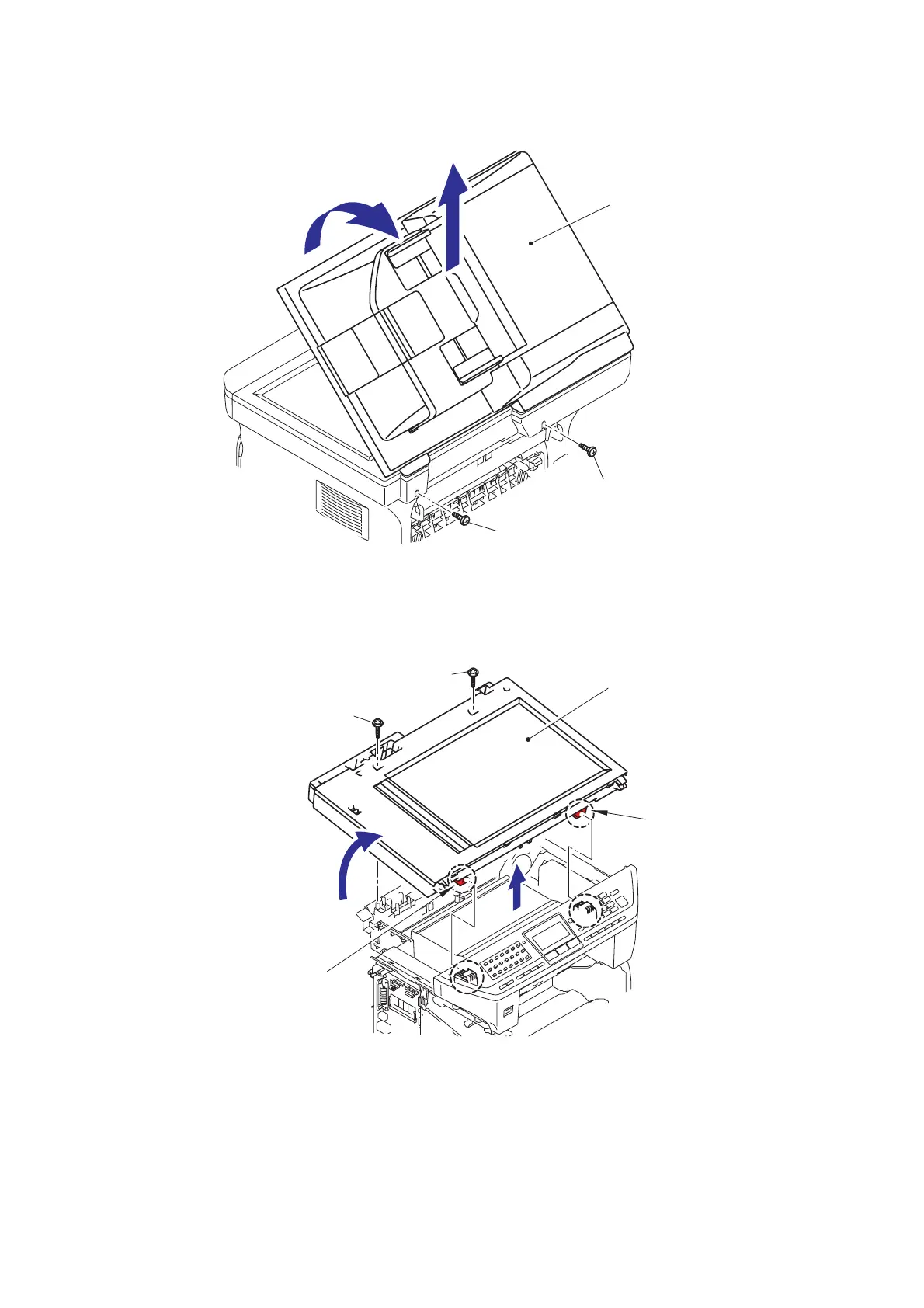

(22) Remove the two bind B M4x12 Taptite screws, and then remove the Document scanner.
Fig. 4-15
(23) Remove the two cup B M4x20 Taptite screws. Lift up the rear of the Scanner unit slightly
and remove the Scanner unit.
Fig. 4-16
Document scanner
Taptite, bind B M4x12
<Back side>
Taptite, bind B M4x12
Scanner unit
Taptite cup B M4x20
Taptite cup B M4x20
23a
23b
Hook
Hook
