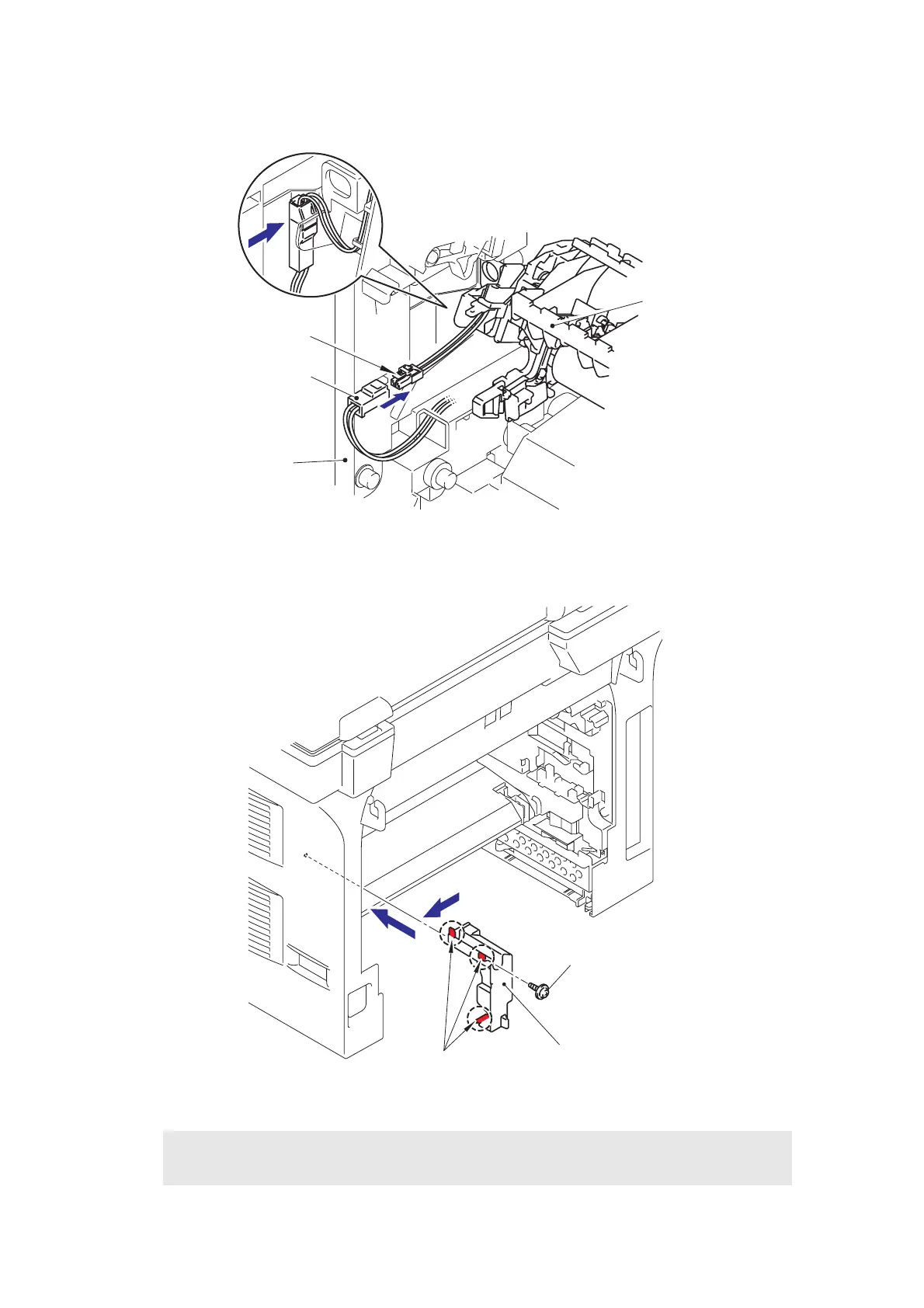

(26) Install the Heater terminal.
Fig. 4-40
(27) Secure the FU harness cover 1 with the pan B M4x20 Taptite screw.
Fig. 4-41
Note :
• Do not sandwich the harness of the heater terminal by the FU harness cover 1.
Hook
Frame R
Heater terminal
Fuser unit
27b
27a
Hooks
FU harness cover 1
Taptite pan B M4x20
