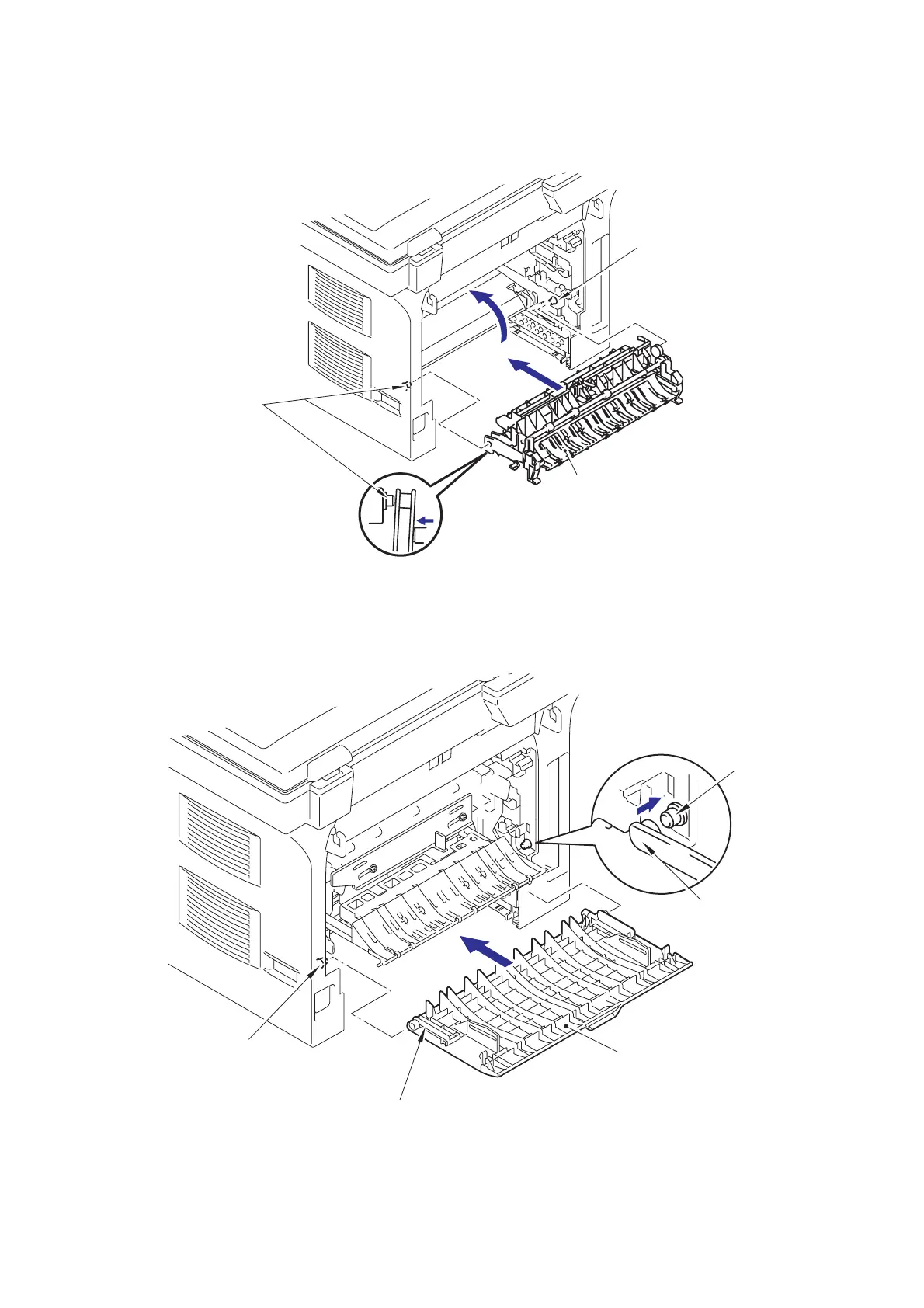

(28) Catch the Arm of the Rear chute ASSY onto the Pin of the machine body and install the
Rear chute ASSY.
Fig. 4-42
(29) Catch the Arm of the Back cover onto the Pin of the machine body and install the Back
cover.
Fig. 4-43
28c
28b
28a
Pin
Pin
Rear chute ASSY
29a
29b
Back cover
Pin
Arm
Arm
Pin
