< Installing Procedure >
(1) Install the Roller holder ASSY.

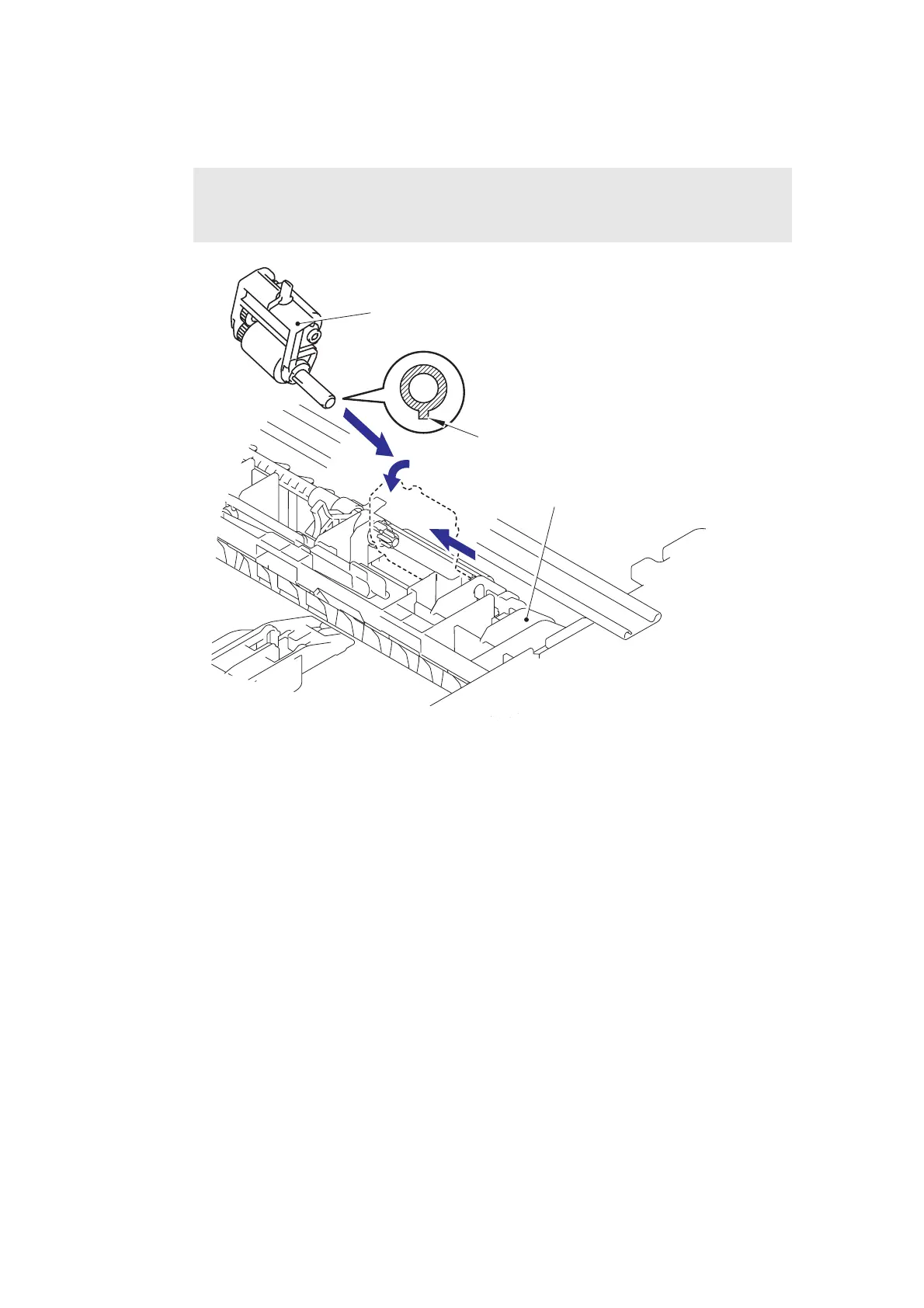

Fig. 4-48
Note :
• When assembling the roller holder ASSY, align the section "A" on the shaft of the
roller holder ASSY with the hole on the paper feed frame.
1c
1b
1a
Roller holder ASSY
"A"
Paper feed frame
