4-34
Confidential
(2) Assemble the Lift arm onto the Pin of the Roller holder ASSY.
(3) Place the Printer on its base.

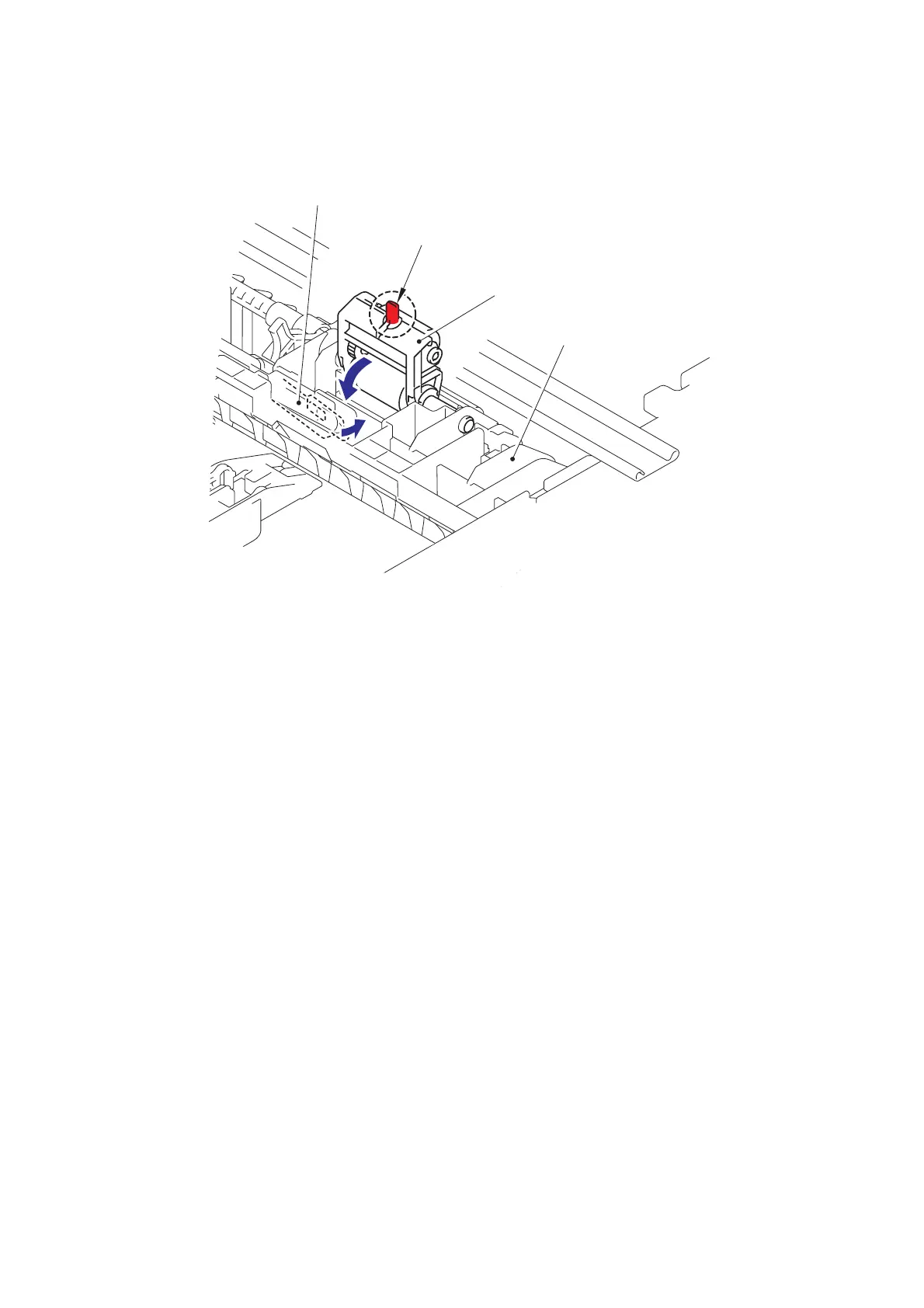

Fig. 4-49
(4) Install the DX feed ASSY or DX blank cover, and install the Drum/toner ASSY.
2a
Lift arm
Pin
Roller holder ASSY
Paper feed frame
2b2b
